Introduction
Methods
Electronic searches

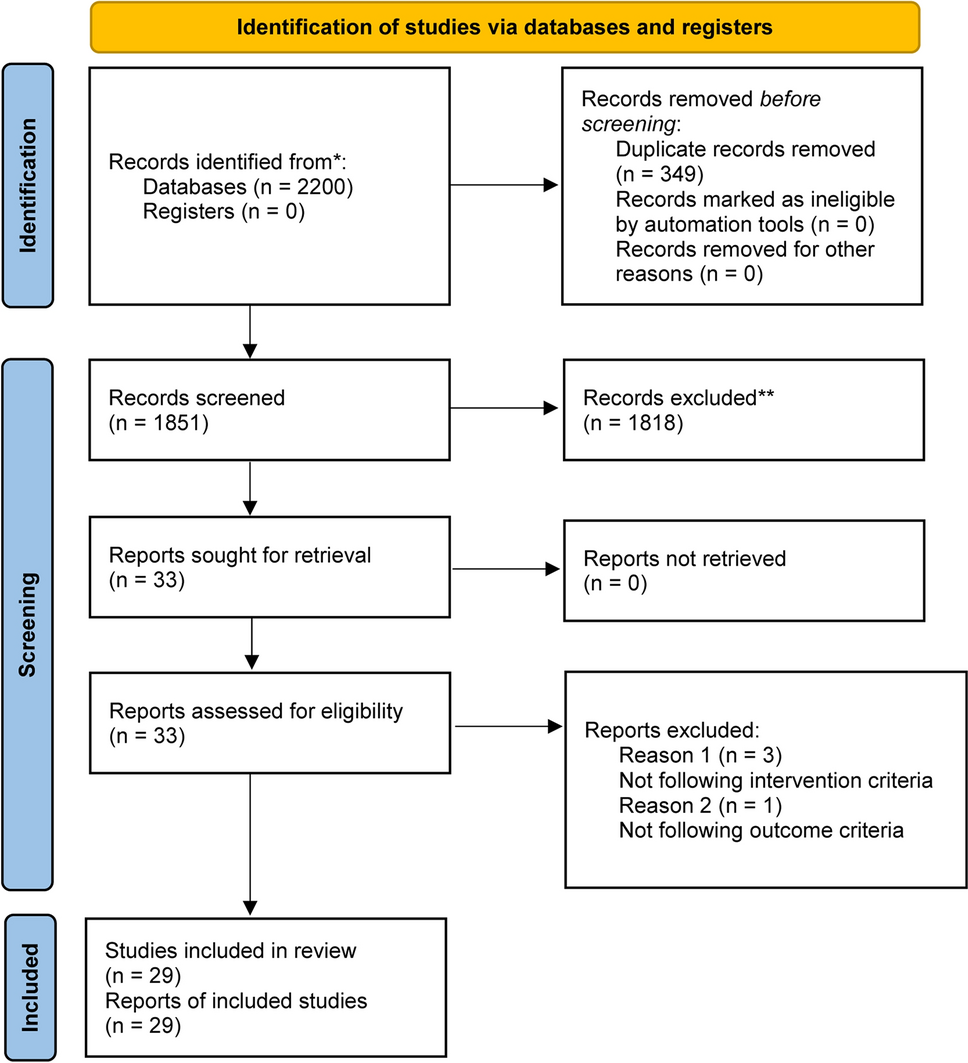

Study selection
Outcomes
Data extraction and management
Assessment of risk of bias in included studies
Data synthesis and statistical analysis
Results
Characteristics of included studies
Author, Ref. (country) | Groups characteristic | n | Interventions | Outcome measures | Training type | Conclusions |
---|---|---|---|---|---|---|
Internal diseases | ||||||
Cargnin et al. [30] (Brazil) | (1) Patients with HVRS + IMT-G (EG) (2) Patients with HVRS + IMT-PG (CG) | (1) 13 (2) 12 | The groups were treated equally, according to routines of the post-operative heart surgery unit at the hospital. The patients were followed daily during the hospital stay. Prior to hospital discharge, patients received a training orientation and a diary in which to record the home training sessions. After discharge, individuals returned weekly to the hospital to measure inspiratory muscle strength. On the same day, a training load adjustment was made for the IMT-G | Spirometry, MIP, 6MWT, SF-36 | Three days after HVRS, participants received a pressure linear load device for IMT. The device was to be used to perform 30 ventilatory cycles, twice/day, 7 days/week, for 4 weeks. During training, the participants were instructed to maintain diaphragmatic breathing. For subjects in IMT-G, the inspiratory load was adjusted to 30% of MIP. This was adjusted weekly so that the relative load was kept at 30% of MIP during the IMT period | IMT increased inspiratory muscle strength and lung function values, both returning to the pre-operative level, and improved the functional capacity to levels above the pre-operative in patients undergoing HVRS |
Dall’Ago et al. [31] (Brazil) | (1) Patients with CHF + IMT (EG) (2) Patients with CHF + P-IMT (CG) | (1) 16 (2) 16 | Patients received either IMT or P-IMT for 30 min 7 times per week, for 12 weeks using the Threshold Inspiratory Muscle Training device. The P-IMT followed the training schedule with no respiratory load | FVC, FEV-1, Pthmax/PImax, 6MWT, Minnesota Living With Heart Failure Questionnaire, Pthmax, VO2peak, VE peak, R peak | During training, patients were instructed to maintain diaphragmatic breathing, with a breathing rate at 15 to 20 breaths/min. For the IMT group, inspiratory load was set at 30% of maximal static inspiratory pressure, and weekly training loads were adjusted to maintain 30% of the PImax | A short-term, home-based program of IMT results in marked improvement in inspiratory muscle strength and endurance, as well as in quality of life, in CHF patients with inspiratory muscle weakness |
Miozzo et al. [32] (Brazil) | (1) Patients who underwent CABG + AE + IMT (EG) (2) Patients who underwent CABG + AE (CG) | (1) 13 (2) 11 | Patients allocated to the AE + IMT performed a protocol of high-intensity IMT followed by an aerobic exercise protocol, for 12 weeks. Patients allocated to the CG performed the same aerobic exercise protocol performed in the EG, during the same 12 weeks. These patients did not perform the high-intensity IMT protocol | 6MWD, PeakVO2, MIP, MEP, SRT, SF-36 | The high-intensity IMT protocol was performed with a linear pressure loading device. IMT was performed for 12 weeks and the protocol consisted of five sets with 10 repetitions each until the 8th week and progression of the number of sets and repetitions from the 8th to 12th week | There was an improvement of all outcomes in both groups, but high-intensity IMT was not able to provide additional benefit in most of the outcomes, being observed only in inspiratory muscle strength |
Palau et al. [33] (Spain) | (1) Patients with HFpEF + IMT + standard care (EG) (2) Patients with HFpEF + standard care alone (CG) | (1) 14 (2) 12 | Patients in the EG group performed an IMT using a threshold inspiratory muscle trainer, and were instructed by a therapist and educated to maintain diaphragmatic breathing during the training period. Patients in the CG were checked weekly by a respiratory therapist who measured their MIP each time | 6MWT, peak VO2, VO2 at anaerobic threshold, VE/VCO2 slope, MIP, Minnesota Living With Heart Failure Questionnaire | Patients allocated to the IMT arm were instructed to train at home twice a day, for 20 min during 12 weeks using a threshold inspiratory muscle trainer. The subjects started breathing at a resistance equal to 25–30% of their MIP for 1 week. The resistance was then modified each session according to the 25–30% of their MIP measured | A 12- week home-based IMT intervention in HFpEF patients with reduced aerobic capacity and preserved inspiratory muscle strength was associated with significant and clinical relevant improvement in exercise capacity and QoL |
Sadek et al. [34] (Lebanon) | (1): CHF patients + HI-AIT (2): CHF patients + IMT (3): CHF patients + combined training ( HI-AIT & IMT) (4): CHF patients + no rehabilitation | (1) 13 (2) 12 (3) 12 (4) 13 | -Control Group: no treatment -AIT Group: aerobic training -IMT Group: 20 min of inspiratory muscle training using Power Breathe device -AIT&IMT Group: combined two modalities (aerobic training followed by inspiratory training, with 5 min rest between) | -Pulmonary function test: FEV1, FVC -6MWT -Quality of life: MLWHF -Respiratory function: MIP, MEP, SMIP, MET | 3 sessions/week, for 12 weeks AIT training: 4 × 4 min at 60% to 90% of MHR, 5 × 2 min at 50% of the maximum intensity of the workload IMT training: 20 min of training using Power Breathe device. The device strengthened the breathing muscles (diaphragm and intercostals) The breathing rate: 15 to 20 breaths per minute The training load was set at 60% of MIP | The combination of the HI-AIT and the IMT resulted in additional benefits in respiratory muscle function, exercise performance, and quality of life compared to that of HI-AIT or IMT alone IMT was better than control n all outcome |
Saglam et al. [35] (Turkey) | (1) PAH patients + IMT (2) PAH patients + sham IMT protocol | (1) 14 (2) 15 | -Group 1 (Training group): IMT program -Group 2 (Control group): sham IMT program | -Functional capacity: 6MWT -Respiratory muscle strength: MIP, MEP, peak expiratory flow -Pulmonary function: FEV1, FVC -Quality of life: NHP -Fatigue: FSS -Dyspnea perception: MMRC dyspnea scale | Patients were trained using an inspiratory threshold-loading device. 30 min/day, 7 days/week, for 6 weeks The Training Group received IMT at 30% of MIP. The MIP was adjusted weekly The Control Group received sham IMT at a fixed workload of 10% of MIP | IMT promoted significant improvements in: -Respiratory muscle strength -Functional capacity IMT training reduced: -Dyspnea during activities of daily living -Fatigue |
Savci et al. [36] (Turkey) | (1) CABG patients + usual care + IMT (2) CABG patient + usual care | (1) 25 (2) 25 | -Intervention Group = usual care + IMT -Control Group = usual care | -Functional capacity: 6MWT -Respiratory muscle strength: MIP, MEP (cmH2O) -Pulmonary function: FEV1, FVC, FEV 1/FVC -Quality of life: NHP -Anxiety and Depression: HADS | The Control Group: usual care (mobilization, active exercises of upper and lower limbs, chest physiotherapy) The Intervention group: in addiction to usual care, had IMT under the supervision of a physical therapist For 30 min, 2times/day, for 10 days They used a threshold-loading device: from 15 to 45% | IMT results in faster recovery of inspiratory muscle strength, functional capacity, intensive care unit stay, quality of life and psychosocial status after CABG |
Winkelmann et al. [37] (Brazil) | (1) Patients with CHF and IMW + AE + IMT (2) Patients with CHF and IMW + AE | (1) 12 (2) 12 | -AE Group: aerobic exercise training -AE + IMT Group: aerobic exercise training + IMT | -Functional capacity: 6MWT -Respiratory muscle strength: PImax, PEmax -Pulmonary function: VO2peak, VCO2peak, Vepeak, OUES -Quality of life: MLWHF | The IMT inspiratory exercise by using Threshold equipment for 30 min, 7 times per week, with an inspiratory load at 30% of PImax Aerobic training: consists of cycle exercise (3 sessions/week) at a cadence of 60 rpm. During the first 2 weeks, the duration of the exercise is 20 min, and 5 min are added every 2 weeks, until the exercise reaches 45 min Both treatments last 12 weeks | The addition of IMT to AE results in improvement in cardiorespiratory responses to exercise in selected patients with CHF and IMW The 6MWT and MLWHF scores also improved similarly after both training programs |
Pulmonary diseases | ||||||
Ahmad et al. [2] (Malaysia) | (1) Individuals with pulmonary dysfunction COPD + IMT (EG) (2) Individuals with pulmonary dysfunction COPD + chest physiotherapy treatment (CG) | (1) 9 (2) 9 | Both groups performed the training procedures for 4 weeks EG received: chest physiotherapy, active cycle breathing technique (ACBT) and postural drainage (PD) and Inspiratory Muscle Training (IMT) for 15 min, once a day, 5 days a week for 4 weeks CG: only chest physiotherapy treatment | FEV1, FEV1/FVC, PImax, 6MWT, SGRQ, | IMT for 15 min, once a day, 5 days a week for 4 weeks IMT protocol was performed using a “patient module of pressure threshold Respifit-S unit” for 30 repetitions in 15 min with intensity of 30% of baseline maximum inspiratory pressure (PImax). IMT was progressed until 60% of subjects PImax with 10% resistance increment weekly | Combination of IMT with chest physiotherapy treatments for at least 4-week duration can produce benefits for lung function, inspiratory muscle strength, exercise tolerance and quality of life among COPD patient |
Arnedillo et al. [38] (Spain) | (1) Individuals with pulmonary dysfunction COPD + IMT (EG 1) (2) Individuals with pulmonary dysfunction COPD + oronosal breathing (ONB) (EG 2) (3) Individuals with pulmonary dysfunction COPD + standard medical recommendations (CG) | (1) 7 (2) 5 (3) 4 | Patients from EG 1 nad EG 2 carried out a supervised RP for 8 weeks, 3 days per week. The pulmonary RP included therapeutic education and training sessions lasting 60 min with a warming up phase, a main phase and a recovery phase. The training program included aerobic exercise on cycle ergometers and on treadmills, strengthening of lower and upper limb muscle groups, breathing exercises (pursed lip breathing, diaphragmatic and abdominal breathing and diaphragmatic mobility) and stretching exercises. EG 1 with added IMT | mMRC, CAT, PImax, 6MWT, | In the EG 1 group, for restricted nasal breathing, at the beginning of the training program, the small size device was used (4 mm). The size of the device was progressively increased according to the patient adaptation to the 5 or 6 mm device, depending on the score on Borg’s perceived exertion scale. If the patient had a score under 4 after the RP sessions, the size of the FB device was increased. The device was used during the RP and patients were encouraged to do physiological breathing by nasal inspirations and mouth expirations | IMT provides greater improvements in quality of life, dyspnea, exercise capacity and inspiratory muscle strength compared to patients that did not use it |
Beaumont et al. [39] (France) | (1) Individuals with pulmonary dysfunction COPD + PR + IMT (EG) (2) Individuals with pulmonary dysfunction COPD + PR (CG) | (1) 74 (2) 75 | The pulmonary rehabilitation programme for EG and CG group was conducted over 4 weeks, 5 days per week and included aerobic exercise on a cycle ergometer and a treadmill, strengthening of lower and upper limb muscle groups, a therapeutic educational programme, aerobic gymnastics in groups, a smoking cessation programme and sociopsychological and dietary advice | MDP, 6MWT, mMRC, SGRQ, PImax, FEV1, FEV1/VC, TLC | In the EG group, all subjects trained their inspiratory muscles daily during two sessions of 15 min each, five times a week, over 4 weeks. The patients had to breathe slowly with an increased tidal volume; after 10 inspirations, they could have a break by breathing at rest for a short time. The cycle of 10 inspirations was repeated 15 times. The inspiratory muscle training was performed using a threshold inspiratory muscle trainer (PowerBreathe) at a resistance generating a pressure corresponding to 50% of the initial PImax for each session. The intensity was increased (+ 10%) after 10 days of training during the programme to reach 60% of the initial PImax | Pulmonary rehabilitation with IMT was not found to be superior to pulmonary rehabilitation without IMT in terms of dyspnoea, quality of life or exercise capacity (6MWD) improvement, despite a significantly higher improvement of PImax in the IMT group |
Beckerman et al. [40] (Israel) | (1) Individuals with pulmonary dysfunction COPD + IMT (EG) (2) Individuals with pulmonary dysfunction COPD + training with very low load (CG) | (1) 21 (2) 21 | All subjects trained daily in two sessions of 15 min each, six times a week for 12 months The training was performed for 1 month under the supervision of a respiratory therapist followed by home training, verified by a respiratory therapist daily by phone and once weekly by a personal visit, for the next 11 months The control group trained for the same sessions with a fixed load that required generation of mouth pressure of 7 cm H2O | 6MWT, PImax, POD, SGRQ, FVC, FEV1 | The training was performed using a threshold inspiratory muscle trainer (POWERbreathe). The subjects started breathing at a resistance that required generation of 15% of Pimax for 1 week. The load was then increased incrementally, 5 to 10% each session, to reach generation of 60% of Pimax at the end of the first month. IMT was then continued at 60% of the Pimax adjusted monthly to the new Pimax achieved | The study shows that during IMT in patients with COPD, there is an increase in exercise capacity, improvement in quality of life, and decrease in dyspnea |
Budweiser et al. [41] (Germany) | (1) Patients with restrictive thoracic disorders + RMT (EG) (2) Patients with restrictive thoracic disorders + sham training (CG) | (1) 15 (2) 15 | Patients in both groups were instructed to perform the training procedures for 3 months. Patients were encouraged to only slowly increase their daily training time. The target was to achieve a duration of at least 10 min twice a day within the second week, or until discomfort occurred | IVC, TLC, Pimax, Pemax, 12-s MVV, PaO2, PaCO2, Maximal work rate, VE, VO2 peak, 6MWD, Time of NPPV, Severe Respiratory Insufficiency questionnaire | Isocapnic hyperpnea training: a portable RMT appliance was used, consisting of a hand-held unit with tubing, connected to a rebreathing bag (50% of IVC). Subjects must fill and empty the rebreathing bag completely during their breathing maneuver. A sideport in the middle of the connecting piece contains a hole and a valve that ensures inhalation of additional fresh air during inspiration and allows breathing partly out during expiration; thus, hyperventilation is prevented | There is some evidence that in severe restrictive thoracic disorders, RMT performed as isocapnic hyperpnea over 3 months can improve respiratory muscle function |
Chuang et al. [42] (Taiwan) | (1) Individuals with pulmonary disfunction COPD + IMT (EG) (2) Individuals with pulmonary disfunction COPD + no interventions (CG) | (1) 27 (2) 28 | ET group was provided medical treatment and routine care, along with five sessions of threshold inspiratory muscle training per week (21–30 min per session), accompanied by a progressive increase in the pressure threshold over a period of 8 weeks. The CG was provided medical treatment and routine care only, without intervention | PImax, BDI, 6MWT, SF-36 | The intervention was performed 8 weeks, with 5 sessions a week, lasted for 21–30 min, consisted of a cycle of 2-min inspiratory training with a pressure threshold loading device and 1-min of rest and then repeated s7 cycles. IMT intervention started with pressure of 15 cm H2O, after a week the pressure threshold loading was concurrently increased to 20 cmH2O. A midterm test was administered in the fourth week, and the pressure threshold loading was increased to 30 cmH2O. In the sixth week, the pressure was increased to 40 cmH2O | The study shows that significantly increases inspiratory muscle strength and endurance, improves outcomes of exercise capacity and both physiological and psychological components in the quality of life and decreases dyspnoea in patients with COPD |
Duruturk et al. [43] (Turkey) | (1) Patients with asthma + IMT (EG) (2) Patients with asthma + education session (CG) | (1) 20 (2) 18 | At the beginning of the study, all patients were provided with 30 min of education session on bronchial hygiene techniques and breathing training. Subjects in the control group received only the education session, subjects in the IMT group made additional hospital visits, 3 times per week for 6 weeks for breathing training and the IMT program using a patient-specific threshold pressure device (POWERbreathe) | FVC, FEV-1, FEV-1/FVC, MIP, MEP, 6MWT, FSS, SGRQ, London Chest Activity of Daily Living scale | The POWERbreathe was applied for 30 dynamic inspiratory efforts, twice daily, for 6 weeks, at a pressure threshold load that was 50% of MIP | Inspiratory muscle strength training in patients with asthma can lead to improvements in respiratory muscle performance, exercise capacity, activities of daily living, health-related quality of life, and a further decline in dyspnea and fatigue |
Elmorsi et al. [44] (Egypt) | (1) Individuals with pulmonary disfunction COPD + muscle training + IMT (EG 1) (2) Individuals with pulmonary disfunction COPD + muscle training (EG 2) (3) Individuals with pulmonary disfunction COPD + no training | (1) 20 (2) 20 (3) 20 | The program was conducted following a schedule of 24 visits in the 8 week period. Patients in group EG 1 and group EG 2 were subjected to a combination of lower limb endurance training using treadmill walking, upperlimb endurance training with a combination of arm raiseand arms together, upper limb strength training using handweights for biceps and triceps, and lower limb strengthtraining using straight leg raise | PImax, Pemax, 6MWT, SGRQ, mMRC, BODE, FEV1, FVC, FEV1/FVC | All subjects in group EG 1 were trained six times a week; each session consisted of 30 min, for 2 months using a Threshold inspiratory muscle trainer. Patients started breathing at a resistance that required the generation of 30% oftheir Pimax for one week. The load was then increased incre-mentally, 5–10%, to reach a generation of 60% of their PImax at the end of the first month. Specific IMT was then continued at 60% of their Pimax adjusted weekly to the new PImax achieved | MT plus peripheral muscle exercise training led to a significant improvement in PImax,PEmax,and 6-min walking distance (6MWD) compared to peripheral muscle exercise training alone. Both IMT plus peripheral muscle exercise training and peripheral muscle exercise training alone improved dyspnea, BODE index and SGRQ-C without significant differences between 2 groups For PImax,PEmax,and 6MWD; IMT provides additional benefits to peripheral mus-cle exercise training in COPD patients |
Garcia et al. [45] (Spain) | (1) Individuals with pulmonary disfunction COPD + muscle training + IMT (EG) (2) Individuals with pulmonary disfunction COPD + no training (CG) | (1) 8 (2) 5 | EG IMT programme The CG did not undergo any kind of training, being solely advised to continue with habitual daily activities | FEV1, FVC, MIP, MEP, SGRQ, MDI, ESWT | All patients in the EG group was allocated to a specific IMT programme with a Threshold device and using MIP resistance of between 40 and 50%. IMT duration was 30 min daily, five time weekly for a period of five consecutive weeks. Training was supervised by a physiotherapist and undertaken with control of breathing rhythm (six cycles per minute) | The use of IMT in patients with COPD induced an improvement in inspiratory muscle force with a consequent improvement in the quality of life in relation to symptoms |
Huang et al. [46] (China) | (1) Patients with LC + IMT combined with CRT (combined PR group) (2) Patients with LC + conventional PR (single IMT group) (3) Patients with LC + routine preoperative preparation (CG) | (1) 30 (2) 30 (3) 30 | PR program was primarily a physical-based intervention that focused on exercise endurance and resistance training or a combination of methods, such as IMT, and CRT, coupled with psychological educational guidance. Patients in the single IMT group received conventional single-mode IMT, and the CG patients underwent routine preoperative preparations, including preoperative education for in-hospital, preoperative preparation and essential encouragement or psychological caring | Clavien-Dindo Complication Classification System, 6-MWD, fatigue score, dyspnea score, PEF, FEV-1, FVC, DLCO, QoL evaluation | The patients in the combined PR group were treated for one week with high-intensity preoperative PR using IMT and aerobic endurance exercise. IMT involved abdominal and thoracic breathing training. This training used a respiratory training device. Patients performed these exercises for 20 min at least four times daily. Meanwhile, for CRT, a NuStep cross-training apparatus was used at a rehabilitation training center. Patients used the NuStep twice daily for 20 min per session | Compared with IMT program, by applying exercise regimens and increasing physical activity in LC patients with risk factors of PPCs, the combined program could better improve the exercise capacity, inspiratory muscle strength and QoL, which additionally contributed to alleviate the PPCs severity |
Koppers et al. [47] (the Netherlands) | (1) Individuals with pulmonary dysfunction COPD + ERMT (EG) (2) Individuals with pulmonary dysfunction COPD + sham training (CG) | (1) 18 (2) 18 | Endurance Respiratory Muscle Training was used in EG—but there is lack of informations about device and resistance used during training | FEV1, IVC, Pimax, Pemax, 6MWT, CRQ | RMET was performed by means of tube breathing. Maximum ventilatory capacity that can be sustained for 15 min is approximately 60% of maximum voluntary ventilation (MVV). Patients wore a nose clip and were instructed to take deep breaths Sham training was performed by breathing 6–7 times per minute through an incentive flowmeter, airflow resistance was set at 5% Pimax | Home-based RMET by means of tube breathing leads to a significant improvement of endurance exercise capacity, a reduction in perception of dyspnea, and an improvement in quality of life in patients with moderate-to-severe COPD |
Leelarungrayu et al. [48] (Thailand) | (1) Individuals with pulmonary dysfunction COPD + standard RMT device (EG 1) (2) Individuals with pulmonary dysfunction COPD + prototype RMT device (EG 2) (3) Individuals with pulmonary dysfunction COPD + no training (CG) | (1) 10 (2) 10 (3) 10 | 6 week RMT training in EG 1 and EG 2 group In CG no interventions The patients received medication in the form of either a long-acting inhaled bronchodilator or a long-acting inhaled steroid, | PImax, Pemax, 6MWT, CCQ, Borg scale, FVC, FEV1, FEV1/FVC | The standard EG 1 or simple prototype EG 2 RMT device, with plastic caps having different sized holes (6, 4, and 2 mm diameter), was selected for both the training groups, which started inspiration through a 6 mm hole once daily for the first 2 weeks, before changing to 4 mm and 2 mm holes in the second and fourth week, respectively. Thirty slowly repeated inspirations passed through the device, with a 3-min interval of rest in each of four training sessions; thus, 20–30 min of RMT was completed The subjects initiated each inspiratory effort from residual volume and stroke in order to maximize the inspiratory volume. Therefore, 120 inspirations in a device with 3 resting intervals were performed in both the standard and simple prototype RMT groups | This simple prototype device can be used clinically in COPD patients as a standard device to train respiratory muscles, improving lung function and QOL RMT improves respiratory muscle strength and reduces dyspnea in COPD patients. Overall results in this study show that changes of FVC, FEV1/FVC, PImax, PEmax, QOL, and dyspnea score are similar between training with a simple prototype device and a standard RMT device |
Liaw et al. [49] (Taiwan) | (1) Patients with bronchiectasis + IMT (EG) (2) Patients with bronchiectasis with any training program (CG) | (1) 19 (2) 19 | The IMT program was started at an intensity of 30% MIP, and increased each week. A pressure threshold device was used. Patients in the control group did not receive any training programme. Both groups were monitored by telephone call once or twice a week until the end of the study | spirometry, SpO2, lowest SpO2, Borg Scale during 6MWT, 6MWD, 6Mwork, MIP, MEP and SGRQ | During training patients used a threshold device with an intensity of 30% MIP, which increased each week. Patients were asked to perform IMT for 30 min/day, at least 5 days/week, for 8 weeks. If the training sessions could not be completed due to increased resistance, the last part of the session was performed with the previous resistance setting | home-based pressure threshold resistive IMT did increase both inspiratory and expiratory respiratory muscle strength, but had no significant effect on respiratory function, quality of life and even walking capacity between groups in patients with bronchiectasis |
Magadle et al. [50] (Israel) | (1) Individuals with pulmonary dysfunction COPD + GER + IMT (EG) (2) Individuals with pulmonary dysfunction COPD + GER + sham IMT training (CG) | (1) 16 (2) 15 | The PR program was divided into the two phases: pre- and post-randomization. In the pre-randomization phase all patients participated in a general exercise reconditioning (GER) program that included lower extremity endurance exercise (walking or cycling), upper extremity exercise and strength training with free weights. This phase included 36 sessions of 1,5 h duration (three times a week for 12 weeks) After the first 12 weeks, half of the group was assigned to receive GER plus IMT (EG) using a pressure threshold device POWERbreathe The other half of the group undertook GER plus IMT sham training (CG). During this phase, GER took place for 1 h three times a week, for 6 months | FVC, FEV1, 6MWT, PImax, SGRQ, POD | There is a lack of protocol of IMT training | The addition of IMT did not yield further improvements in 6MWT, it did result in significantly greater improvements in quality of life and POD than GER alone |
Majewska-Pulsakowska et al. [51] (Poland) | (1): COPD patients + IMT (2): COPD patients + CET (3): COPD patients + IMT + CET (4): COPD + no rehabilitation programs (CG) | (1) 8 (2) 9 (3) 13 (4) 13 | -Group1: inspiratory muscles training -Group2: cycle ergometer -Group3: cycle ergometer + inspiratory muscle training -Group4: no treatment | -Pulmonary function: PImax, MET, FEV1 (L), FEV1 (% predicted) -Health-related quality of life: SGRQ -Tolerance to exercise: 6MWT | -Cycle ergometer: 8 weeks of intervention, for 3t/week. Each training session began (warm-up) and finished (relaxation) with a pedaling at a load of 10 W for 3 min -IMT: 8 weeks, 5 times a week, twice a day for 5–15 min. Performed by themselves at home on a Threshold IMT | The results demonstrate a significant improvement in the quality of life measured for Group 3 (IMT + cycle ergometer) in comparison with Group 4 (no treatment) |
Mota et al. [52] (Spain) | (1) EG: COPD patients + Expiratory training group (2) CG: COPD patients + sham training group | (1) 10 (2) 8 | -Exercise group: expiratory training with specific threshold (50% of MEP) -Sham group: expiratory training with no specific threshold | -lung function: MRC, FEV1, MEP; VE, Vt (other outcome about inspiratory capacity, with unclear abbreviation) -Exercise tolerance: 6MWT, Borg scale, VO2 max -QoL: SGRQ | 5 weeks, 3t/week, 30 min per session Patient had to breathe through an expiratory threshold device. Repeated cycles of 3 min of work, followed by 2 min of rest -Expiratory muscle training: the load was about 50% of MEP -Sham training: no load addiction to the threshold device | -Lung function remained unchanged after training -Exercise capacity, symptoms and quality of life significantly improved in Exercise Group -The improvement in both walking distance and the SGRQ score significantly correlated with changes in MEP |
Riera et al. [53] (Spain) | (1) EG: COPD patients + IMT training (2) CG: COPD patients + no training | (1) 10 (2) 10 | Inspiratory muscle training performed at home, with a incentive flowmeter device with visual feedback | -Pulmunary function: FEV1, FVC -Inspiratory Muscle Endurance Test (SIPmax) -PImax -Maximal exercise Capacity: VO2max; Wmax, VE -Exercise performance: SWT -Dyspnea: BDI, TDI -QoL: CRQ | -1st part: 4 weeks, pre-training -2nd part: 8 weeks, training phase -GroupT was trained with load 60 to 70% of the maximal sustained inspiratory pressure (SIPmax) -GroupC was trained at zero load (the flowmeter air leak was closed) | Targeted IMT improved dyspnea, increased the capacity to walk, and Improved quality of life in COPD patients |
Schultz et al. [54] (Germany) | (1): COPD patient + highly intensive IMT (2): COPD patient + sham IMT | (1) 300 (2) 302 | -Group 1 (intervention group) = usual care + highly intensive strength IMT -Group 2 (control group) = usual care + sham IMT | -Functional capacity: 6MWT -Respiratory muscle strength: PImax -Pulmonary function: FEV1, FIV1, FVC -Quality of life: SGRQ, CAT, CCQ -Dyspnoea: BDI, TDI | All patients receive rehabilitation programme for 3 weeks (i.e. endurance training, strength training, patient education, respiratory exercises, saline inhalation, …) The intervention group: IMT training is provided by using a threshold training device. The initial training load was 30% of PImax and was progressively increased to 60%. 7times/week, for 21 min The Control Group: patients use the same device, but with any valve. No threshold is used. 3times/week | IMT as an add-on to a 3-week pulmonary rehabilitation improves inspiratory muscle strength (PImax), but does not provide additional benefits in terms of exercise capacity, quality of life or dyspnoea |
Seròn et al. [55] (Chile) | (1): CAL patients + IMT (EG) (2): CAL patients + SHAM (CG) | (1) 17 (2) 18 | -EG = IMT with personalised load, based on PImax -CG = IMT with fixed load | -Respiratory muscle strength: PImax -Functional capacity: 6MWT -Pulmonary function: FEV1 -Quality of life: CRQ | Muscle strength is training Threshold Inspiratory Muscle Trainer device The threshold for the treatment group was Individualized: a load that is 40% of inspiratory muscle strength measured by PImax at baseline The Control Group works with the minimal loading offered by the exercise device The training are performed in a series of 5 repetitions with 1-min periods between them. From 10 to 30 min a day, for 3 weeks | Use of a threshold loading device is effective for strengthening inspiratory muscles as measured by PImax after the first month of training in patients with CAL The long-term effectiveness of such training and its impact on quality of life should be studied in a larger number of patients |
Stroke | ||||||
Sutbeyaz et al. [56] (Turkey) | (1) STROKE patients + conventional rehabilitation + IMT (2) STROKE patients + conventional rehabilitation + BRT (3) STROKE patients + conventional rehabilitation | (1) 15 (2) 15 (3) 15 | -Group 1: IMT Group. IMT + conventional rehabilitation -Group 2: BRT Group. Breathing retraining + conventional rehabilitation -Group 3: Control Group. Conventional rehabilitation | -Pulmonary function: FEV1, FVC, FEV1/FVC, VC, FEF, PEF, MVV, MIP, MEP -Ambulation status: FAC -Activities of daily living: Barthel Index -Respiratory muscle strength: PImax, PEmax -Quality of life: SF-36 -Dyspnoea | BRT training consists of: 15 min of diaphragmatic breathing, combined with pursed-lips breathing, and 5 min of air-shifting techniques, and 10 min of voluntary isocapnoeic hyperpnoea; it is performed daily for 6 weeks IMT training consists of: breathing exercises using a threshold inspiratory muscle trainer, with load of 40% PImax. Exercise intensity is gradually increased, 5–10% each session, to 60% of PImax as tolerated; it is performed in 2 session of 15 min each, 6 days/week, for 6 weeks Conventional rehabilitation is 5 days/week, for 6 weeks | A 6-week programme of IMT improves inspiratory muscle function in stroke patients. This was associated with an increase in lung volumes and improvements in exercise capacity, sensation of dyspnoea score and SF-36 domains |
Leukemia | ||||||
El-Nahas et al. [57] (Egypt) | (1) Patients with Leukemia + chemotherapy and IMT (EG) (1) Patients with Leukemia + chemotherapy only (CG) | (1) 30 (2) 10 | Patients who were included in the study group received IMT for 4 successive weeks, 5 sessions/week; patients who formed the control group, just received chemotherapy | MVV, 2MWT, FACT-G | Intervention in the EG lasted for 20 min: patients started breathing at a resistance of 30% of MIP, and then incrementally increased, based on patients’ perception of exertion. Then, the load was increased rapidly over the first 7 days up to 60–80% of the baseline MIP | The adjunctive physical therapy modalities with its various effects has been recommended, which can help in supporting the maintenance of cancer patients’ health-related quality of life |
Excluded studies

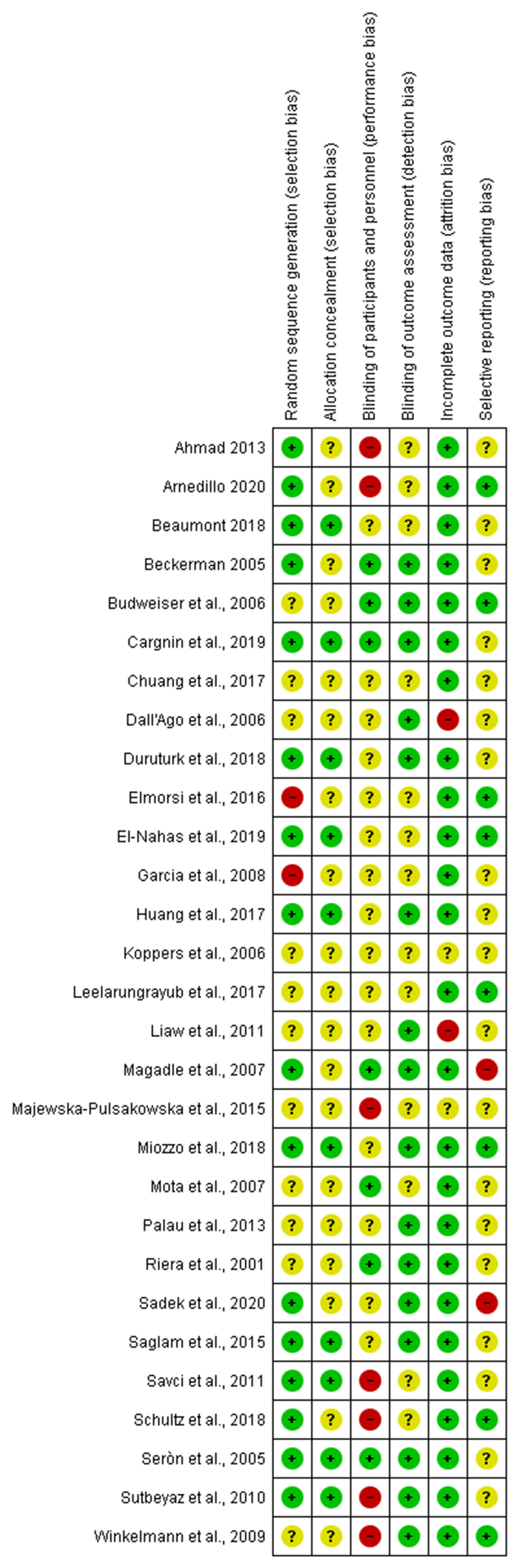

Risk of bias in included studies
-
Random sequence generation (selection bias): Sixteen studies were assessed with a low risk of bias, as the authors described a random component in the sequence-generation process, whereas two studies were judged with a high risk of bias, as randomization procedures were not appropriate. The remaining 11 studies were judged with an unclear risk of bias, as no information was provided.
-
Allocation concealment (selection bias): Ten studies had a low risk of bias in this domain, as the allocation methods used were appropriate. In 19 studies there was no information about allocation concealment procedures, resulting in an unclear risk of bias.
-
Blinding of participants and personnel (performance bias): Seven studies clearly stated that participants and therapists were blinded to intervention group allocation, whereas in other 7 studies no blinding was provided. It was unclear whether participants and therapists were blinded to intervention group allocation in 15 studies.
-
Blinding of outcome assessment (detection bias): In 16 studies the outcome assessor was unaware of the participants’ assigned interventions, so the risk of bias was low. In 13 studies the risk was unclear due to lack of information.
-
Incomplete outcome data (attrition bias): Twenty-five studies were assessed with a low risk of bias for this domain, as no missing data were found. Only one study had an unclear risk of bias because information was not reported and potential missing data were not provided. Outcome data were incomplete in the remaining 2 studies.
-
Selective reporting (reporting bias): In 8 studies the risk of bias was low, whereas it was unclear whether selective reporting occurred in 19 studies, as the study protocols were not available. In 2 studies selective reporting was identified.
