Assessment of the Autism Spectrum Disorder Based on Machine Learning and Social Visual Attention: A Systematic Review

Autism Spectrum Disorder (ASD) is a neurodevelopmental disorder affecting worldwide 1 in 160 children (WHO, 2019) which emerges in childhood and persists in adulthood. ASD is defined by the presence of impairments in social interaction and communication, and repetitive and restrictive patterns of behaviours and interests (APA, 2013). Several aspects might contribute to the ASD manifestation, such as neurobiological, genetic, environmental and cognitive factors (Currenti, 2010; Klin & Mercadante, 2006). Although ASD signs may be visible in early childhood (Lord et al., 2006), ASD diagnosis is usually made 2 or 3 years after the appearance of symptoms, at the average age of 4 (Goldstein & Ozonoff, 2018). The stress on social impairments and atypical language development in ASD stems from its scientific evidence (e.g., Dawson et al., 2004; Mundy et al., 1986; Naber et al., 2008; Tager-Flusberg et al., 2005; Wilkinson, 1998), and it might be due to a reduced attention to both social stimuli (SS) and social interaction (Chevallier et al., 2012; Dawson et al., 2005). ASD social impairments include among others eye contact avoidance, altered joint attention (JA), difficulties in social and emotional judgment, social smiling absence, and atypical turn taking (Tager-Flusberg et al., 2005; Wilkinson, 1998). In particular, children with ASD tend to show reduced social visual attention (SVA) to the eyes compared to typical developmental (TD) children (e.g., Sterling et al., 2008; Tanaka & Sung, 2016), as well as deficit in JA related to following eye gaze, pointing towards objects or both (e.g., Dawson et al., 2004; Mundy et al., 1986; Naber et al., 2008), and difficulties in the social evaluation of interlocutor’s kindness (e.g., Wallace et al., 2010, 2017). They also strive for understand and follow turn taking in dialogues, resulting in excessive ASD verbosity (e.g., Chuba et al., 2003; Ghaziuddin & Gerstein, 1996), and they miss social smiling expression in response to the interlocutor’s smile, which is related to the incapacity of both orienting eye gaze and showing positive facial expressions (e.g Dawson et al. 1990; Kasari et al. 1993; Swettenham et al. 1998).

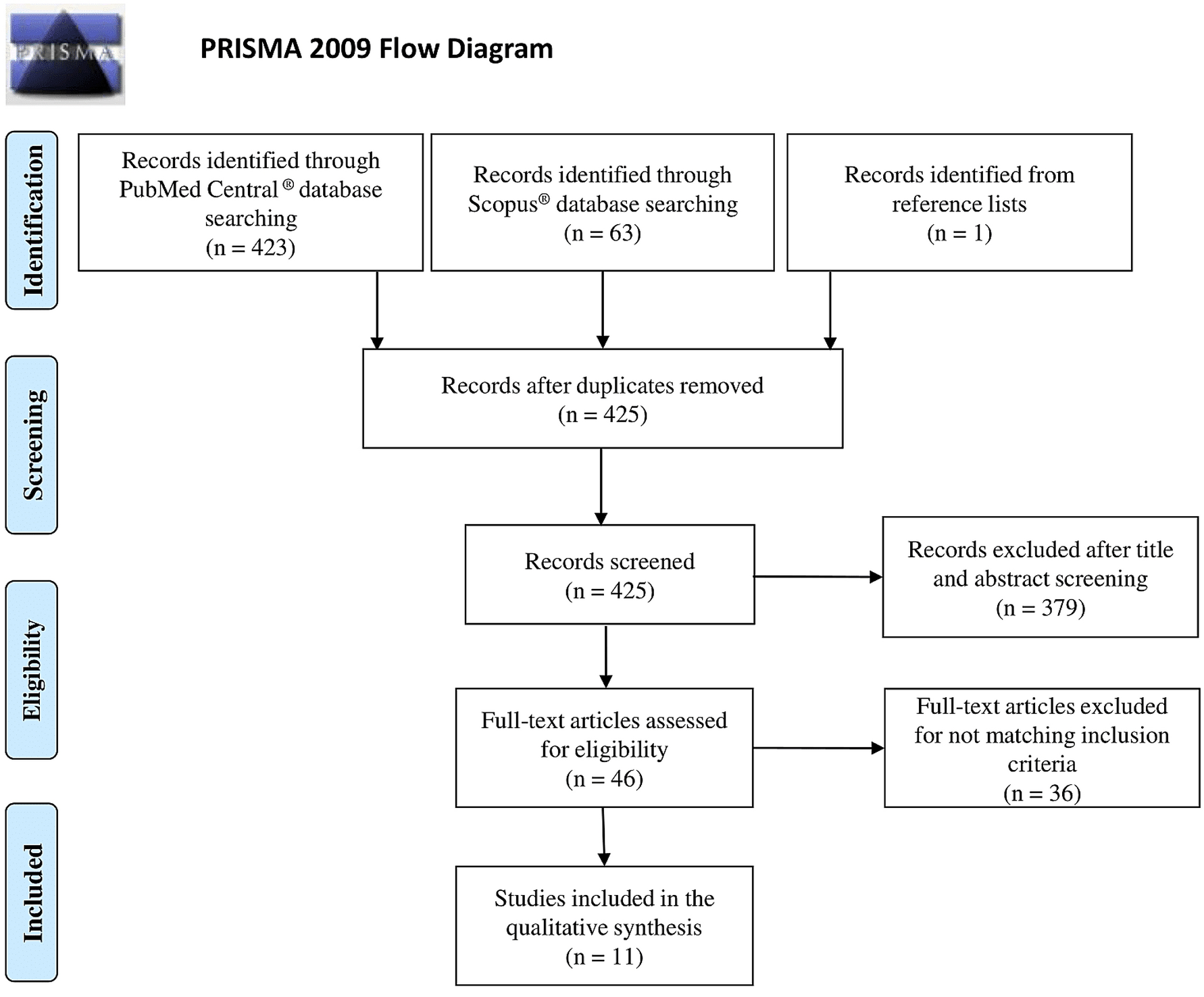

Literature search followed the Preferred Reporting Items for Systematic Reviews and Meta-Analysis guidelines (PRISMA; Moher et al., 2009).

The aim of this systematic review was to present and discuss the ML models that were used to discern children with ASD from TD peers, through the measurement of EM towards static and dynamic SS. First, studies involving static SS were presented, and then studies that used dynamic SS. Liu et al. (2015) were the first who attempted to classify children with ASD from TD (N = 21) using EM on SIs depicting individual Chinese female faces. Features based on eye gaze coordinates, eye motion, and combined variables were extracted for each SI per subject using k-means clustering, creating a posteriori AOIs. Besides a posteriori AOI approach, traditional a priori AOI approach on combined variables was computed as baseline feature extraction method to compare performance of different SVM. Selected eye gaze coordinates and eye motion features were subsequently represented with N-Gram modelling and the orderless frequency Bag of Words (BoW). Five different SVM were trained: 3 using BoW histogram features on eye gaze coordinates, eye motion and combined variables after k-means clustering, 1 on eye gaze coordinates after N-Gram modelling, and 1 on selected features subsequent to a priori AOI definition. Leave-one-out strategy was used to train SVM on all participants except one, which was used as test set. The SVM performance based on BoW histogram features of combined variables derived from k-means clustering achieved the best performance with an AUC of 0.92 and an accuracy of 86.89% in ASD discrimination. In a subsequent study of the same authors (Liu et al., 2016), it was investigated the use of ML to classify EM of children with ASD and TD peers (N = 29) towards SIs depicting either individual Chinese faces or other race faces. Similar to the previous study, k-means clustering was used to define a posteriori AOIs, and histogram feature extraction provided feature representation per image for each subject. Different features were clustered for same race faces, other race faces and all faces. Leave-one-out cross-validation strategy was used to separate the training set from the test set and a radial basis function (RBF) kernel SVM for image-level classification was trained. Results provided evidence that the RBF kernel SVM on all faces outperformed the SVM on same race faces and other race faces, with an accuracy of 88.51%, sensitivity of 93.10%, specificity of 86.21%, and AUC = 0.89. In a like manner, Kang et al. (2020) tried to identify children with ASD (N = 49) from TD peers (N = 48) adopting supervised ML on features from two different measures: EEG and eye-tracking. EM were recorded using the same static SS of Liu et al. (2016), differently presented in terms of order and exposition time. SVM performance was tested with different inputs, which were respectively data from EEG measure, eye-tracking technique, and combined measures. Since the present review focused on EM toward SS in ASD, only related SVM were reported. Eight a priori AOIs were defined and results provided evidence of fewer gazes on face, nose, and mouth on both other and own-race faces for ASD. Feature selection was computed applying the minimum-redundancy-maximum-relevance method (Peng et al., 2005), which takes into account both minimum redundancy among features and maximum relevance with class labels, seeking the maximal statistical dependency between selected features. Classification accuracy of 3 SVM (own-race face, other-race face, both types of faces) were compared and best accuracy was achieved by the ML model related to both other and own-race faces, achieving an accuracy of 75.89% and AUC = 0.87. Overall, the best SVM performance was the one combining EEG and eye-tracking data, accomplishing an accuracy in ASD discrimination of 85.44% and AUC = 0.93, which suggests that multimodal assessment might lead to stronger results in the classification of ASD.

Aforementioned studies, which used similar SS and reduced sample size, seem to suggest that, on one hand, the use of combined variable features (i.e. eye gaze coordinates and motion; Liu et al., 2015) can enhance the ML performance, in relation to SVM based on features of single variables, and on the other, the use of features from combined stimuli (i.e., both same and other race faces; Kang et al., 2020; Liu et al., 2016) can provide better model accuracy rather than SVM based on just one type of SIs. In addition, Kang et al. (2020) found better accuracy when both eye-tracking and EEG data on both types of SIs were used to train SVM, emphasizing the importance of multimodal data acquisition in the early assessment of neurodevelopmental disorders as complex and varied as ASD. Li et al. (2018) took a previous dataset of raw videos of 53 children with ASD and 136 TD peers looking at their mother’s pictures on the screen, to later extract EM patterns in an indirect manner. The attempt was to develop an early ASD diagnosis tool based on raw videos that might be recorded at home rather than in clinics. Features as eye gaze trajectories were extracted from videos using the tracking learning detection algorithm. Inspired by the colour histogram method for images (e.g., Deng et al., 2001), the area of videos was divided into different zones and the number of eye displacements were counted within each zone. Due to the different methodology involved in the present study, neither a priori nor a posteriori AOI approach on the SS were applied. To ensure that integrity along the video timeline was preserved, the method of accumulative histograms was introduced and authors computed the ASD and TD holistic accumulative histograms based on different numbers of video frames (i.e., 20, 40, 50, and 100). SVM was chosen as ML algorithm to test the ability of the video-based method to discriminate ASD. To assess the efficacy of the method based on accumulative histograms, it was compared to a baseline method and a similar method based on histograms including all video frames (i.e., Torii et al., 2016). Principal component analysis (PCA) and kernel PCA (KPCA) were applied to extract features and therefore reduce data dimension. Sixteen SVM were fed and 20-fold cross validation was used to avoid overfitting issue. Although all models achieved an accuracy greater than 77%, highest accuracies were obtained using KPCA, and the best model was SVM on 40 video frames with an accuracy of 93.7%. However, the TD group was three times bigger than the ASD group, hence the imbalanced sample affected the ML accuracy score, which tended to be biased towards the sample group with more elements (Nguyen et al., 2009). To overcome the unbalanced sample issue, Li et al. (2020) used the same dataset of the previous study and a further new dataset of similar raw videos of children with ASD (N = 83). The new dataset was a balanced dataset of 272 raw videos (i.e., dataset 2) in which participants’ face was recorded while they were looking at their mother’s picture on the screen. As in the previous study, AOI could not be outlined due to the type of data and eye gaze trajectories on SIs were computed using the tracking learning detection algorithm and then divided into angle and length features. Accumulative and non-accumulative histograms were then generated for single and combined features with the intention to use them as inputs for neural networks. Neural networks mimic the human brain functioning, receiving data as input and providing an output previously defined by the operator among prediction, classification and correlation. Several neural network models have been developed: ANN, RNN, and more complex and robust RNN as long short-term memory (LSTM; Hochreiter & Schmidhuber, 1997). LSTM implementation follows the RNN one, except for some nodes, as an additional one that is used as memory rubber and it is fed by a forget gate. Six LSTM networks were trained using tenfold-cross validation with respectively non-accumulative and accumulative histograms of single and combined variables. In addition, KPCA to reduce data was computed in order to feed 6 SVM and compare their performance to LSTM performance. Results revealed that features based on accumulative histograms yielded better outcomes than non-accumulative histograms, and LSTM networks outperformed SVM by 6.2% in accuracy. The best performance in ASD discrimination was achieved by LSTM with combined accumulative histograms on dataset 2 (accuracy of 92.60%, sensitivity of 91.9%, and specificity of 93.4%). LSTM is usually more efficient with data providing time dimension rather than with orderless data, representing in this case a well-fit solution in relation to SVM. However, even though sample size was improved in relation to Li et al. (2018), providing more validity to the ML models, EM were indirectly measured, since they were extracted from raw videos of participants looking at SS at their houses, rather than directly recorded using an eye-tracking system. The purpose of these studies was to develop a simple cost-effective tool for home as rapid ASD screening, and the involvement of a portable eye-tracker for the direct EM recording could enhance the feasibility of the method. Moreover, involved SS differed between participants, since each child looked at the picture of his or her mother, increasing EM variability. The presence of controlled setting, direct EM measurement, and same SS for participants might improve both accuracy and objectivity of the method.

Tao et al. (2019) integrated CNN and LSTM to classify children with ASD and TD basing on their scanpaths related to 300 SIs and non-social images (NSIs) presenting either people or objects and naturalistic scenes. Scanpaths are considered as visual representations describing EM dynamics on stimuli, such as the sequence of fixations and saccades (Goldberg & Helfman, 2010). EM dataset was the Saliency4ASD grand challenge, which is an EM dataset publicly released to evaluate ASD classification algorithms gathering EM data of 14 TD and 14 children with ASD (Duan et al., 2019). Starting from fixation points, the reference saliency map was created using the neural network SalGAN (Pan et al., 2017) and features were extracted from the patches related to eye gaze coordinates in the saliency map. Subsequently, extracted features were given as input to two CNN-LSTM architectures, which differed in the number of layers. The best performance in ASD discrimination was achieved by the CNN-LSTM architecture of 6 layers with batch normalization (accuracy of 74.22%). Batch normalization is a technique that improves both ANN speed and performance, normalizing the input layer by re-centering and re-scaling (Ioffe & Szegedy, 2015). In accordance with Li et al. (2020) and Tao et al. (2019), RNN show potential as algorithms that can be used to automatically assess ASD involving static SS. However, Tao et al. (2019) tested CNN-LSTM architectures on a reduced amount of data and the increase of sample size might enhance the strength of the RNN model. As discussed above, the use of combined variables, such as eye gaze coordinates and trajectories, or mean fixation duration and fixation counts, seem to improve accuracy in both SVM and RNN (e.g., Li et al., 2020; Liu et al., 2015; Tao et al., 2019). Vu et al. (2017) studied the combined effect of different SIs and exposure time on the accuracy of ML-based assessment of ASD. Their purpose was to look for the SS and exposure time that yielded the best ASD discrimination accuracy. Children with ASD and TD (N = 16) looked at SIs of social scenes and paired human faces and to NSIs of objects, both presented on the screen for different exposure times (1, 2, or 5 s). Participants’ fixation distribution maps on each stimulus were computed using kNN, a learning algorithm which saves all data instances in n-dimensional space. New data classification is based on the classification of the closest k number of stored instances (Orrú et al., 2020). In this case, k was determined as 3. In each image, one fixation from the computed fixation maps was chosen and remaining gaze points were used to train kNN, which was applied 30 times sequentially. f-score accuracy was computed for each image, as an average among kNN accuracies. The most complex SI representing social scenes achieved the best accuracy in ASD and TD discrimination (98.24%) whereas among exposure times 5 s yielded the best accuracy (95.24%). Finally, SS and exposure time combinations provided evidence that shorter exposure times were weak and not recommended, whereas the best model was the one presenting social scene for 5 s, with an accuracy of 98.24%. Despite the reduce sample size, Vu et al. (2017) findings were in line with Chita-Tegmark (2016) and Frazier et al. (2017) meta-analyses, since the best accuracy was achieved by the most complex SS presented for the longest time. In the majority of studies presented so far, the combined use of distinct elements in static SS, such as faces related to different races, social and non-social elements, or embellished social scenes, improved ML accuracy in relation to models based on the same uncombined elements (e.g., Kang et al., 2020; Liu et al., 2016; Tao et al., 2019; Vu et al., 2017). In addition, further improvements in the ability of ML algorithm to discern ASD from TD were provided by the combination of features from different dependent variables (e.g., Li et al., 2020; Liu et al., 2015) and by the multimodal acquisition of data (e.g., Kang et al., 2020).

Wan et al. (2019) and Carette et al. (2017, 2019) are the three studies that involved dynamic SS and supervised ML. In Wan et al. (2019) participants (N = 37) watched a video of a young Asian female mouthing the alphabet. In order to estimate a priori AOI reliability for ASD classification, AOI discrimination weights were tested using permutation tests. SVM with fivefold-cross validation on fixation time on AOIs with discriminative power was computed and the accuracy in ASD classification achieved 85.1%, with a sensitivity of 86.5%, and a specificity of 83.8%. Carette et al. (2017) wanted to use a neural network approach to discern between children with ASD (N = 17) and TD (N = 15), according to their EM toward SV presenting a JA offer. Since neural networks can manage high data dimension, no data reduction was applied. EM measures on the SV without outlining AOIs were considered. Chosen RNN was two LSTM hidden layers of 20 neurons each using different fitness values. LSTM provided promising results, achieving to correctly classify 5 subjects out of 6 of the test set (i.e., accuracy of 83%), with a confidence greater than 95%. However, sample size was reduced and the amount of training data (4 children with ASD and 3 TD) was small for a RNN that can manage broader dataset for training. The involvement of much more participants could have reduced both uncertainty and overfitting. In a subsequent study, Carette et al. (2019) recorded EM of children with ASD (N = 29) and TD (N = 30) on dynamic SS to apply several ML algorithms. Involved SS were SVs representing a JA offer toward the unique object placed around, and NSVs with attractive elements for children, such as colourful balloons and cartoons. EM were recorded and later computed to draw individual scanpaths labelled according to sample groups, which avoided the AOI analysis. Due to the small number of generated scanpaths, image augmentation was applied producing synthetic samples by image transformation operations (e.g., rotation) in order to reduce uncertainty and to improve accuracy. The new dataset was five time bigger than the original one. To reduce data dimension, all images were firstly scale down, then converted to greyscale, and finally PCA was eventually applied. Traditional ML approaches were fed with selected features and tested for ASD discrimination. Involved ML models were Naïve Bayes, SVM, and RF. Moreover, ANN were implemented and tested for the same purpose. Developed ANN included single hidden layer of 50 neurons, 200 neurons, and 500 neurons as well as 2 hidden layers with respectively 80 and 40 neurons. Ten-fold-cross validation was applied. Outcomes revealed that more traditional ML approaches achieved on average an AUC of 0.7, as opposed to ANN, which provided accuracies greater than 90%. In particular, the single layer model of 200 neurons achieved the best performance in ASD discrimination (accuracy of 92%), suggesting that increasing the ANN complexity did not provide better results. The synthetic production of scanpaths nonetheless, allowed the computation of robust ANN, which would have been weaker if they were based just on the real sample size. Finally, there is only one study that used unsupervised ML on ASD EM (Elbattah et al., 2019). The aim of the study was to stratify ASD, in order to discover ASD EM clusters related to the disorder symptom severity. Children with ASD (N = 29) and TD (N = 30) looked at same SS of Carette et al. (2019). EM were recorded and individual scanpaths were created and scaled down for dimension reduction, avoiding AOI analysis. In order to test which combination between feature extraction methods and k-means algorithm might provide better outcomes in the stratification of ASD based on EM, four feature extraction methods were compared: converting scanpaths into grayscale, PCA, the t-Distributed Stochastic Neighbor Embedding technique (t-SNE; Maaten & Hinton, 2008), and the autoencoder, which is a particular unsupervised ANN. k-means algorithm was then used to develop 4 clustering models based on different features derived by feature extraction methods. Three clustering structures were studied, as represented by selected k values (k = 2, k = 3, and k = 4). Results showed that the quality of clusters decreased increasing k value, and clusters separation using pixel-based features, PCA, or t-SNE was poor, as opposed to autoencoder that provided better cluster quality with faster EM related to higher ASD symptom severity.

Among the few studies that involved ML algorithms and dynamic SS, Wan et al. (2019) was the only one applying SVM, whereas Carette et al. (2017, 2019) opted for supervised ANN, and Elbattah et al. (2019) for unsupervised ANN. Taking into account studies that involved dynamic SS and ML for ASD classification rather than stratification (e.g., Carette et al., 2017, 2019; Wan et al., 2019), dynamic SS varied from SV of one actress, to complex SVs presenting JA offers eventually combined with NSVs. SVs can be considered as dynamic SIs, since they are composed by a myriad of static frames depicting social elements. In line with findings of selected studies involving static SS with combined social elements (e.g., Kang et al., 2020; Liu et al., 2016; Tao et al., 2019; Vu et al., 2017), dynamic SS such as SVs represent complex stimuli full of details, that can be promising for the discrimination of ASD. In addition, the use of data related to complex SVs, as well as to the combination of SVs and NSVs might further improve ML models, due to the greater SS complexity and the variability in recorded data. However, although Carette et al. (2017, 2019) and Wan et al. (2019) achieved accuracies greater than 80% in ASD discrimination using dynamic SS, sample sizes were small, in particular when ANN were involved. Only Carette et al. (2019) tried to overcome this issue by creating synthetic samples, reducing uncertainty and overfitting.

The aim of this systematic review was to discuss the recent scientific evidence on ML models used to classify children with ASD and TD according to their EM on different SS (i.e., static and dynamic). Along with the traditional ASD assessment, which represents a qualitative method to diagnose ASD, ML and EM-based procedures might fulfil the need for quantitative method in the ASD diagnosis. However, on one hand, studies tended to involve small sample sizes, which affected the reliability of discrimination accuracy in ML models, and on the other, they mostly involved static SS rather than dynamic SS. Both SVM and neural networks achieved interesting results in the ASD classification, but SVM seems to be more promising and cost-effective, since it is efficient even with less sample cases, it requires fewer amount of parameters to be set for training, and less computational cost. It might be interesting testing further ML models, such as ADTree, DT, and RF, in order to validate a unique ML approach for the assessment of ASD (Thabtah, 2019). Similarly, due to the complexity in the ASD phenotype, as well as the comorbidity with other diseases (e.g., ADHD), it might be also interesting attempting to classify ASD through bottom-up processes as unsupervised ML, which so far have been mostly used in ASD stratification rather than classification (Wolfer et al., 2019). Concerning the second issue of the traditional ASD assessment, which is the lack of ecological validity, previous works not involving ML presented dynamic SS as possible solution, since they are more naturalistic than static SS (e.g., Cilia et al., 2019a, 2019b; He et al., 2019). Accordingly, selected studies suggested the preferential use of dynamic SS over static SS, due to the greater complexity and the presence of combined social elements. Dynamic SS nonetheless diverge from realistic settings for many aspects, and the involvement of controlled and standardized procedures, based on new technologies, might definitely overcome this ecological validity issue. New technologies indeed, such as virtual reality (VR), have already proven their power in both ASD diagnosis and intervention (Parsons, 2016; Parsons, 2016), providing cost-effective realistic situations that strongly represent real life and allow to control the environment wherein is safe to test children with ASD. In particular, studies with semi-immersive VR system (i.e., CAVE™) involving several implicit measures disclosed promising results in the discrimination of ASD (Alcañiz Raya, Chicchi Giglioli, et al., 2020; Alcañiz Raya, Giglioli, et al., 2020). Along with the traditional ASD assessment, multimodal VR-based assessment involving ML procedures and several implicit measures such as EDA, body movements, and EM, which objectively tap ASD dysfunctions reported in DSM V (APA, 2013), can contribute to the development of a more objective and ecological method for the ASD early diagnosis.
