Neuropathic deformities impair foot and ankle joint mobility, often leading to abnormal stresses and impact forces. The purpose of our study was to determine differences in radiographic measures of hind foot alignment and ankle joint and subtalar joint motion in participants with and without neuropathic midfoot deformities and to determine the relationships between radiographic measures of hind foot alignment to ankle and subtalar joint motion in participants with and without neuropathic midfoot deformities.
Sixty participants were studied in three groups. Forty participants had diabetes mellitus (DM) and peripheral neuropathy (PN) with 20 participants having neuropathic midfoot deformity due to Charcot neuroarthropathy (CN), while 20 participants did not have deformity. Participants with diabetes and neuropathy with and without deformity were compared to 20 young control participants without DM, PN or deformity. Talar declination and calcaneal inclination angles were assessed on lateral view weight bearing radiograph. Ankle dorsiflexion, plantar flexion and subtalar inversion and eversion were assessed by goniometry.
Talar declination angle averaged 34±9, 26±4 and 23±3 degrees in participants with deformity, without deformity and young control participants, respectively (p< 0.010). Calcaneal inclination angle averaged 11±10, 18±9 and 21±4 degrees, respectively (p< 0.010). Ankle plantar flexion motion averaged 23±11, 38±10 and 47±7 degrees (p<0.010). The association between talar declination and calcaneal inclination angles with ankle plantar flexion range of motion is strongest in participants with neuropathic midfoot deformity. Participants with talonavicular and calcaneocuboid dislocations result in the most severe restrictions in ankle joint plantar flexion and subtalar joint inversion motions.

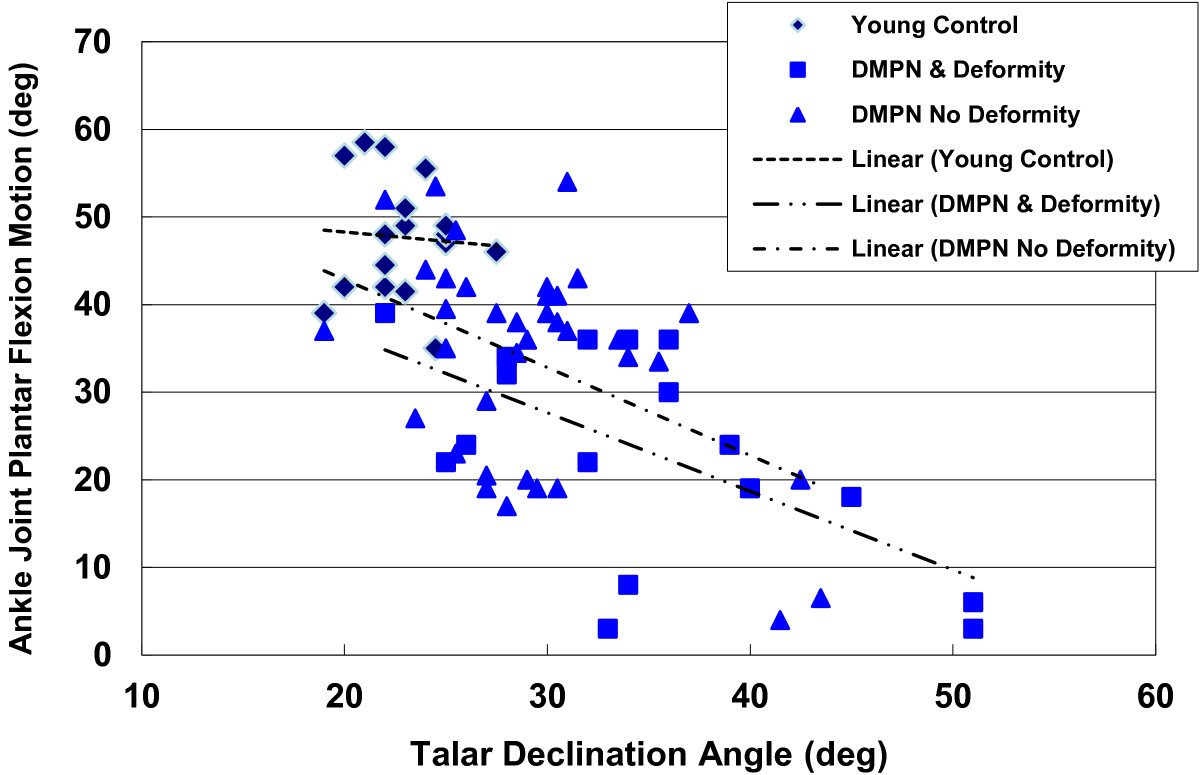

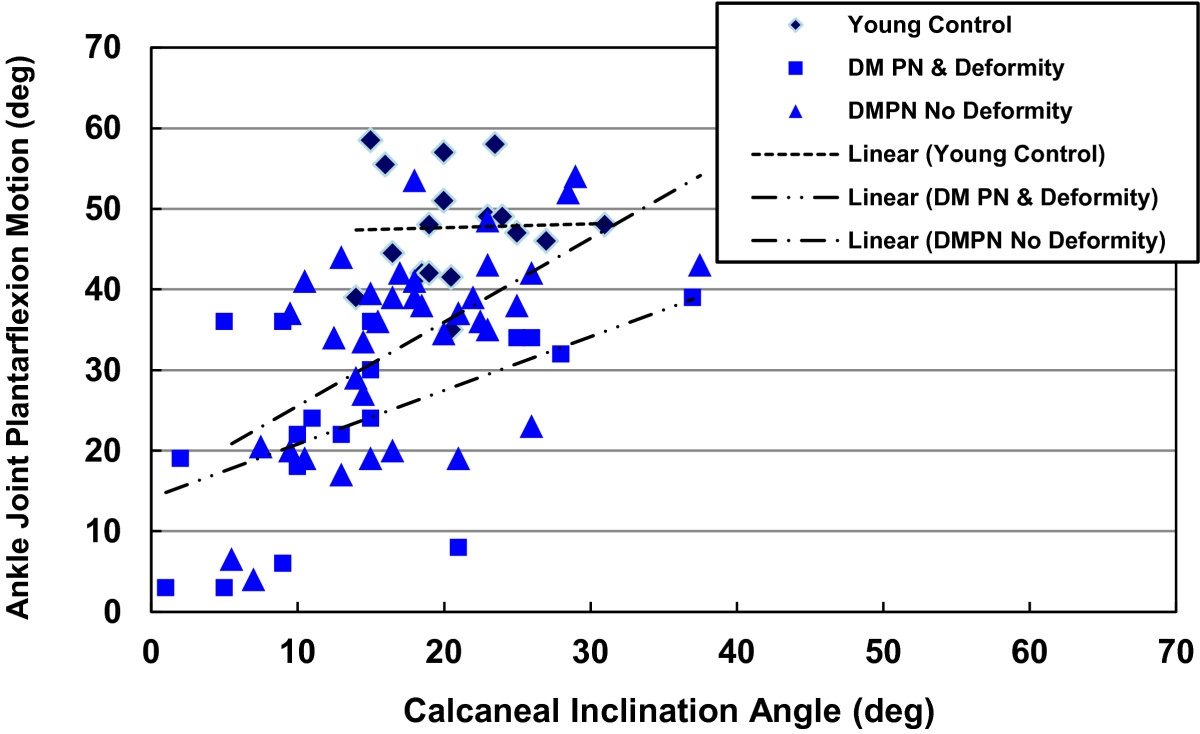

An increasing talar declination angle and decreasing calcaneal inclination angle is associated with decreases in ankle joint plantar flexion motion in individuals with neuropathic midfoot deformity due to CN that may contribute to excessive stresses and ultimately plantar ulceration of the midfoot.
Sinacore DR, Bohnert KL, Hastings MK, Johnson JE: Midfoot kinetics characterize structural polymorphism in diabetic foot disease. Clin Biomech. 2008, 23: 653-661. 10.1016/j.clinbiomech.2007.05.006. CrossRef
Hastings MK, Johnson JE, Strube MJ, Hildebolt CF, Bohnert KL, Prior FW, Sinacore DR: Progressive foot deformity evident in neuropathic (Charcot) arthropathy at one and two years. J Bone Joint Surg Am. in press
Thompson RC, Clohisy DR: Deformity following fracture in diabetic neuropathic osteoarthropathy. J Bone Joint Surg Am. 1993, 75-A: 1765-1773.
Younger AS, Sawatzky B, Dryden P: Radiographic assessment of adult flatfoot. Foot Ankle Int. 2005, 26: 820-825. PubMed
Prior F, Commean P, Ju T, Hastings M, Hildebolt C, Sinacore D: Developing a biomarker for neuropathic arthropathy in diabetic patients. Xplore I Life Science Systems and Application Workshop. 2007, Bethesda MD, 13-16. doi:IEEE Xplore DOI 10.1109/LSSA.2007.4400873
Eichenholtz SN: Charcot Joints. 1966, Springfield, Ill: Charles C Thomas, Publisher
Shibata T, Tada K, Hashizume C: The results of arthrodesis of the ankle for leprotic neuroarthropathy. J Bone Joint Surg Am. 1990, 72: 749-56. PubMed
Mueller MJ, Diamond JE, Delitto A, Sinacore DR: Insensitivity, limited joint mobility, and plantar ulcers in patients with diabetes mellitus. Phys Ther. 1989, 69: 453-459. PubMed
Diamond JE, Mueller MJ, Delitto A, Sinacore DR: Reliability of a diabetic foot evaluation. Phys Ther. 1989, 69: 797-802. PubMed
Hastings MK, Sinacore DR, Mercer-Bolton N, McCormick JJ, Hildebolt CF, Prior FW, Johnson JE: Precision of foot alignment measures in Charcot arthropathy. Foot Ankle Int. 2011, 23 (9): 867-72. CrossRef
Mueller MJ, Sinacore DR, Hastings MK, Strube MJ, Johnson JE: Effects of Achilles tendon lengthening on neuropathic plantar ulcers: a randomized clinical trial. J Bone Joint Surg Am. 2003, 85: 1436-1445. PubMed
Lin SS, Lee TH, Wapner KL: Plantar forefoot ulceration with equines deformity of the ankle in diabetic patients: the effect of tendo-Achilles lengthening and total contact casting. Orthopedics. 1996, 19: 465-475. PubMed
Seibel MO: Foot Function: A programmed text. 1988, Baltimore: Williams and Wilkins
