Can EQ-5D-3L utility values of low back pain patients be validly predicted by the Oswestry Disability Index for use in cost-effectiveness analyses?

Individual patient data included in this study originated from four previously conducted prospective studies; i.e., the minimal interventional treatments (MINT) study, the rehabilitation after lumbar disk surgery (REALISE) study, the Nijmegen Decision Tool study, and a study evaluating a treatment-based classification system [23‐32]. These studies were conducted among sub-acute and chronic LBP patients treated in primary care, secondary care, and/or tertiary care. For all patients, various sociodemographic variables were assessed at baseline, and both the ODI and EQ-5D-3L utility values were assessed at baseline and at one or more follow-up moments. In total, 21,500 patients were included in these studies. For developing the models, only baseline data were used in the present study, because the proportion of participants with missing data was low at baseline (i.e., < 5%), thereby preventing the need for imputation of missing values. To assess the final models’ performance in a trial-based cost-effectiveness analysis setting, baseline as well as follow-up data were used of the MINT study [23‐25], and the treatment-based classification system study [29, 30].

The MINT study [23‐25], the REALISE study [31, 32], and the treatment-based classification system study [29, 30] obtained ethical approval from the Medical Ethics Committee of the Erasmus Medical Centre Rotterdam or Medical Ethics Committee of the VU University Medical Centre in Amsterdam. For the Nijmegen Decision Tool study [26‐28], ethical approval was not required, because the “Dutch Act on Medical Research involving Human Subjects” does not apply to screening questionnaires that are part of routine practice. More detailed information on the design and study population of the different studies is provided in Supplementary Appendix A.

Utility values were based on the EQ-5D-3L, which is a generic preference-based measure that asks participants to describe their health state on five health dimensions (i.e., mobility, self-care, usual activities, pain/ discomfort, and anxiety/depression) using three severity levels (i.e., no problems, moderate problems, and severe problems)[33]. The participants’ EQ-5D-3L health states were converted into utility values using the Dutch tariff[34]. Utility values are presented on a continuous scale that is anchored at 1 (indicating full health) to 0 (indicating a state as bad as being dead). Negative values may also occur, which represent health states that are regarded as worse than a state that is as bad as being dead [10]. Dutch EQ-5D-3L utility values can range between − 0.33 and 1.

The ODI measures the limitations of a patient’s performance compared with that of a fit person, and consists of ten items assessing various aspects of daily living (e.g., lifting, walking, and traveling). Each item is scored on a six-point scale, ranging from 0 to 5. The overall ODI score was estimated by summing the values of all individual items, subsequently dividing this score by the total possible score, and multiplying this score by 100. The total score ranges from 0 to 100%, with higher scores indicate higher level of disability [19, 35]. For this study, the “sex life” (item 8) was not included, as this item is frequently omitted in applied studies as well [36‐38]. Including this item would have hampered the generalization of the results to a large number of LBP studies. The cross cultural adapted Dutch language version of the ODI version 2.1a was used in all studies included [39].

The following case-mix variables were included; age (years), gender (male/female), education level (low/moderate/high), living together with a partner (yes/no), type of LBP (sub-acute/chronic), setting (primary care/secondary care/ tertiary care), and back pain (Numeric Rating Scale (NRS: 0–10) Pain score: low 0–3, moderate 4–6, and severe 7–10) [40]. Given error proneness of overly detailed models and benefits of ease of use, NRS scores were categorized using cut-off points from an earlier conducted study, which categorized NRS pain scores based on pain-related interference with functioning in patients with chronic musculoskeletal pain [41]. These variables were included, because they were expected to increase the predictive value of the models [42‐47] and to be measured in most applied studies, thereby increasing applicability of the models.

Baseline characteristics were described using frequencies and percentages for categorical variables and means and standard deviations for continuous variables. Prior to the development of the models, linearity and additivity assumptions (i.e., normally distributed residuals, homoscedasticity, influential cases and outliers) were assessed using diagnostic plots (i.e., scatterplot, density plot, and boxplots), and diagnostic tests (e.g., Grubbs test). Pearson’s correlation coefficient was used to assess the strength of the linear relationship between the patients’ EQ-5D-3L based utility values and ODI total scores. To assess the agreement between the EQ-5D-3L and the ODI the Intra Class Correlation (ICC)was calculated using a two-way random effects model.

Models were developed using two regression techniques; i.e., Ordinary Least Squares (OLS) regression and Tobit regression (i.e., censored or truncated regression). OLS regression was included, because it is still one of the most frequently used linear modeling techniques. OLS regression is used to estimate the strength of the association between a continuous outcome variable and one or more independent variables [48]. OLS, however, does not take into account the bounded nature of utility values which can be accounted for in a Tobit regression [49]. This model can estimate linear relationships between variables, where the range of the dependent variable is constrained. This is done using a so-called latent variable that accounts for the fact that the true independent variable is—in our case—bounded at 1. Hereby, biased and inconsistent estimates, that may occur when using OLS regression, may be prevented [50].

For both the OLS and Tobit model, three different regression models were developed: (1) including the overall ODI score as independent variable, (2) using all nine ODI items scores as independent variables and assuming them to be continuous, and (3) using all nine ODI items scores as independent variables and assuming them to be ordered. This resulted in six different models: (1) OLS, with the total ODI score, (2) OLS, with the ODI item scores as continuous variables, (3) OLS, with the ODI item scores as ordinal variables, (4) Tobit model, with the total ODI score, (5) Tobit model, with the ODI item scores as continuous variables, (6) Tobit model, with the ODI item scores as ordinal variables. To assess which variables increased the predictive value of the models, a bi-directional stepwise selection procedure [51], using Akaike Information Criterion (i.e., the trade-off between the goodness of fit of the model and the simplicity of the model) [52], with a 5% significance level was used. Stepwise selection combines the elements of forward and backward selection by sequentially adding variables, based on the most contributing predictors, and omitting variables that no longer provide an improvement in the model fit after adding a new variable to the model. Final models only included case-mix variables that increased the predictive value.

The original dataset was split into a training sample (70%), and a validation sample (30%) using the ‘create Data Partition’ function in R. This function creates a balanced split of the data by performing a stratified random split of the data based on the mean of the dependent variable, which leads to a comparable mean EQ-5D-3L utility value in both the training and validation dataset. After developing the models in the training sample, their performance was assessed in the validation sample using the RMSE (i.e., the absolute fit of the model) and the adjusted R² (i.e., the relative fit of the model). The minimal important difference (MID) of the EQ-5D-3L was used to determine an acceptable RSME, which was set at a cut of point of 0.03 [53]. A correlation of 0.5 or higher (i.e., a relatively moderate correlation as the R squared indicates that about half of the variance of the utility values is explained by the ODI) was considered sufficient for performing regression analysis. Recommended models were selected based on parsimony, which is the trade-off between simplicity of the model (i.e., low AIC) and explanatory predictive power (i.e., high R²). To assess agreement between the actual and estimated EQ-5D-3L based utility values a Bland Altman analysis was performed for all models.

In addition to the main analysis, three sensitivity analyses (SA) were performed. In the first sensitivity analysis (SA1) the variable mental health status was added to the case-mix variables (SA1). SA1 was only performed on a sub-set of the data, as only one of the four datasets (i.e., the MINT study [23‐25]) assessed mental health using the Four Dimensional Symptom Questionnaire (4DSQ) [53], and only part of the sample (n = 4123) completed this questionnaire. The 4DSQ assesses four different aspects of mental health (i.e., distress, depression, anxiety, and somatisation), all of which were included in the models as a separate variable. In SA2, the variable living with a partner was omitted. In SA3 the patients’ EQ-5D-3L utility values were converted to EQ-5D-5L utility values using the reverse crosswalk (SA3) [55]. Reversed cross walk values make it possible to link EQ-5D-3L responses to EQ-5D-5L value sets, and can be used when 5L values are wanted, but only 3L data are available [55, 56]. The 5-level EQ-5D version is an adapted version of the EQ-5D-3L, which is known to be more sensitive and has less ceiling effects, including through changing the number of levels of perceived problems per dimension from 3 to 5[57].

To assess the models’ impact on cost-effectiveness outcomes, complete cases from two randomized controlled trials were used, i.e., empirical dataset 1 (n = 68; Apeldoorn et al. [29, 30]) and empirical dataset 2 (n = 424; Maas et al. [23‐25]). In both studies, QALYs were estimated based on both the actual EQ-5D-3L scores (i.e., actual QALY values) and based on the patients’ ODI scores (i.e., predicted QALY values). Agreement between the actual and estimated EQ-5D-3L based utility values was assessed by performing a Bland Altman analysis for each of the empirical datasets.

Then, full trial-based cost-effectiveness analysis were conducted for each of the six models as well as the patients’ actual QALY values (i.e., QALYs based on the measured EQ-5D-3L scores). For each trial-based cost-effectiveness analysis, mean differences in costs and QALYs between treatment groups were estimated using seemingly unrelated regression analyses. Incremental Cost-Effectiveness Ratios (ICERs) were calculated by dividing the difference in costs by the difference in effects. Uncertainty around cost and QALY differences was estimated using bootstrapping. The percentage of bootstrapped cost-effect pairs was reported per quadrant of the Cost-Effectiveness Plane (i.e., north east, south east, north west, and south west). Subsequently, Cost-Acceptability Curves (CEACs) were plotted. CEACs indicate an intervention’s probability of cost-effectiveness compared to control for a range of willingness-to-pay (WTP) values (i.e., thresholds of 0, 30,000 euro and 50,000). These probabilities were assessed on their decision sensitivity (i.e., how sensitive is the conclusion of a cost-effectiveness analysis is to using a particular statistical method) [58] . Analyses were performed in R software, version 3.4.0.

Out of the individual patient data that included 21,500 patients, 18,692 complete cases were included for analysis. These patients had sub-acute (n = 3248) or chronic LBP (n = 15,444). The mean age of the patients was 53.9 years (SD = 14.7, range 18.1–91.9) and 61% of the sample was female. The patients’ mean ODI score at baseline was 41.23 (SD = 15.4, range 0–100) and their mean baseline EQ-5D-3L based utility value was 0.46 (SD = 0.29, range -0.3290–1.00). More details on the patients’ characteristics are shown in Table 1.

The diagnostic plots showed a linear relationship between EQ-5D-3L based utility values and the ODI, and homogeneity of variance of the residuals. Even though the patients’ baseline EQ-5D-3L based utility values followed a bimodal distribution, the corresponding residuals were normally distributed. Hence, the normality of residuals assumption of linear regression was met. No outliers or influential cases were identified. Pearson’s correlation coefficient between the patients’ baseline EQ-5D-3L utility values and ODI total score was 0.63. The ICC showed an agreement of 0.23 between individual ODI items and EQ-5D-3L items.

An overview of the independent variables that were included in the final models, as well as their respective regression coefficients, can be found in Supplementary Appendix B. The case-mix variables age, gender, education, partner, and NRS were included in all models, whereas type of LBP was not included in any of the models. The variable setting was included in all models except for model 1 (i.e., OLS with ODI total scores). In the models using Tobit regression, 74 of the 13,087 observations in the training set were right censored.

The performance of the different models was more or less the same, with explained variances ranging from 45 to 51% and RMSEs ranging from 0.21 to 0.22. Based on parsimony of the models, model 2 and 5 seem most appropriate to use. More details on the performance of the different models are shown in Table 2.

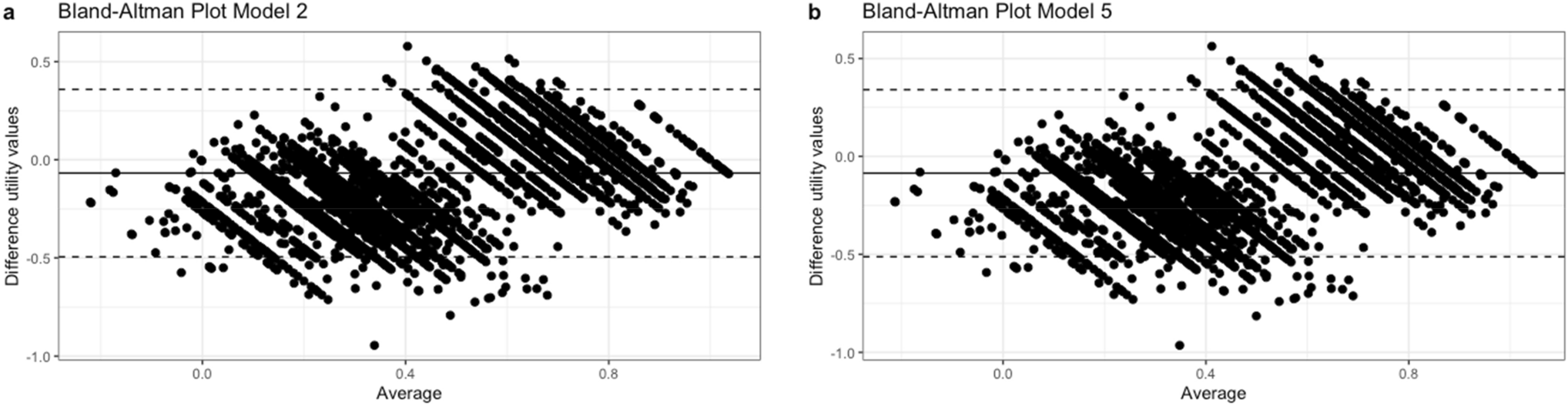

The mean difference between estimated and actual utility values for model 2 was -0.068 (95%CI -0.495, 0.359), and for model 5 -0.086 (95%CI -0.512, 0.341). Bland Altman plots of models 2 and 5 are shown in Fig. 1. The plots for other all models are presented in Supplementary Appendix C.

Adding mental health variable(s) to the models resulted in an increase of the explained variance of 2–4%, whereas the RMSE remained similar. Omission of the variable ‘living with a partner’ (SA2) did not change the models’ performance. Using the patients’ reversed cross-walked EQ-5D-5L utility values (SA3) improved the models’ explained variance by 3–4%, and the RMSE reduced with 0.06–0.07. More details on the results of the sensitivity analyses are provided in Supplementary Appendix D.

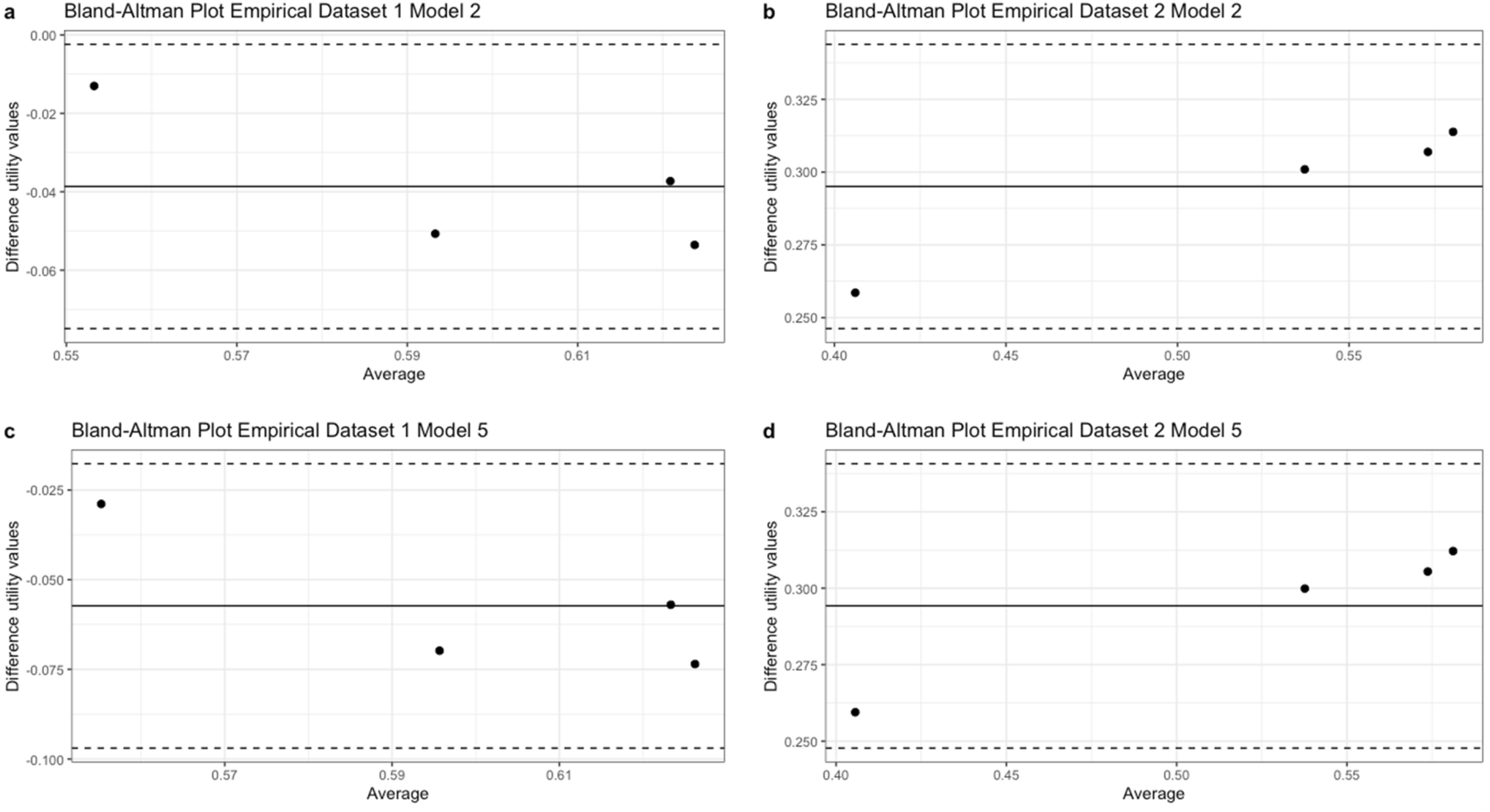

The mean difference between estimated and actual utility values for empirical dataset 1 model 2 was -0.039 (95%CI -0.075, -0.002), and for model 5 -0.057 (95%CI -0.097, -0.018). The mean difference between estimated and actual utility values for empirical dataset 2 model 2 was 0.295 (95%CI 0.246, 0.344), and for model 5 the mean difference was 0.294 (95%CI 0.248, 0.341). Bland Altman plots of models 2 and 5 for both empirical datasets are shown in Fig. 2. The plots for other all models are presented in Supplementary Appendix E.

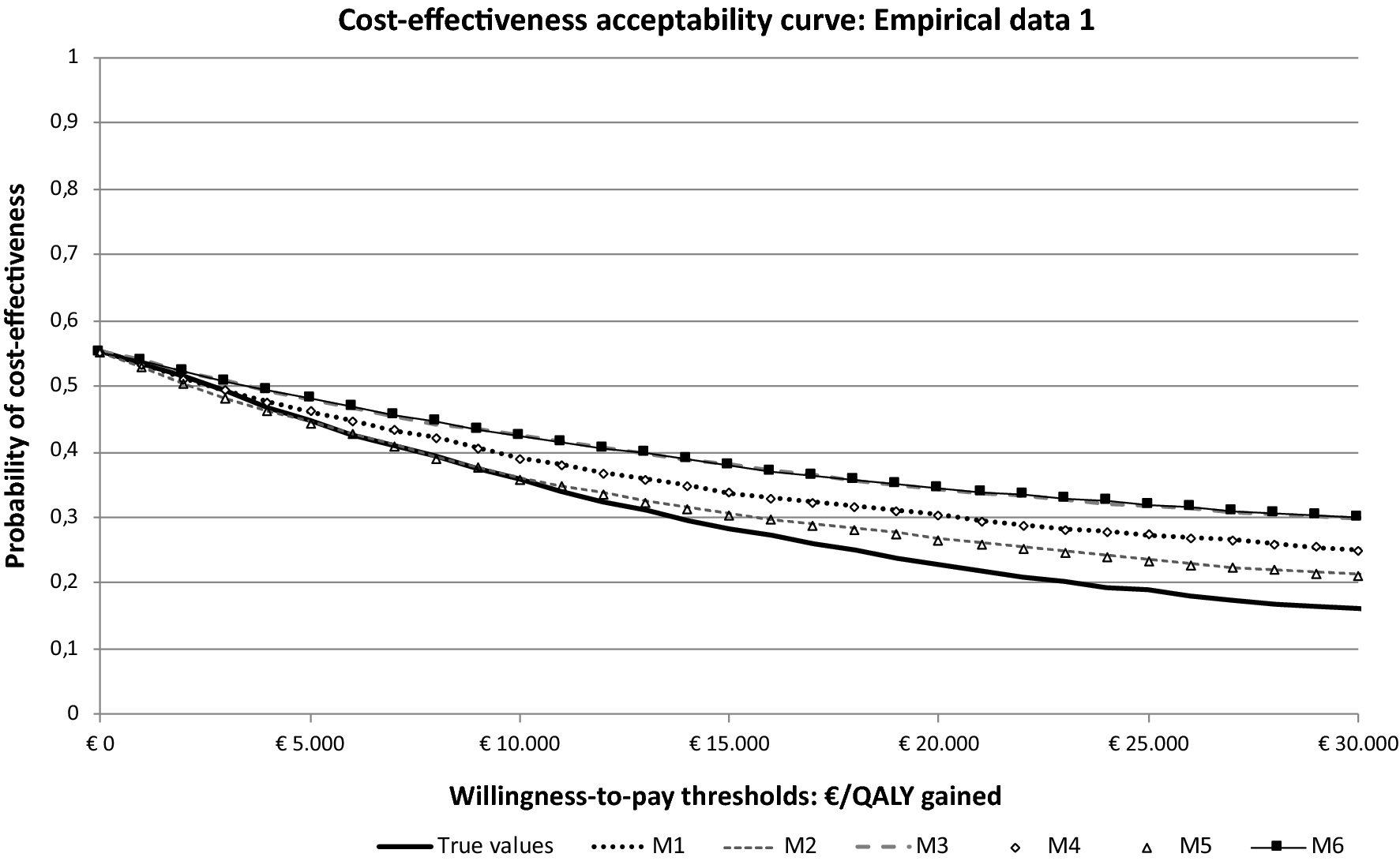

In both empirical datasets, the difference between the predicted and actual differences in QALYs was small for the two most parsimonious models (i.e., models 2 and 5:∆ ≤ 0.004) and the distributions of cost-effect pairs across the four quadrants of the cost-effectiveness plane were comparable. The cost-effectiveness acceptability curves based on both predicted and actual QALY values were also similar. The predicted probability of an intervention being cost effective at a willingness to pay of 50,000 was slightly higher in both models than the actual probabilities (i.e., 2–5% in model 2, and 3–5% in model 5). More details on the cost-effectiveness outcomes for all models in both empirical studies are shown in Table 3 and Fig. 3.

There were no large differences in the models’ performance between OLS and Tobit regression, nor between using the patients’ total ODI scores and ODI individual item scores. The explained variance of the developed models ranged from 45 to 51%, and the RMSE ranged from 0.21 to 0.22. Models 2 and 5 are recommended based on the best fit and parsimony. The models’ relatively low absolute fit (RMSE) indicates that they are not suitable for estimating utility values for individual patients. Nonetheless, they can be used to predict differences in LBP patients’ EQ-5D-3L utility values and QALY’s, as the systematic bias in mean scores does not affect the differences between the groups. Cost-effectiveness outcomes of models 2 and 5 based on predicted and actual values were similar. These findings enable researchers to perform a cost-effectiveness analysis with QALYs as the outcome measure, even if EQ-5D-3L data are missing.

Our findings regarding the performance measures are more or less in line with the previous study by Carreon et al. [20], who aimed to predict individual LBP patients’ EQ-5D-3L utility values based on their ODI scores. Their model performed slightly better in terms of its explained variance (i.e., R² was 61%) and its absolute fit (i.e., RMSE is 0.149), which is probably the result of a more homogenous study population, and therefore may indicate an overfitting of their model. Based on the RMSE, Carreon et al. [20] concluded that individual patients’ EQ-5D-3L utility values could not validly be predicted from their ODI scores. Although we agree with this conclusion, we would like to stress that a low RMSE does not necessarily mean that the models cannot be used in the context of an cost-effectiveness analysis. This is true, when the bias surrounding the predicted utility values does not translate into relevant differences in incremental QALYs and the probability of the intervention being cost-effective compared to the control group (i.e., decision-based validity) [58]. This may be explained by the fact that the bias is likely to be similar in the intervention and control groups, thereby not affecting incremental QALYs and CEACs [59].

To develop the models, a large sample of LBP patients from various settings (i.e., primary, secondary, and tertiary care) and with various complaint durations (i.e., subacute and chronic LBP) was used, which increases both the reliability and generalisability of the models. Moreover, next to OLS models, Tobit models were used to account for the constrained range of utility values [49, 50]. Although the added value of the Tobit model in this LBP population turned out to be rather limited, this might be different for LBP populations with milder symptoms, in which a larger share of patients is expected to report full health (i.e., a utility value of 1).

Our study also had some limitations. First, part of the sample was derived from two RCTs. Although RCT data may have limited generalisability, we chose to add these RCTs to our sample to create a more diverse sample and provide a better representation of the LPB population. Second, during the analysis, balanced data splitting was used to create the training and validation set. Although this balanced split provides better distribution of data then a random split, it might have been more appropriate to use K-fold cross validation[60]. Unfortunately, running the Tobit model using k-fold cross validation was not feasible as the R package for the Tobit model was not compatible with the K-fold package. In a post hoc analysis we developed and validated the OLS models with k-fold cross validation and this produced similar results as our main analysis (data not shown). We also expect this to be the case for the Tobit models. Third, EQ-5D-3L utilities were used instead of EQ-5D-5L utilities. This is a limitation because EQ-5D-5L is known to be more sensitive and therefore recommended in pharmacoeconomic guidelines. Nonetheless, some countries still use the EQ-5D-3L. Therefore, we preferred to use the current relatively large dataset with EQ-5D-3L utility values of nearly 20,000 patients for developing and validating the models, instead of using a relatively small dataset with EQ-5D-5L. As the performance measures in the sensitivity analysis using the EQ-5D-5L reversed cross walk were comparable with those of the EQ-5D-3L version, we expect that EQ-5D-5L values can also be validly estimated using ODI scores. Fourth, the models were based on Dutch utility values. Previous research has shown that there are differences in utilities, QALYs, ICERs, and CEACs between countries due to the use of different value sets per country [14]. Therefore, we added the regression coefficients of models 2 and 5 for different countries in Supplementary Appendix F. These regression coefficients are based on the available value sets (tariffs) for different countries, and can be used to calculate utility values and QALYs. Fifth, some data that were used were to assess the performance of the developed models in a trial-based cost-effectiveness analysis setting were also part of the training set. However, as this was only a small percentage of the total training set (3.1%), we do not expect it to have influenced the validity of our finding that the difference between the estimated and true QALYs is small. Last, for assessing the performance of the developed models in a trial-based cost-effectiveness analysis setting, we only used data of two clinical trials, both of which found the intervention far from being cost-effective. That is, the probability of the interventions being cost-effective was low regardless of the willingness-to-pay threshold. In datasets where the interventions’ cost-effectiveness is less conclusive, even small differences in the probability of an intervention being cost-effective might impact the overall conclusion of a study. Further research in the form of a simulation study, using simulated data to examine the generalisability beyond the datasets, is needed to assess the performance of the developed models in a wide range of trial-based cost-effectiveness analysis settings.

Our findings suggest that predictive modeling can be used to estimate utility values from disease-specific measures, such as the ODI among LBP patients, when assessing incremental costs per QALY gained (as part of a cost-effectiveness analysis) or differences in utilities between groups. This is helpful for assessing cost-effectiveness in trials that did not directly measure utilities. Given the relatively large RMSE (i.e., low absolute fit of the models) and the relatively low r-square value (i.e., low relative fit) it is strongly discouraged to use the developed models to estimate the utility values of individual patients. Further research is needed to validate the models in order to (1) assess whether these models yield comparable results in other empirical datasets on LBP interventions, especially in analysis on interventions that are expected not to be conclusive in their cost-effectiveness, and (2) to improve their generalisability among different LBP patients by external validation in another sample. This study focused on assessing the validity of predictive regression modeling in estimating EQ-5D-3L utility values from the ODI and the impact of these estimated utility values on cost-effectiveness analysis. Results show that this is feasible for estimating QALYs and ICERs, but not for estimating individual utility scores. Further research is needed to explore whether other mapping methods, such as response mapping approaches like non-parametric and multinomial logistic regression [16, 54, 55], result in better predictive accuracy in estimating individual utility values of preference-based measures, such as the EQ-5D. This is important because studies suggest these mapping methods might be better at preventing regression to the mean [61]. Additional research might not only result in more accurate estimated utility values, but would also provide insight into the relative performance of different methods to estimate these values.

In the meantime, researchers can use the developed models in their cost-effectiveness analysis when utility values are lacking. Of them, the OLS model (i.e., model 2) is recommended in samples in which only a small number of patients has a utility value of 1 at baseline or follow-up measurement, whereas the Tobit model (i.e., model 5) is recommended in samples in which a substantial part of the sample has a utility score at baseline or at follow-up measurement. Although it seems possible to estimate utility values from disease-specific measures it is important to stress that it is still preferred to use preference-based quality-of-life measurements when setting up new studies.
