Introduction
Attention-deficit/hyperactivity disorder (ADHD), characterized by developmentally-inappropriate inattention, hyperactivity and/or impulsivity as well as functional impairment (American Psychiatric Association, 2022), is an early-onset yet often lifelong, prevalent, and costly disorder. ADHD is typically diagnosed in the early school years (American Psychiatric Association, 2022) and its symptoms persist, in 50% of cases, at a diagnostic (Roy et al., 2016), and in 65% of cases, at an impairing (Faraone et al., 2006) level into adulthood. Worldwide, ADHD is diagnosed in ~ 5–9% of children and adolescents – hundreds of millions of youth (Danielson et al., 2018; Salari et al., 2023; Thomas et al., 2015) and ADHD-associated annual costs amount to hundreds of billions of dollars (Sciberras et al., 2022). Attenuating the personal and societal burden of ADHD necessitates improvement of early identification of at-risk individuals and of personalized prevention, which in turn necessitates improvements in understanding ADHD etiology.
Alterations or atypicalities in brain function and structure are at the center of conceptual frameworks explaining ADHD etiology (Barkley, 1997; Castellanos et al., 2006; Castellanos & Tannock, 2002; Halperin & Schulz, 2006; Sonuga-Barke, 2003; Sonuga-Barke et al., 2010) and ample data indicate differences between children and adults with and without ADHD in brain volume. Specifically, meta-analytic findings pooling region of interest brain volume (Valera et al., 2007) and voxel-based morphometry (VBM) (Ellison-Wright et al., 2008; Frodl & Skokauskas, 2012; Nakao et al., 2011; Norman et al., 2016) studies consistently indicate reduced volumes in individuals with ADHD in certain parts of the basal ganglia (caudate, putamen, globus pallidus). Albeit less consistently, results also suggest reduced volumes in the cerebrum, corpus callosum (splenium), insula, medial prefrontal cortex, ventromedial orbitofrontal cortex, and anterior cingulate cortex (Ellison-Wright et al., 2008; Frodl & Skokauskas, 2012; Nakao et al., 2011; Norman et al., 2016; Valera et al., 2007). More recently, larger samples allowed for the detection of case-control effect sizes observed in other psychiatric disorders and data showed reduced volumes in ADHD in regions beyond those observed previously, including in the accumbens, amygdala, hippocampus and intracranial volume (ICV) (Hoogman et al., 2017).
Indicative of clinical utility, altered brain volume, in turn, is associated with ADHD clinical features in clinical and in the general populations. Greater severity of symptoms is associated in clinical samples with smaller volumes of the caudate, cerebellum, and frontal and temporal gray matter (Castellanos et al., 2002) and in general population samples with smaller total volume (Hoogman et al., 2012). Both severity of symptoms and the ADHD syndrome are also associated in community samples with slower cortical thinning predominantly in prefrontal cortical regions, bilaterally in the middle frontal/premotor gyri, extending down the medial prefrontal wall to the anterior cingulate; the orbitofrontal cortex; and the right inferior frontal gyrus (Shaw et al., 2011).
Yet, the majority of available data on structural brain differences in children and adults with ADHD have been obtained in case-control designs. Case-control designs, although informative about the extent to which - at the group level - individuals with ADHD differ from individuals without ADHD, are less informative about the extent to which any given individual with ADHD is atypical. An emerging but robust body of work indicates the need to at least augment if not shift focus from between-groups comparisons to the assessment of differences at the individual level. Specifically, data show considerable within-group heterogeneity both in ADHD and in the general population (Braver et al., 2010; Buss, 1991; Fair et al., 2012) and thus suggest that personalization of behavioral medicine necessitates estimation and knowledge of differences at the individual level.
In case of anthropometric traits such as head circumference, height and weight, individual differences can be quantified against reference standards (i.e., normative growth charts). As disorders like ADHD, autism spectrum disorder (ASD), or schizophrenia are caused/ characterized by atypical brain development, the ability to quantify individual differences is at least comparably if not especially relevant in case of clinical neuroimaging. Yet, until most recently (Bethlehem et al., 2022; Rutherford et al., 2022), no brain development reference standards were available. Capitalizing on advances across neuroimaging and statistical techniques and on availability of large datasets, brain charts have been generated to define reference standards for structural brain measures including global features such as total cortical and subcortical gray matter volume, total white matter volume, and total ventricular cerebrospinal fluid (Bethlehem et al., 2022) as well as specific estimates for 188 different brain regions (Rutherford et al., 2022) across ages and sexes (Bethlehem et al., 2022; Rutherford et al., 2022). Data obtained for the development and validation of brain charts indicate the charts are appropriate for dissecting biological heterogeneity in clinical disorders (e.g., anxiety and depression; ADHD and ASD; and degenerative disorders) both in terms of global features (Bethlehem et al., 2022) and in summary metrics (representing deviation patterns across individual brain regions) (Rutherford et al., 2022) of brain development.
Current Study
As a next step towards demonstrating clinical potential of brain charts, the aim in the current study was to examine whether brain development reference standards can be applied for addressing specific questions in estimating clinical effects in a deeply phenotyped sample. Specifically, aim was to examine whether brain charts can be applied in a sample of adolescents to determine whether atypical brain region volumes predict ADHD at-risk status and severity of inattention (IA) and hyperactivity/impulsivity (H/I), accounting for the effects of symptoms of common comorbidities including anxiety, depression, and oppositional defiant disorder (ODD) as well as the effects of motion.
In addition to estimating effects of total cranial volume, we also modeled effects of individual subcortical regions. We elected to focus on subcortical rather than cortical regions for the following reasons. Available data are inconsistent with a key role of the prefrontal cortex (PFC) (and its interconnections with the striatum and other subcortical structures) in the causing of ADHD. First, in contrast to adults, most children with early frontal lobe damage do not exhibit ADHD symptoms and second, the normative developmental trajectory and emergence of ADHD is inconsistent with the ontogenetic development of the PFC or the executive functions it mediates (for review, see Halperin & Schulz, 2006). Conversely, data are consistent with a role of the PFC in the manifestation and remission of ADHD. The developmental trajectory of the PFC and the executive functions it mediates closely parallel the apparent attenuation of ADHD severity in adolescence and young adulthood (for review, see Halperin & Schulz, 2006). Further support for our focus on subcortical regions is provided by findings on noncortical neural dysfunction in causing ADHD. First, such dysfunction is present early in ontogeny. For example, early, pre- and perinatal brain insults alter norepinephrine metabolism in the hindbrain and dopamine innervation of the striatum, and the cerebellum is among the most vulnerable regions to early insult. These regions and the functions they mediate – including alertness and arousal (hindbrain); reinforcement and reward processing (striatum); and attention and temporal processing (cerebellum) are consistently implicated in ADHD, making them candidates for a key role in the cause of ADHD (for review, see Halperin & Schulz, 2006). Second, these dysfunctions remain relatively static throughout the lifetime (but become compensated in adolescence and young adulthood by “top-down” regulatory or executive control) and third, they are not associated with the attenuation of ADHD severity across development (for review, see Halperin & Schulz, 2006). In combination with these conceptual considerations as well as meta-analytic data consistently indicating reduced subcortical volumes in ADHD (Ellison-Wright et al., 2008; Frodl & Skokauskas, 2012; Nakao et al., 2011; Norman et al., 2016) but less consistently indicating reduced cortical volumes in ADHD (Ellison-Wright et al., 2008; Frodl & Skokauskas, 2012; Nakao et al., 2011; Norman et al., 2016; Valera et al., 2007), our focus herein is on modeling effects of individual subcortical regions.
Psychiatric comorbidity in ADHD is less the exception and more the rule: common comorbidities in ADHD observed across clinical and community samples include anxiety disorders, depression, and ODD, with comorbidity rates around 25% for anxiety (D’Agati et al., 2019), 12–50% for depression (Gnanavel et al., 2019), and 30–50% for ODD (Gnanavel et al., 2019). To avoid introduction of confounds, comorbidities were accounted for in analyses.
As ADHD diagnostic criteria and corresponding interview and scale measures indicate ADHD is associated with locomotor hyperactivity (though behavioral data are mixed (Castellanos & Tannock, 2002), ADHD may be associated with greater motion in the MRI (Gilmore et al., 2021; Pardoe et al., 2016) and this may confound measures of brain anatomy (Alexander-Bloch et al., 2016; Reuter et al., 2015). Thus, effects of motion were also accounted for in analyses.
Analyses were replicated, as in (Rutherford et al., 2023), using the output of traditional MRI preprocessing methods (hereafter: raw data) to compare findings obtained using normative modeling with those obtained not applying reference standards.
Methods
General Procedure
Data analyzed in the current study were obtained during the first three assessment sessions of the second (baseline, i.e., T1) year of a larger longitudinal project, the Budapest Longitudinal Study of ADHD and Externalizing Disorders (BLADS) study. Exclusionary criteria were cognitive ability ≤ the percentile rank corresponding to a full-scale IQ score of 80 (Wechsler, 2003, 2008); meeting diagnostic criteria for autism spectrum (severity ≥ 2), bipolar, obsessive-compulsive, or psychotic disorder on the Structured Clinical Interview for DSM-5 Disorders, Clinical Version (SCID-5 CV) (First et al., 2016); neurological illness; and visual impairment (uncorrected, impaired vision < 50 cm).
Parents and participants provided written informed consent (and assent) and then participants underwent a series of tests, including assessment of cognitive ability and a clinical interview, followed by genetic sampling and questionnaires (first assessment session) and an EEG measurement and questionnaires (second assessment session), and an MRI measurement (third assessment session). Parents completed questionnaires using the Psytoolkit platform (Stoet, 2010, 2017) and the Qualtrics software, Version June 2020–March 2021 (Qualtrics, Provo, UT). This research was approved by the National Institute of Pharmacy and Nutrition (OGYÉI/27,030/2020) and has been performed in accordance with the ethical standards laid down in the 1964 Declaration of Helsinki and its later amendments.
ADHD classification was determined using parent-report on the ADHD Rating Scale-5 (ARS-5) (DuPaul et al., 2016). To be classified as at-risk for ADHD, adolescents had to meet a total of ≥ 4 of the Diagnostic and Statistical Manual of Mental Disorders (5th ed.; DSM-5) ADHD symptoms (from either the IA or the H/I domain).
Participants
Participants were adolescents from the larger community sample of adolescents oversampled for ADHD who participated in the MRI measurement. The analysis sample for this study was comprised of N = 140 adolescents.
Measures
Adolescent Self-Report Measures
Anxiety Problems and Depressive Problems
The Youth Self-Report (YSR) (Achenbach & Rescorla, 2001) is a 112-item self-report questionnaire for adolescents (ages 11–18) assessing aspects of adaptive and impaired functioning. The YSR measures adaptive functioning through competence scales: academic performance, activities, and social competence and impaired functioning via Diagnostic and Statistical Manual of Mental Disorders (DSM)-oriented scales: anxiety problems, depressive problems, somatic problems, attention-deficit/ hyperactivity problems, oppositional defiant problems, and conduct problems; as well as syndrome scales: anxious/depressed, depressed/withdrawn, somatic complaints, attention problems, social problems, thought problems, aggressive behavior, rule-breaking behavior, externalizing problems and internalizing problems. Respondents rate items on a 3-point scale (0 – ‘Not True’, 1 – ‘Somewhat or Sometimes True’, 2 – ‘Very True or often True’).
Prior findings indicate both the original (Achenbach & Rescorla, 2001) and the Hungarian translation of the YSR (Rádosi et al., 2023) have acceptable psychometric properties.
In the current study, the anxiety and the depressive problems subscales were used in analyses.
Parent-report Measures
ADHD Risk and Severity
The ADHD Rating Scale-5 (ARS-5) (DuPaul et al., 2016) is a 30-item parent- and teacher-report measure of the past 6-month presence and severity of DSM-5 ADHD symptoms (9 inattentive symptom items and 9 hyperactivity/impulsivity symptom items) and functional impairment across six domains: relationship with significant others (family members for the home version), relationship with peers, academic functioning, behavioral functioning, homework performance and self-esteem (2 × 6 impairment items, with one set corresponding to inattention and one to hyperactivity/impulsivity). Parents and teachers rate items on a four-point scale ranging in case of symptoms from 0 (never or rarely) to 4 (very often) and in case of impairment from 0 (no problem) to 3 (severe problem), with higher scores indicating more severe symptoms and impairment. The ARS-5 is comprised of two symptoms scales, Inattention and Hyperactivity-Impulsivity, and a Total Scale. The ARS-5 is suitable for ages 5–17 years, with separate forms for children (5–10 years) and adolescents (11–17 years) and age-appropriate and DSM-5 compatible descriptions of symptoms. In the current study, the adolescent home (i.e., parent-report) version was used.
Prior findings indicate both the original (DuPaul et al., 2016) and the Hungarian translation of the ARS-5 (Bunford et al., 2023; Hámori et al., 2023; Rádosi et al., 2023) has acceptable psychometric properties. In the current sample, the ARS-5 total (ω = 0.950), as well as the inattention (ω = 0.947) and hyperactivity/impulsivity (ω = 0.910) subscales exhibited acceptable internal consistency. In the current study, the ARS-5 was used for ADHD classification and the total score as well as the IA and H/I subscales were used in statistical analyses.
Oppositional Defiant Disorder
The Disruptive Behavior Disorders-Rating Scale (DBD-RS) (Pillow et al., 1998) is a 45-item parent- and teacher-report measure of the presence and severity of DSM-III-R ADHD symptoms (9 inattentive symptom items and 9 hyperactivity/impulsivity symptom items), oppositional defiant disorder (8 items), and conduct disorder symptoms (15 items). Parents and teachers rate items on a four-point scale ranging from 0 (not at all) to 3 (very much), with higher scores indicating more severe symptoms. In the current study, the parent-report form was used and the oppositional defiant disorder items were of interest. Because items reflect DSM-III-R symptom wording, items were modified to match DSM-5 symptom wording (American Psychiatric Association, 2022).
Prior findings indicate both the original (Van Eck et al., 2010) and the Hungarian translation of the DBD-RS (Rádosi et al., 2023) have acceptable psychometric properties. In the current sample, the ODD subscale exhibited ω = 0.916 internal consistency. In the current study, the ODD subscale was used in analyses.
MRI Data Acquisition and Preprocessing
Structural imaging was performed using a magnetization-prepared rapid gradient-echo (MPRAGE) scan with 2-fold in-plane GRAPPA acceleration on a Siemens Magnetom Prisma 3T MRI scanner with the standard Siemens 32-channel head coil using the following parameters: isotropic 1 mm3 spatial resolution, repetition time (TR) = 2300 ms, echo time (TE) = 3 ms, inversion time (TI) = 900 ms, flip angle (FA) = 9°, field of view (FOV) = 256✕256 mm.
Subcortical segmentation of T1-weighted structural images and estimation of morphometric statistics was performed using FreeSurfer 7.1.1 with the built-in probabilistic atlas (Fischl et al., 2020). A novel normative modeling framework (Rutherford et al., 2022) was used to calculate deviation z-scores for each subcortical volume, total subcortical gray matter volume and left- and right hemispheric mean cortical thickness. The deviation z-scores were averaged between hemispheres for the subcortical ROIs. For estimation we used the lifespan_57K_82sites model (Rutherford et al., 2022) and adapted it to our own site using an in-house structural MRI dataset. For this procedure we used the publicly available codes and documentation (https://github.com/predictive-clinical-neuroscience/braincharts) provided by Rutherford et al. We used our in-house dataset as the adaptation set and the current study dataset as the test set. Our in-house dataset consisted of T1-weighted images of N = 379 control (i.e. without history of neurological or psychiatric illness) participants (n = 230 female, Mage=41.95, SD = 19.02, range: 18–80 years) collected across our studies conducted during recent years. Each scan was performed on the same scanner at our site, using the same MPRAGE protocol as for the analyzed dataset.
Analytic Plan
Logistic and linear regression models with Elastic-Net regularization (both L1 and L2 penalty terms added) were used to determine whether and how atypical brain morphometry is associated with ADHD at-risk status and IA and H/I severity. As ADHD risk status was determined using ADHD severity, first, we modeled ADHD risk status and second, we followed-up significant models with more in-depth analyses of IA and H/I severity modeled separately. Hyperparameter tuning was performed using 5-fold cross validation with 20 l1_ratio values between 0 and 1 on an inverse logarithmic scale and 20 automatically selected values for regularization strength. For the logistic regression classifier, stratified cross validation and balanced class weighting were used. The best hyperparameter combination was selected using Area Under the Receiver Operating Characteristic Curve (AUC) scores for the logistic and coefficient of determination (R2) scores for the linear regression models. Models were refitted and evaluated on the whole dataset to calculate final coefficients and goodness of fit measures (AUC and R2 scores). Statistical evaluation of the results was performed using two-tailed permutation tests with 1000 random permutations and an alpha level of 0.05.
Modeling was performed on both deviation z-scores of normative brain morphometry and on raw morphometric estimates. Since deviation z-scores are inherently corrected for age and sex, age and sex were only included as additional covariates when using raw morphometric estimates. Global models included the left- and right hemispheric mean cortical thickness and the total volume of subcortical gray matter. Subcortical models included the volumes of 8 subcortical ROIs (Thalamus, Caudate, Putamen, Pallidum, Hippocampus, Amygdala, Accumbens, Ventral Diencephalon) averaged between hemispheres. All models included the intracranial volume (ICV) as control for the variance in total brain size. To control for the possible effects of participant motion, we included the Euler number (calculated from the FreeSurfer output) as covariate in all models, as it was shown to be highly correlated with manual ratings of motion artifacts (Rosen et al., 2018). Furthermore, based on findings of a recent study (Provins et al., 2023) performed on our T1-weighted motion controlled dataset (Nárai et al., 2022), SNR derived image quality metrics (IQMs) of MRIQC 0.16.1 (Esteban et al., 2017), namely SNR and SNRd for gray matter (GM), white matter (WM) and cerebrospinal fluid (CSF) were also included as motion covariates in all models. Anxiety, depression, and ODD scores were also controlled for. As ODD was highly correlated with dependent variables and thus could mask effects of other predictors, each model was also fitted without the ODD variable to obtain a more in-depth understanding of the observed results. All features were standardized to aid interpretability of coefficients and modeling was performed in Python (3.11.4) using the scikit-learn (1.3.0) (Pedregosa et al., 2011) package.
Data Availability
The datasets generated and/or analyzed during the current study are available from the corresponding authors on reasonable request.
Results
Descriptive Results
In the analysis sample of N = 140 adolescents (Mage=15.686, SD = 1.029; 38% female), families represented a slightly above-average socioeconomic background (average family net income was in the 500 001-700 000 HUF/month range, with average family net income in Hungary being 147 000 HUF/month) (Hungarian Central Statistical Office, n.d.). For additional descriptive results, see Table 1.
Table 1
Descriptive results for the analysis sample
Descriptive results for the analysis sample. | |||||
|---|---|---|---|---|---|
at-risk for ADHD n = 59 (42%) | not at-risk for ADHD n = 81 (58%) | ||||
age (M, SD) | sex (%female) | ODD (%meets diagnostic criteria) | age (M, SD) | sex (%female) | ODD (%meets diagnostic criteria) |
15.541, 1.039 | 25 | 39 | 15.791, 1.015 | 47 | 14 |
Combined Sample | |||||
ADHD research diagnosisa n (%) | ODD research diagnosisb n (%) | Anxiety Problems T score (M, SD) | Depression Problems T score (M, SD) | PRI percentile rank (M, SD) | VCI percentile rank (M, SD) |
38 (27) | 34 (24) | 54.860, 6.423 | 55.74, 7.883 | 57, 25.196 | 70, 22.305 |
Of adolescents at-risk for ADHD, n = 12 were currently prescribed ADHD pharmacological treatment and n = 2 were currently prescribed non-ADHD pharmacological treatment. Of those prescribed ADHD pharmacological treatment, 7 were prescribed stimulants, 6 were prescribed nonstimulants (1 was prescribed both), and two took a 24-hour medication hiatus prior to the MRI session, three did not, and seven did not indicate whether they took a hiatus.
Independent samples Mann-Whitney U tests indicated at-risk and not at-risk groups differed on IA, H/I, and ODD scores (all pFDRcorr<0.001) with those at-risk scoring higher on these measures. Groups did not differ on age, SES, perceptual or verbal reasoning, anxiety, or depression scores (all pFDRcorr>0.084).
Normative Modeling Results
We initially used global measures of brain morphometry to investigate whether cortical thickness or subcortical gray matter volume are associated with ADHD at-risk status. Global models included the normative volume of total subcortical gray matter, the normative mean cortical thickness (separately for the two hemispheres), total ICV, motion covariates, anxiety and depression scores. The model including ODD scores predicted ADHD at-risk status (AUC = 0.879, p = .001), with a negative association of total subcortical gray matter volume (coef = -0.742, p = .009) and a positive association of ODD scores (coef = 1.63, p = .001) with ADHD at-risk status (Figure S1). The effect of non-interest of CSF SNR was also significant (coef = -0.806, p = .001). Despite not reaching a significant model fit (AUC = 0.71, p = .057), the model without ODD scores predicted ADHD at-risk status, with a negative association of total subcortical gray matter volume (coef = -0.306, p = .013) with ADHD at-risk status. The effects of non-interest of CSF SNR (coef = -0.364, p = .011) and GM SNRd (coef = -0.149, p = .039) were also significant. Cortical thickness was not associated with ADHD at-risk status in either model (all ps > 0.215).
To further investigate the effect of subcortical gray matter volume on ADHD at-risk status, we defined subcortical models with the normative volume of subcortical ROIs as predictors, along with ICV, motion covariates, anxiety, and depression scores. In estimating ADHD at-risk status, the model including ODD scores predicted ADHD at-risk status (AUC = 0.858, p = .001), with a negative association of bilateral amygdala volume (coef = -0.136, p = .017), a negative association of bilateral ventral diencephalon (coef = -0.069, p = .047) and a positive association of ODD scores (coef = 0.836, p = .001) with ADHD at-risk status (Fig. 1). The effect of non-interest of CSF SNR was also significant (coef = -0.209, p = .009). Despite not reaching a significant model fit (AUC = 0.714, p = .107), the model without ODD scores predicted ADHD at-risk status, with a negative association of bilateral amygdala volume (coef = -0.312, p = .007) with ADHD at-risk status. The effect of non-interest of CSF SNR was also significant (coef = -0.252, p = .011).

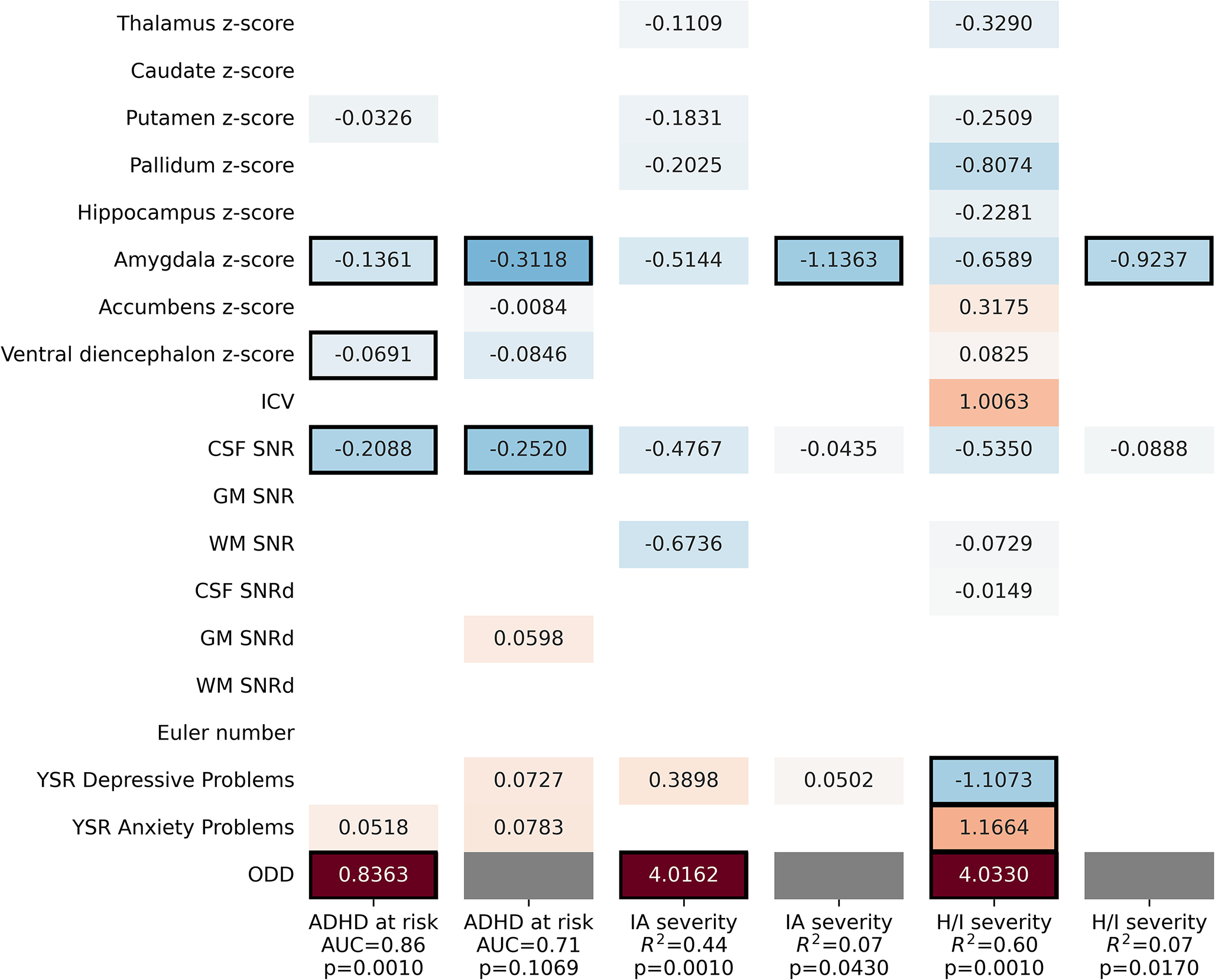

Fig. 1
Modeling ADHD at risk status, IA and H/I severity using normative volumes of subcortical ROIs. Cells with black frames indicate significant (p < .05) coefficients and white cells indicate zero coefficients. Gray cells mark where the ODD predictor variable was omitted from the model
×
![]()
In estimating severity of symptoms, models with ODD scores predicted IA (R2 = 0.442, p = .001) and H/I (R2 = 0.601, p = .001), with an association of ODD with IA (coef = 4.016, p = .001) and H/I (coef = 4.033, p = .001) and also of anxiety (coef = 1.166, p = .037) and depression (coef = -1.107, p = .033) scores with H/I. The models without ODD also predicted IA (R2 = 0.069, p = .043) and H/I (R2 = 0.073, p = .017), with a negative association of bilateral amygdala volume with IA (coef = -1.136, p = .003) and H/I (coef = -0.924, p = .001).
The inclusion of subcortical volumes in the ADHD risk model did not increase model fit (AUC) with ODD but did increase model fit without ODD by 0.06; in the IA severity model increased model fit (R2) by 0.01 with ODD and by 0.07 without ODD; and in the H/I severity model increased model fit (R2) by 0.06 with ODD and by 0.07 without ODD (see Figure S2 for the baseline model).
Normative modeling results were essentially replicated when omitting adolescents at-risk for ADHD who took ADHD medication (n = 12) and who took ADHD medication or another psychotropic medication (n = 14) (see Figure S4 and S5 for detailed results).
Raw Modeling Results
Subcortical models were recreated using the raw volumes of subcortical ROIs to assess whether and how findings obtained using normative modeling differ from those obtained not applying reference standards. In estimating ADHD at-risk status, the model including ODD scores predicted ADHD at-risk status (AUC = 0.876, p = .001), with a positive association of sex (boys scored higher; coef = 0.315, p = .007) and of ODD scores (coef = 0.850, p = .001) with ADHD at-risk status (Fig. 2). The effects of non-interest of CSF SNR (coef = -0.304, p = .013) and GM SNRd (coef = 0.102, p = .043) were also significant. The model without ODD scores predicted ADHD at-risk status (AUC = 0.776, p = .005) with a negative association of bilateral amygdala volume (coef = -0.384, p = .007) and a positive association of sex (boys scored higher; coef = 0.531, p = .003) with ADHD at-risk status. The effects of non-interest of CSF SNR (coef = -0.266, p = .023) and GM SNRd (coef = 0.208, p = .013) were also significant.

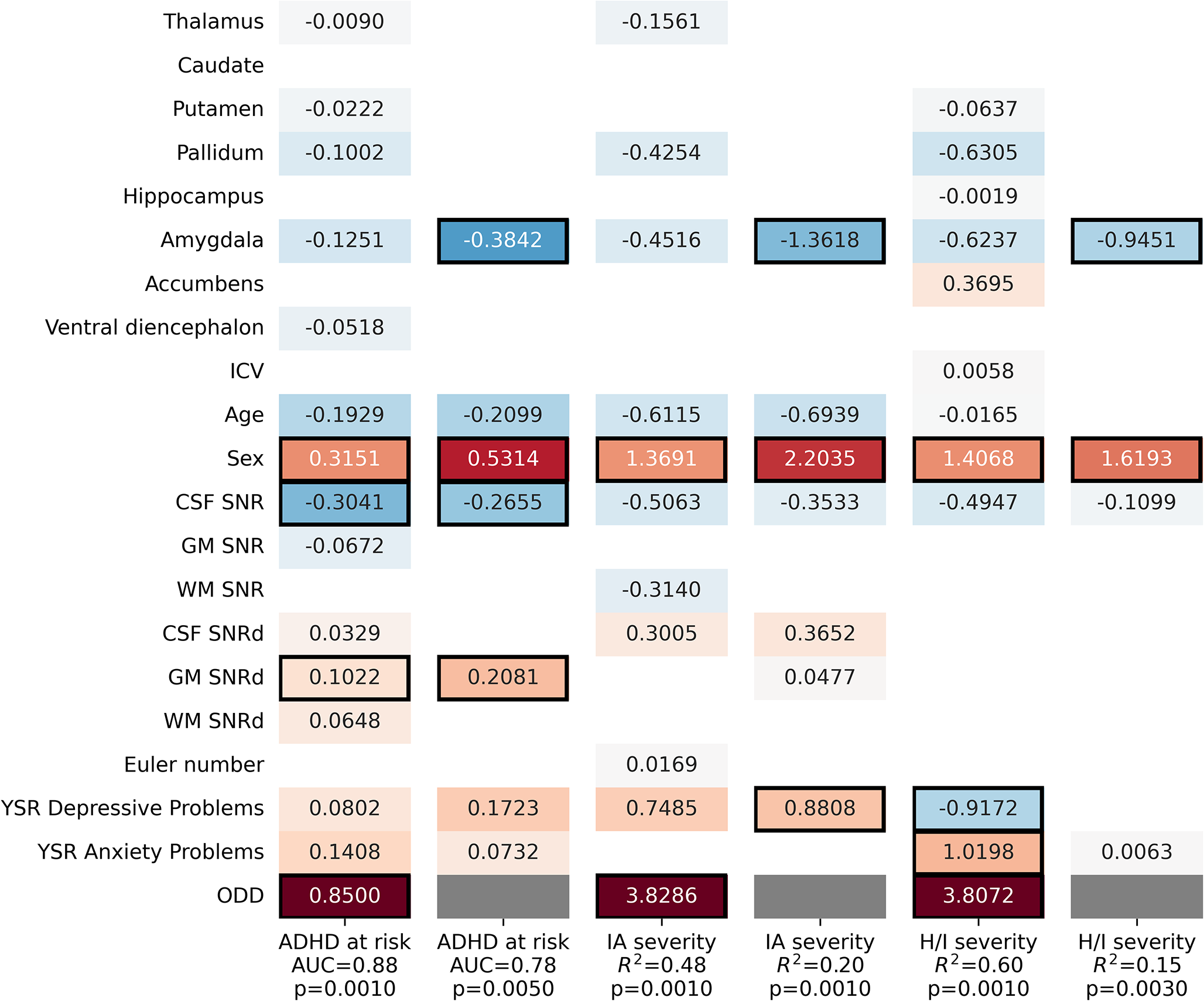

Fig. 2
Modeling ADHD at risk status, IA and H/I severity using raw volumes of subcortical ROIs. Cells with black frames indicate significant (p < .05) coefficients and white cells indicate zero coefficients. Gray cells mark where the ODD predictor variable was omitted from the model
×
![]()
In estimating severity of symptoms, models with ODD scores predicted IA (R2 = 0.478, p = .001) and H/I (R2 = 0.597, p = .001), with an association of ODD with IA (coef = 3.827, p = .001) and H/I (coef = 3.807, p = .001); of sex with IA (boys scored higher; coef = 1.369, p = .005) and H/I (coef = 1.407, p = .013); and of anxiety (coef = 1.020, p = .047) and depression (coef = -0.917, p = .037) scores with H/I. The models without ODD predicted IA (R2 = 0.204, p = .001) and H/I (R2 = 0.148, p = .003), with a negative association of bilateral amygdala volume with IA (coef = -1.362, p = .001) and H/I (coef = -0.945, p = .003); a positive association of sex with IA (boys scored higher; coef = 2.204, p = .001) and H/I (coef = 1.619, p = .001); and a positive association of depression with IA (coef = 0.881, p = .021).
The inclusion of subcortical volumes in the ADHD risk model did not increase model fit (AUC) with ODD but did increase model fit without ODD by 0.04; in the IA severity model with ODD, fit (R2) was not increased but in the IA severity model without ODD, fit was increased by 0.05; and in the H/I severity model with ODD, fit (R2) was increased by 0.04 and in the H/I severity model without ODD, fit was increased by 0.08 (see Figure S3 for the baseline model).
Discussion
Data in the current study indicate that relative to age- and sex-adjusted brain development norms, atypical amygdalar volume is associated with ADHD risk and severity in adolescents. Specifically, above and beyond the effects of the symptoms of common comorbidities including anxiety, depression and ODD as well as motion, reduced bilateral amygdala volume is associated with ADHD at-risk status and, above the effects of the symptoms of anxiety and depression as well as motion, reduced bilateral amygdala volume is associated with inattention and hyperactivity/impulsivity severity. These findings have conceptual and methodological implications.
Findings involving the amygdala are consistent with recent results of a cross-sectional mega-analysis showing smaller amygdala volumes in individuals with ADHD relative to without ADHD (Hoogman et al., 2017) and specifically suggest that above and beyond anxiety, depression, and ODD severity, individual differences in amygdala volume predict ADHD risk. Although the current study was not designed to address the functional significance of the obtained structural findings, it is noteworthy that the amygdala has been associated both with fear conditioning, and processing of negative and positive emotions (Baxter & Murray, 2002) as well as with reinforcement sensitivity (Baxter & Murray, 2002; Haber & Knutson, 2010; McClure et al., 2004; Zald, 2003). ADHD is also associated with greater negative (Healey et al., 2011; Martel & Nigg, 2006; Nigg et al., 2002; Singh & Waldman, 2010; White, 1999) and positive (Bunford et al., 2021; Forslund et al., 2016) affectivity and with atypical reinforcement sensitivity (Bunford et al., 2023; Hámori et al., 2023).
Of note, that the current findings were observed even when accounting for the effects of comorbidities underscores the utility of biological measures for predicting clinical outcome above and beyond more cost-effective alternatives (e.g., clinical and demographic measures) (Ball et al., 2014). Although inclusion of subcortical volumes systematically increased model fit, as expected, additional explained variance by subcortical volumes was relatively small. Data from large samples (which arguably generate more reliable/ less variable effect sizes) indicates that the association between biological measures and psychopathology indices is likely quite modest (Bunford et al., 2021; Kujawa & Burkhouse, 2017; Yancey et al., 2016), underscoring the clinical utility of constructing multi-method models, as we have done here, to improve estimation of outcomes and understanding of pathways across levels of analysis. Further, we also accounted for the effects of motion and ADHD and non-ADHD pharmacotherapy. Regarding accounting for the effects of motion, as expected, SNR-derived metrics, especially SNR of cerebrospinal fluid, were consistent predictors of ADHD, indicating greater motion-related artifacts in adolescents at risk for ADHD. Regarding accounting for the effects of ADHD and non-ADHD pharmacotherapy, although effect sizes were weaker in models without adolescents prescribed ADHD and non-ADHD pharmacotherapy, the main trends observed in primary analyses were replicated in these reanalyses, indicating the observed effects are neither driven nor distorted by pharmacological treatment.
Methodologically, these results show that recently published brain chart reference standards can be applied to address, in specific populations, clinically informative, focused and specific questions. Following others (Rutherford et al., 2023), we compared findings obtained using normative modeling to those obtained using raw data and essentially, results were replicated. Of note, amygdala effects in presence of ODD were only supported when using normative modeling, indicating a possible advantage of this novel approach relative to traditional approaches in identifying biological markers.
Directions for Future Research
Our aim was to examine whether the normative modeling approach performs as well (comparably well) as a standard pipeline, in a relatively simple model (association between brain volume and ADHD risk and severity). As normative modeling of brain morphology is a rather novel approach, its application, especially when fitting it to an entirely new dataset is nontrivial. We believe that demonstrating that normative modeling can perform at least as well as raw modeling is an important first step in this line of research, before applying normative modeling to address more complex questions (e.g., association with functioning, prognosis, response to treatment).
We examined whether individual differences in brain volume predict ADHD risk status and severity. Although there is considerable utility in focusing on subclinical manifestations of the disorder, given emerging evidence that subclinical levels are associated with functional, negative outcomes (Rádosi et al., 2023) and may better capture such associations in girls whose ADHD is often more subtle (Takács et al., 2023), it will be important to determine whether current findings replicate across different classification thresholds, e.g., in predicting ADHD diagnostic status.
When ODD was included in the models as a covariate, amygdala volume was generally not significantly associated with ADHD risk or symptoms (except for one normative model with all participants). Conversely, when the effects of ODD were free to vary (i.e., it was not included as a covariate), amygdala volume was strongly associated with ADHD. The extent to which the herein observed pattern of results is driven in part by comorbid ODD symptomatology will also be necessary to uncover, e.g. in direct assessment of moderation.
In the current study, we applied regularized logistic and linear regression to uncover the effects of subcortical ROI volumes on ADHD risk status. Although predictive modeling of ADHD risk status with an independent test set or using nested cross validation could provide further insight into the underlying relationships in our data and potentially provide a tool for predicting ADHD risk status from new structural MRI scans, our dataset was deemed too small for such analyses. Nevertheless, this could be an important next step for our research.
Related, in the current study, we assessed the effects of the total cranial volume and of individual subcortical regional volume. Our dataset was too small to assess the effects of cortical regional volumes in the data-driven fashion that we employed in this study without making the estimation of effects unstable. This is another relevant next step for future research.
