Background
Foot and ankle pain that results from trauma, musculoskeletal disease or a neurological condition is highly prevalent and a significant burden at both the personal and healthcare provider level [
1]. The role of the foot as the primary load bearing structure and the ankle as the most distal large joint in the lower limb kinetic chain means that pain and subsequent functional disability at these sites can have a dramatic effect on an individual’s mobility, activity levels, and therefore independence [
2]. In chronic conditions such as arthritis, foot and ankle pain resulting from disease activity can be hugely debilitating and lead to a significant reduction in quality of life [
3].
Understanding seasonal and long term changes in foot and ankle pain incidence is of considerable importance, and identifying these patterns may aid in the planning and provision of care. For example, it is a common belief that cold and damp winter weather makes joints stiffer and more painful [
4], and increased activity levels in the summer may lead to a higher incidence of overuse injuries [
5,
6].
Over the past two decades the growth of the internet has made information relating to health and medicine more widely accessible [
7]. Individuals now regularly search online for medical information, and this can be for a number of reasons, including: a desire for reassurance, to develop a greater understanding, or to obtain a second opinion [
8]. Prior consultation with a medical professional before carrying out these types of searches is particularly low in people under 36 years of age [
8]. This type of search traffic data is potentially a rich source of information for healthcare researchers looking to analyse trends relating to different medical conditions [
9]. The utility of this data has only just begun to be explored; however notable results have been reported, for example, in using the data to attempt to detect outbreaks of influenza [
10].
To facilitate access to this type of data, Google has provided a tool called Google Trends (
http://www.google.com/trends/). This tool allows access to internet search patterns by analysing a portion of all web queries on the Google search website and its affiliated sites. The relative volume of searches using particular terms over time can be obtained and downloaded for further analysis. A recent systematic review of the literature reported that 70 healthcare related studies using Google Trends or its forerunners have been published since the tool’s launch in 2008, with interest increasing rapidly [
9].
Our aim in this study was to explore this internet search data for insights into trends in search volume for terms related to foot and ankle pain, selected specific conditions, and common treatments over the past 10 years. We hypothesized a priori that there may be seasonal components to these time series data, including differences between winter and summer search volumes, and explored overall trends.
Methods
This study did not directly involve human participants therefore specific ethical approval was not required. The checklist provided in Nuti et al. [
9] was used as a basis for search strategy reporting. We used the Google Trends web interface to obtain search traffic data for a number of terms relating to foot and ankle pain and its treatment based on lay search terms. Our search terms were limited to English language only, and searches were carried out on 2014/12/15. All query categories were used. A full list of the search strings used has been included in Table

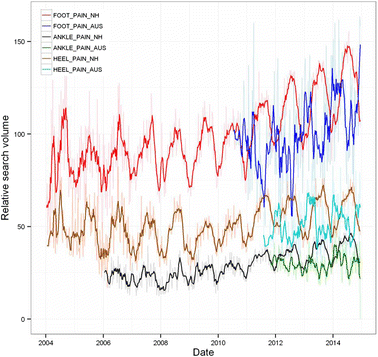

1. To capture data relating to general foot and ankle pain we used three strings: FOOT PAIN, ANKLE PAIN and HEEL PAIN. We included PLANTAR FACIITIS and ANKLE SPRAIN terms as examples of common, pain causing foot and ankle conditions for reference, but it should be noted that this was not intended to be a comprehensive analysis of internet searches relating to these conditions or any other potential condition that could lead to lower extremity pain. Such an analysis is beyond the scope of the current study and in our opinion would be better explored at condition specific level with similarly specific hypotheses developed

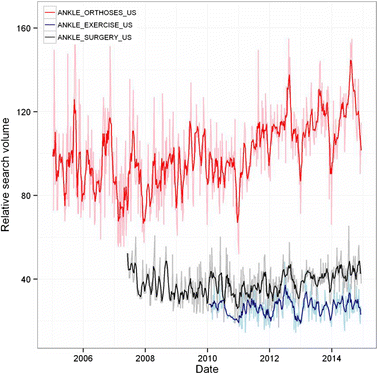

a priori. We also included search terms that related to common treatment options for foot pain, these were: FOOT ORTHOTICS, INSOLES, and FOOT SURGERY; and for ankle pain: ANKLE ORTHOSES, ANKLE EXERCISES, ANKLE STRETCHES, and ANKLE SURGERY.
Table. 1
Search strategies
Pain | FOOT PAIN | “foot pain” + “painful foot” + “feet pain” + “painful feet” + “sore foot” + “sore feet” |
| ANKLE PAIN | “ankle pain” + “painful ankle” + “painful ankles” + “sore ankle” + “sore ankles” |
| HEEL PAIN | “heel pain” + “painful heel” + “painful heels” |
Specific conditions | PLANTAR FACIITIS | “plantar faciitis” |
| ANKLE SPRAIN | “ankle sprain” + “ankle sprains” + “sprained ankle” + “sprained ankles” |
Foot treatments | FOOT ORTHOTIC | “foot orthotic” + “foot orthotics” + “foot orthosis” + “foot orthoses” |
| INSOLE | insole + insoles |
| FOOT SURGERY | “foot surgery” + “surgery on feet” + “surgical operation foot” + “surgical operations foot” + “surgical operations feet” |
Ankle treatments | ANKLE ORTHOSES | “ankle orthosis” + “ankle orthoses” + “ankle orthotic” + “ankle orthotics” + “ankle foot orthosis” + “ankle foot orthoses” + “ankle foot orthotic” + “ankle foot orthotics” + “ankle splint” + “ankle splints” + “ankle brace” + “ankle braces” |
| ANKLE EXERCISES | “ankle exercise” + “ankle exercises” + “exercises for ankle” + “exercises for ankles” + “ankle strengthening” + “strengthening ankle” + “strengthening ankles” + “strengthen ankle” + “strengthen ankles” |
| ANKLE STRETCHES | “ankle stretches” + “ankle stretch” + “stretches for ankle” + “stretches for ankles” + “stretch ankle” + “stretch ankles” + “stretching ankle” + “stretching ankles” + “ankle stretching” |
| ANKLE SURGERY | “ankle surgery” + “surgery on ankle” + “surgery on ankles” + “ankle operation” + “ankle replacement” + “surgical operation ankle” + “surgical operation ankles” |
For each search term, weekly search volumes from 2004/01/10 to 2014/12/15 were downloaded in .csv format for the United Kingdom, United States of America, Canada and Australia as the major English speaking nations in the northern and southern hemispheres. It should be noted that Google trends provides only relative data, not the absolute number of searches for each term. To assess the relative volume of search terms in the same group (Table
1), combined worldwide datasets were also downloaded.
Data analysis
Data processing and statistical analysis was carried out using R (V3.1.1) [
11] and the forecast package [
12]. All figures were produced using the ggplot2 package [
13]. To allow full reproducibility of these results, the original .csv data files and analysis scripts have been included as Additional file
1.
To obtain a single time series for the northern hemisphere, weighting factors based on population and mean internet penetration for the time period 2004–2012 [
14] were applied (see supplementary materials for further details). Data from individual countries were included from the time point where consistent data, defined as an absence of large variations to and from zero in the time series, were being collected. At least 3 years of consistent, weekly data were required for a time series to be included and taken forward for analysis.

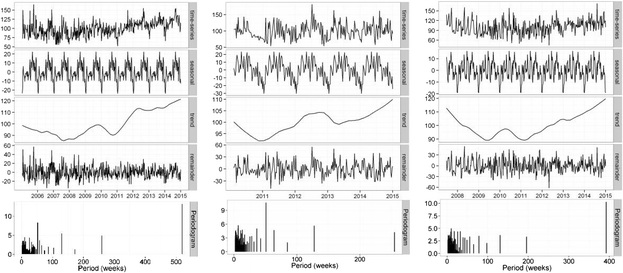

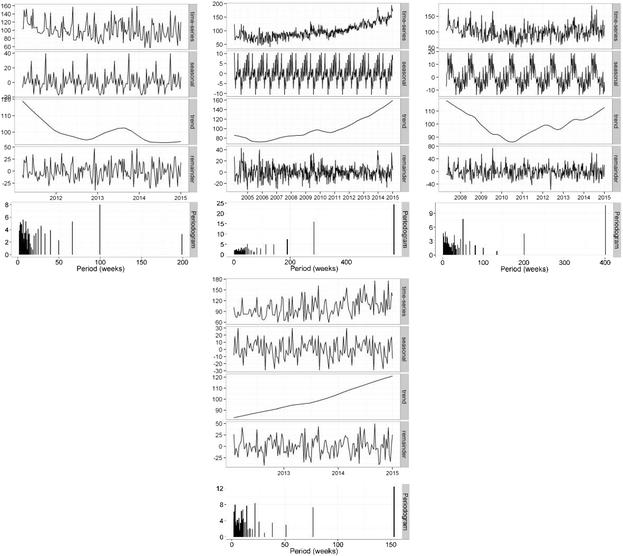

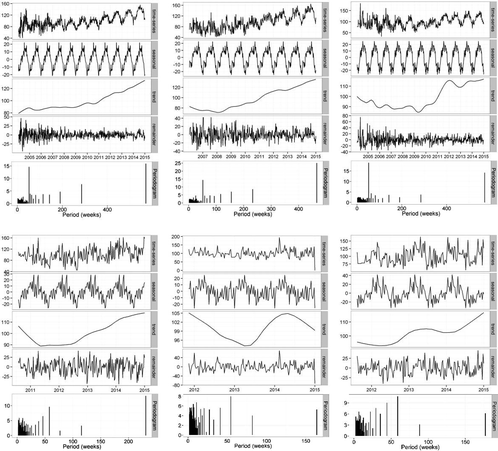

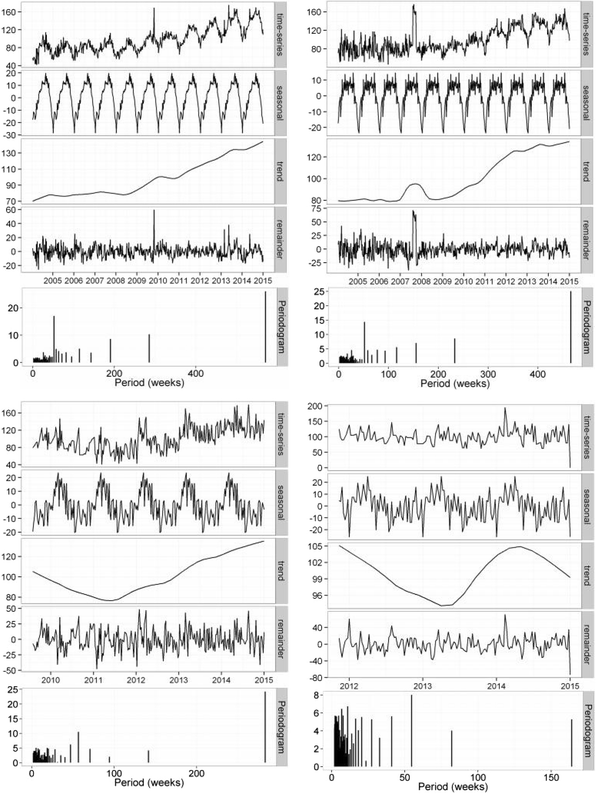

Seasonal decomposition of each search term time series was initially carried out by local regression (LOESS) to allow visual inspection of the data components. The Mann-Kendall trend test was use to detect overall trends significantly larger than the variance in the data for each search term (α = 0.05). To determine if there were significant seasonal components, an exponential smoothing state space model with Box-Cox transformation, autoregressive-moving-average errors, trend and seasonal components (TBATS) was fitted to the data. Periodograms were produced to identify key seasonal cycles. In addition, two-way Wilcoxon signed-rank tests were applied to determine if there were significant differences between search volumes in the summer (June-September) and winter (November-February) months (α = 0.05). Winter/summer months were reversed for Australian data.
Discussion
We carried out a time series analysis of internet search terms relating to foot and ankle pain and found a number of notable trends and seasonal effects in the data. To our knowledge, this is the first study to investigate online search behaviour in relation to musculoskeletal pain. Our results suggest that online search volumes for foot and ankle pain related terms increase in the summer months. There could be a number of reasons for this seasonal pattern of increases. Perhaps the most plausible is that the summer months is when people tend to be most active, and take part in sporting and leisure activities where overuse and acute injuries are more likely to occur [
5],[
6]. Although evidence is lacking, it is commonly thought that cold and damp weather can cause joints to become stiffer and more painful in chronic conditions [
4], however we did not see any reflection of this in our analysis. It is possible that the confounding influence of factors such as activity may hide such effects, and a more specific analysis may be required to test this hypothesis. Interestingly, the seasonal effects seen for general pain terms were most strongly reflected in the FOOT SURGERY terms, and to a lesser extent ANKLE ORTHOSES terms. The remaining treatment terms failed to show significant annual seasonal effects. Whether this is a reflection that a significant percentage of the searches relate to transient foot or ankle pain that resolves quickly and naturally without needing an intervention or further healthcare attention requires further investigation.

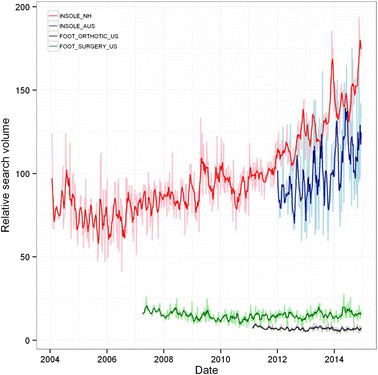

Increasing individual trends should be interpreted with caution as these likely relate to the increasing number of internet users seen over the study period. However, of note is the finding that the search frequency for the INSOLE terms roughly doubled over the time period studied, while FOOT ORTHOTIC terms decreased in relative popularity. This may suggest that, while for some clinicians and researchers these refer to distinct types of devices, “insole” is the preferred umbrella-term for all of these types of in-shoe interventions within the general population.
We attempted to use data from Australia to validate findings from the northern hemisphere, where data from a much larger sample population was being studied. However the time series available for many of the terms was too short to perform any meaningful analysis. Despite this, in all but one case (ANKLE SPRAIN) the Australian data tended to support the findings from the northern hemisphere countries, giving us some confidence in the robustness of these findings.

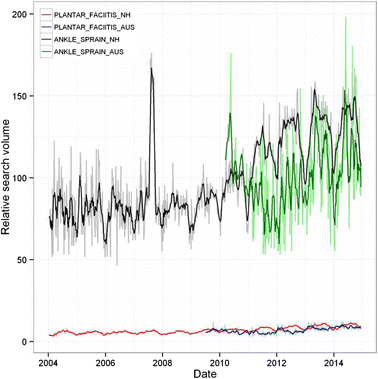

To as great an extent possible we used lay terms in our search strings. Arguably, an exception to this would be PLANTAR FACIITIS, and this may largely explain the 20-fold difference between PLANTAR FACIITIS and ANKLE SPRAIN. It is likely that a non-trivial proportion of searches for HEEL PAIN terms would relate to a condition that would be clinically defined as plantar faciitis. Epidemiological data in the literature for these conditions suggest that the relative incidence of plantar faciitis is around 5 times greater than ankle sprain [
15,
16], although the more chronic nature of plantar faciitis may skew this somewhat. Additionally, search strings were limited to English language only, and while Google Trends does account for common misspellings, we did not attempt to capture the full range of potential misspellings that could occur. Google Trends is based on data from a subset of the population, those who use the Google search engine. A 2014 survey on internet use found that in the United States, 56 % of those over 65 years of age used the internet, compared to 97 % of those aged between 18 and 27 [
17]. This potentially biases our sample in age groups who may have a higher prevalence of foot and ankle pain [
1]. It should also be noted that the Google Trends tool is also updated regularly. An example of this occurred in 2011, when regional coverage was improved, and this may explain the limited data from Australia up until this point. We have included all the data used for our analyses in the supplementary material to this paper to account for any further changes to the tool.
For healthcare providers, these time series data relating to foot and ankle pain and its treatments may correlate with the number of cases of foot and ankle problems attending clinics, and by looking at the seasonal and regional trends seen here, could potentially allow more efficient allocation of resources to suit predicted volumes of patients during different months. Clinicians and researchers should be aware of the strong interest in medical information relating to foot and ankle pain on the internet. It should also be noted that the quality of the information relating to medical problems that is available online is highly variable. It has been shown that medical information found online even on reputable websites is often poorly supported by the evidence, emphasising the need for greater efforts in providing evidence based sources [
18].
Future work will look to expand this approach to other sites of musculoskeletal pain, and to access additional sources of data to determine how these findings reflect clinical demands at a condition-specific level.
Funding
ST is funded through the People Programme (Marie Skłodowska-Curie Actions) of the European Union’s Seventh Framework Programme (FP7 2007–2013) under REA Grant Agreement No. PIOF-GA-2012-329133. The funders had no input into the design, analysis, or decision to publish.
Competing interest
The authors declare that they have no competing interests
Authors’contributors
ST devised the study, wrote the statistical analysis plan, cleaned and analysed the data, and drafted and revised the paper. He is the guarantor. JW monitored data collection, analysed the data, and drafted and revised the paper.
