Using an implementation science approach to implement and evaluate patient-reported outcome measures (PROM) initiatives in routine care settings

Patient-reported outcome and experience measures (PROMs/PREMs) are well established in research for many health conditions [1, 2], but barriers persist for implementing them in routine care. PROMs are reports of how patients feel and function that come directly from individuals with a health condition [3], while PREMs assess patient experiences of treatment (e.g., satisfaction with care) [4]. When used during care delivery, PROMs improve communication between clinicians and patients about symptoms and quality of life [5, 6], which may improve service use and survival [1, 2, 7‐11]. Reviewing PROMs with patients during clinical visits can also increase satisfaction with care scores [12]. PREMs are commonly used as performance metrics to evaluate the quality of care delivered [13], but PROM-based performance metrics are a growing trend [14]. Before clinical benefits can be realized, however, PROMs/PREMs need to be implemented into care delivery.

There is wide variation in how PROMs/PREMs are implemented [15, 16] and in the resulting impact on processes and outcomes of care [1, 2, 5, 6]. Prior research has documented the limited uptake of PROMs/PREMs and barriers to their implementation in routine care settings [17‐21]. Implementation science (IS) offers a potential way forward, but its application has been limited for PROMs/PREMs. IS is the systematic study of methods to integrate evidence-based practices and interventions into care settings [22, 23]. IS aims to make the process of implementation more systematic, resulting in a higher likelihood that health innovations like PROMs/PREMs are adopted in clinics.

Part of IS’s appeal are the theories and frameworks guiding the translation process from research to practice [24‐26], but there are dozens focused on health care [26]. IS frameworks and theories draw on diverse academic disciplines including psychology, sociology, and organizational science, and therefore differ in assumptions about the primary drivers of implementation processes and potential explanatory power. Frameworks identify and categorize key barriers and enablers, while theories tend to have more explanatory power because they specify practical steps in translating research evidence into practice. IS is still an emerging field, and descriptive frameworks are the most common, as outlined in Nilsen’s typological classification of theoretical approaches [24].

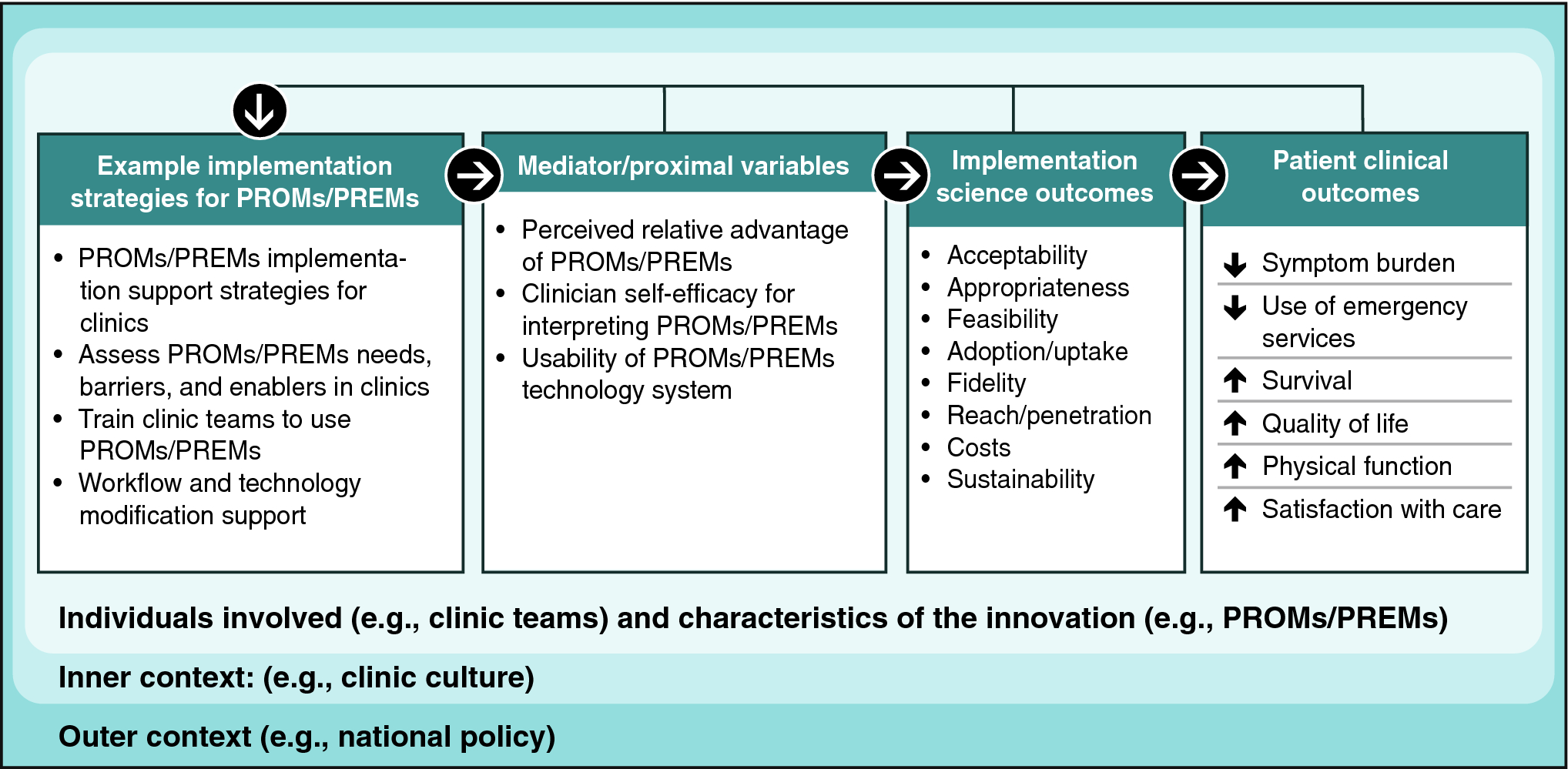

In addition to explanatory features, IS frameworks and theories may also provide a menu of potential solutions to barriers called “implementation strategies.” These strategies are actions purposively developed to overcome barriers that can be tailored to the local context [27, 28]. Figure 1 shows how implementation strategies are used to influence proximal mediators such as clinician self-efficacy for using PROM/PREMs, which impact IS outcomes for PROM/PREM implementation (e.g., Proctor’s outcomes [29]), and in turn improve clinical and health services outcomes.

Our paper is organized into three sections. First, we describe and compare IS frameworks used in four case studies. We then summarize cross-study findings on the barriers, enablers, implementation strategies, and evaluation approaches. We also derive example metrics specific to evaluating PROM/PREM implementation initiatives to support standardization. Finally, we consider the implications of these findings for future research and practice.

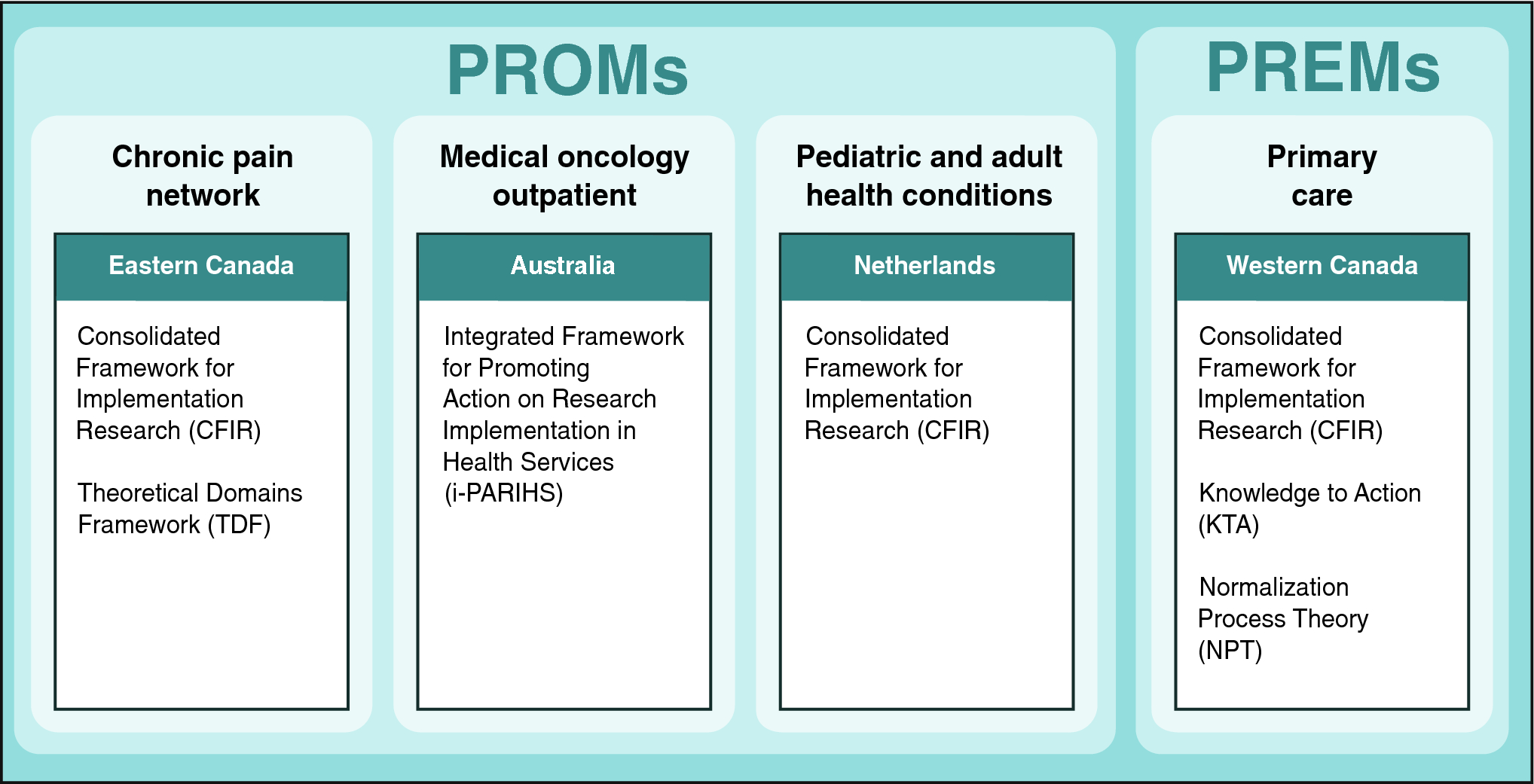

We compare four case studies of PROMs/PREMs implementation (see Fig. 2) that draw on established IS frameworks or theories (each case study has a stand-alone paper in this issue: [30‐33]). Three case studies implemented PROMs for monitoring symptoms, psychosocial functioning, and/or health-related quality of life: (1) pain clinics in Canada [30]; (2) oncology clinics in Australia [31]; and (3) pediatric/adult clinics for chronic conditions in the Netherlands [32]. The fourth case study is planning PREMs implementation in primary care clinics in Canada [33].

Across case studies, five well-established IS frameworks or theories widely used in health care settings were applied (Table 1).

Three case studies [30, 32, 33] used the Consolidated Framework for Implementation Research (CFIR) [34, 35]. CFIR was developed from constructs identified in earlier frameworks and is widely used [35]. Its 39 constructs are organized into five multilevel domains: the intervention itself (e.g., PROMs/PREMs), outer setting (e.g., national policy context), inner setting (e.g., implementation climate in clinics), characteristics of individuals involved (e.g., clinic teams), and the implementation process. CFIR has a tool available to match barriers to implementation strategies (available at www.​cfirguide.​org), which was used prospectively for planning PREMs implementation [33] and retrospectively for assessing implementation of a PROMs portal for chronic conditions [32].

The case study in an integrated chronic pain care network [30] combined CFIR with the Theoretical Domains Framework (TDF) [36‐38] to identify barriers and enablers for implementing PROMs. TDF is grounded in a psychology perspective on behavior change at the clinician level. Fourteen domains describe constructs such as clinician knowledge, skills, and perceptions.

The case study in oncology clinics [31] used the integrated Promoting Action Research in Health Services (i-PARIHS) framework [39‐42]. i-PARIHS’ key construct of facilitation¹ is the “active ingredient” driving successful implementation, for example, an implementation support person working with clinics to identify and overcome barriers. In its most recent development [40], i-PARIHS’ three multilevel predictors include: (1) the innovation (ways stakeholders perceive and adapt innovations like PROMs/PREMs to align with local priorities); (2) recipients (how individuals and communities of practice influence uptake of new knowledge in clinics); and (3) context (inner context such as clinic culture and outer context such as the wider health and policy system). The i-PARIHS facilitator’s toolkit [42] offers pragmatic guidance for supporting implementation in clinics.

The case study implementing PREMs in primary care clinics [43] combined CFIR with the Knowledge to Action (KTA) model [43, 44] and Normalization Process Theory (NPT) [45, 46]. KTA is a process model describing practical steps or stages in translating research into practice, with core concepts of knowledge creation and action. The action cycle is most applicable to PROM/PREM implementation, with steps for identifying the problem and selecting and enacting appropriate knowledge for addressing the problem.

Normalization Process Theory (NPT) [45, 46], developed from sociological theory, describes mechanisms of how an innovation becomes routinized. NPT’s focus is on what people actually do, rather than their intentions, by focusing on how the “work” of an innovation (such as using PROMs/PREMs in clinical practice) becomes normalized. NPT outlines four mechanisms driving implementation processes: coherence/sense-making (What is the work?), cognitive participation (Who does the work?), collective action (How do people work together to get the work done?), and reflexive monitoring (How are the effects of the work understood?).

Table 1 shows that there is some overlap of core constructs across implementation frameworks and theories and some unique features. Frameworks and theories typically emphasize particular constructs. For example, the i-PARIHS framework highlights the role of a facilitator (implementation support person) as a core construct. The oncology case study [31] that used i-PARIHS was the only one to employ a dedicated facilitator across the full implementation cycle; although the three other case studies did use implementation support teams for shorter durations. The case study in pain clinics [30] had a priori identified clinician engagement with PROMs as a key issue and chose TDF as their framework because it describes barriers specifically at the clinician level.

The case study at the pre-implementation stage for PREMs in primary care [33] drew on KTA and NPT, which both emphasize steps in the implementation process instead of describing barriers. As we later suggest, implementation theory that hypothesizes mechanisms of change (such as NPT) may be a useful guide for developing overarching strategies across stages of implementation. An overarching theoretical approach could then be supplemented with consideration of context-specific barriers and enablers for PROMs/PREMs through multilevel frameworks such as CFIR or i-PARIHS.

Frameworks described in the prior section are based on a foundation of barriers and enablers. The distinction between whether a concept is labeled as a barrier or enabler is a judgment based on the framework or theory being used and stakeholder perceptions [22, 28]. The label of barrier or enabler shapes the implementation approach considerably. For example, if lack of PROM/PREM technology is labeled as a barrier, an implementation strategy such as developing software with stakeholder input will be used. If existing technology is labeled as an enabler, the implementation team can tailor training and examples to the specific software.

Table 2 shows that the four case studies consistently described implementation barriers of technology, stakeholder uncertainty about how or why to use PROMs/PREMs, stakeholder concerns about negative impacts of PROM/PREM use, and competing demands from established clinical workflows.

For technology, PROMs/PREMs not being integrated within electronic health record systems was repeatedly identified as a major barrier. Additional technology barriers included PROM collection systems that were difficult to use or access, and third-party systems requiring a separate login.

Stakeholder knowledge and perceptions were also identified as consistent barriers. Clinicians noted a knowledge barrier of being unsure how to interpret PROM responses and discuss them with their patients. There were also concerns that PROM use would lead to increases in workload and visit length, and the potential to decrease satisfaction with care. Roberts’ oncology clinic case study [31] also encountered clinics with prior negative experiences with innovations.

Clinical workflow barriers included entrenched workflow, competing priorities during limited clinic time, and unique workflow in every clinic, suggesting implementation strategies that work in some clinics or settings may not work in others. Less common barriers included resource gaps for treating and referring patients for symptoms detected by PROMs (oncology clinic case study) and confidentiality concerns for PROMs/PREMs (pain clinic case study).

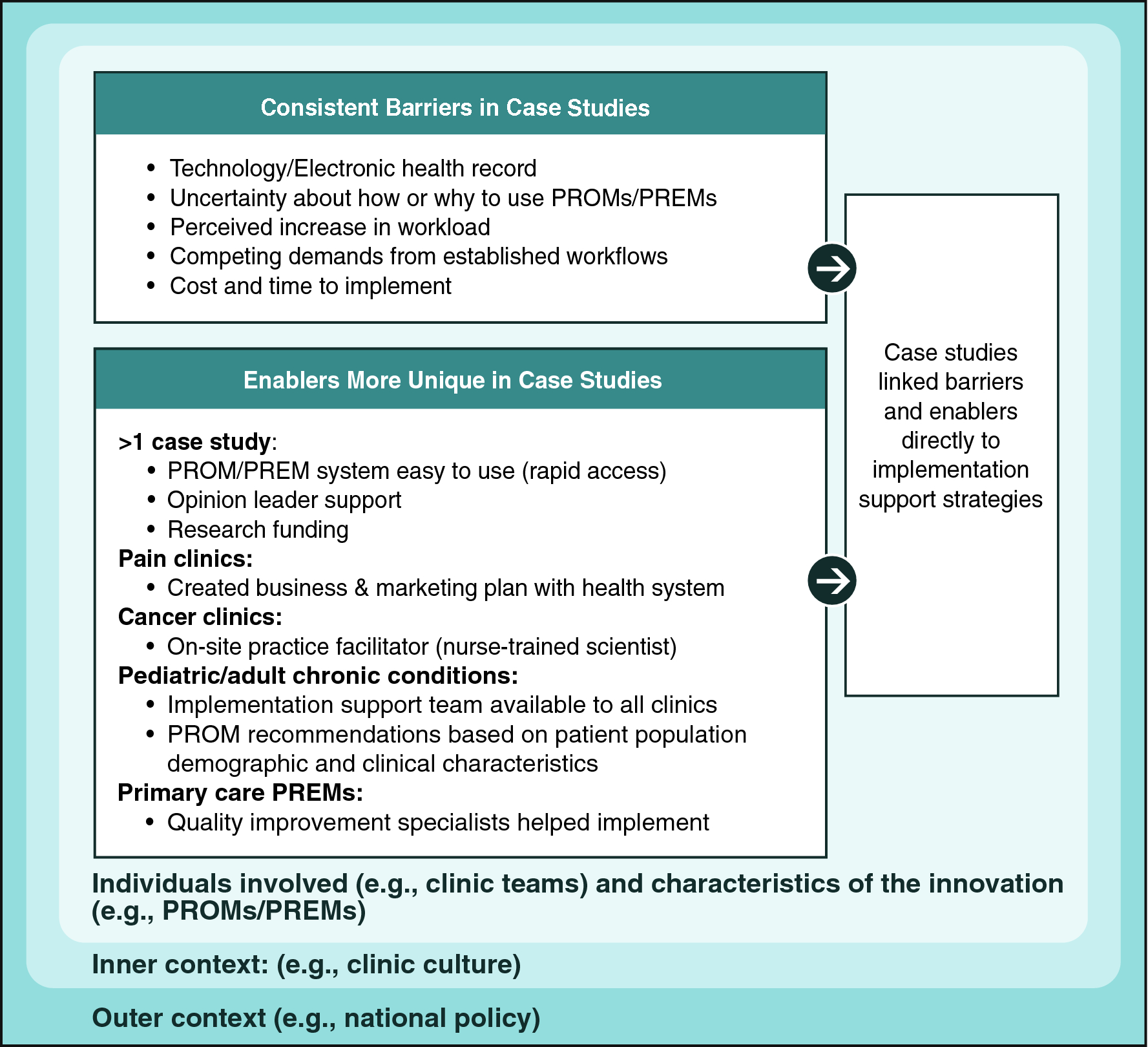

Figure 3 shows that enablers varied more across case studies than barriers, suggesting that solutions were being tailored to each clinic and its resources (inner context). Common enabling factors included designing PROM/PREM technology systems to be easy for clinicians to use and enabling automatic access to PROM results for use at point-of-care. More unique enablers capitalized on local resources, such as peer champions, availability of a nurse scientist to provide long-term implementation support in an oncology clinic, and a research team working with a health system to create a pain PROM business plan and move resources (including money) to clinics. Two case studies were enabled with research grant support.

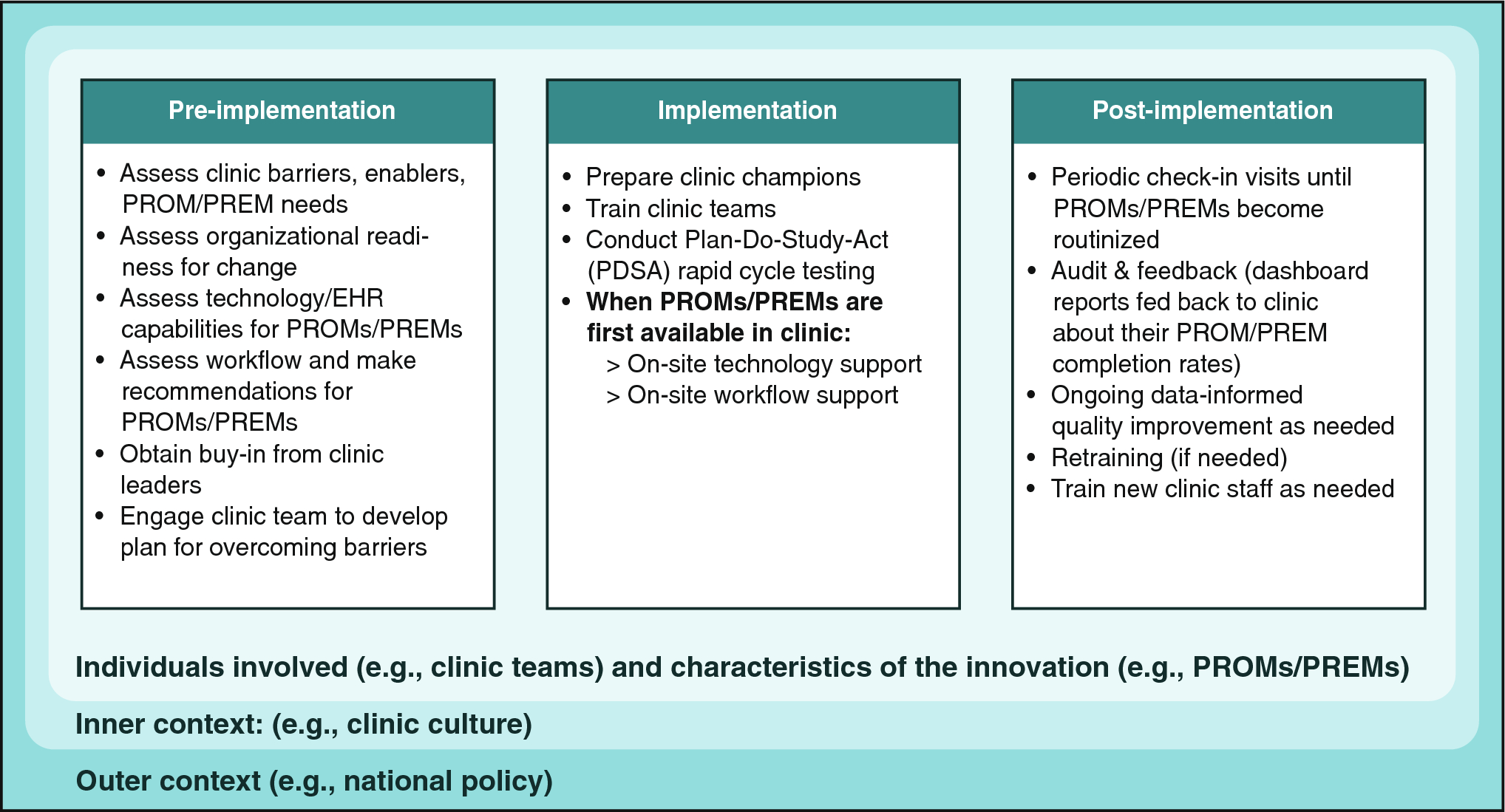

Case study authors matched PROM/PREM barriers and enablers encountered in clinics directly to specific implementation strategies. Figure 4 shows that implementation strategies changed during pre-implementation, implementation, and post-implementation stages and were influenced by contextual factors. During pre-implementation, case studies engaged stakeholders and clinic leaders, and assessed barriers, enablers, PROM/PREM needs, and workflow. They also engaged clinic teams to develop tailored implementation strategies. During the implementation stage, all case studies trained clinic teams on using and interpreting PROMs/PREMs and provided onsite assistance for technology and workflow. Support ranged from low intensity with one training session and a few support visits to high-intensity facilitation conducted onsite and long term (> 6 months). The pain clinic case study [30] also developed strategies to increase clinic teams’ perceptions of acceptability of PROMs through a media campaign for clinic teams. Post-implementation, all case studies continued contact with clinics, typically through visits. Three case studies also used audit and feedback where dashboard reports were fed back to clinics about their PROM/PREM completion rates. If completion rates were low, additional support was provided to clinics to identify and overcome new or ongoing barriers, suggesting that post-implementation support may be key to sustaining PROM/PREMs in clinics.

Three case studies [30‐32] used aspects of Proctor’s IS outcomes [29] to evaluate PROMs and one case study [33] used the RE-AIM framework [47, 48] to evaluate PREMs, but the degree of application and operationalization were inconsistent. Table 3 shows that Proctor’s IS framework and RE-AIM have overlapping concepts for reach/penetration, adoption, and sustainability/ maintenance. Unique to Proctor’s list are acceptability, appropriateness, feasibility, fidelity, and cost [29]. Unique to RE-AIM are effectiveness and “implementation” [47, 48].

Case studies used a range of 2–6 evaluation constructs, typically obtained with qualitative methods. Given the use of Proctor’s outcome framework [29] in three out of four case studies, it may be a viable method to standardize PROM/PREM evaluation. Its constructs of acceptability and appropriateness of PROMs/PREMs for a specific clinic were the most common evaluation outcomes, and were assessed with stakeholder interviews. The remaining six Proctor outcomes were used less frequently, in part due to their applicability in later stages of implementation.

To support standardizing evaluation metrics, we derived Table 4 to describe how Proctor’s IS outcomes [29] can be evaluated specifically for PROM/PREM implementation initiatives. Table 4 makes an important distinction that evaluation metrics are different for perceptions of the innovation (PROMs/PREMs) vs. implementation effectiveness. For example, innovation feasibility for PROMs/PREMs may involve a pilot study of tablet vs. paper administration, but an example metric for implementation feasibility is the percentage of clinics completing PROM/PREM training.

Table 4 shows that the constructs of adoption, reach/penetration, fidelity, and sustainability can be measured in terms of engagement rates and milestone achievements at the clinic level. For example, innovation fidelity can be assessed as the percentage of clinicians who review PROMs/PREMs with patients as intended. The FRAME framework [49] can be used for reporting adaptions to interventions/innovations. However, implementation fidelity can be assessed as the extent to which recommended implementation strategies were adhered to and how and why clinics adapted implementation strategies. The Fidelity Framework developed by the National Institutes of Health’s Behavioral Change Consortium [50] recommends reporting on five implementation fidelity domains (study design, training, delivery, receipt, and enactment). Assessment of innovation costs may include personnel and clinic and patient time necessary for completing and reviewing PROMs/PREMs that can be assessed via observation or economic evaluation methods [51]. Implementation strategy costs can be assessed through tools such as the “Cost of Implementing New Strategies” (COINS) [52].

As Table 4 illustrates, collecting evaluation data requires careful planning and resource allocation at the start of PROMs/PREMs implementation efforts, but evaluation data are critical for gauging success, ongoing monitoring, and making improvements. Figures 1, 2, 3 and 4 also show that the implementation process and evaluation metrics are influenced by contextual factors (inner and outer context, individual involved, and characteristics of the innovation), which can be assessed to help explain evaluation results. Reviews of IS scales [53, 54] include questionnaires assessing contextual factors, but they may lack psychometric and validity evidence. An alternative is to assess contextual factors with stakeholder interviews.

This paper makes several important contributions to the literature. Our comparison of four case studies enabled us to identify commonalities and differences in barriers, enablers, implementation strategies, and evaluation methods for implementing PROMs/PREMs across a range of patient populations and care settings. Below we describe lessons learned, recommendations, and areas in need of future research.

In four case studies, IS frameworks were used to systematize barriers to PROM/PREM implementation, to develop implementation support strategies for clinic teams, and to evaluate implementation effectiveness. Barriers to PROM/PREM implementation were remarkably consistent across patient populations and care settings, suggesting that implementation strategies addressing contextual factors may have wide-reaching impact on implementation effectiveness. Flexibility in promoting clinic-specific enablers was also highlighted, as was a need for consistency in evaluating PROM/PREM implementation effectiveness. Theoretically guided studies are needed to clarify how, why, and in what circumstances IS approaches lead to successful PROM/PREM integration and sustainability.
