Mapping EQ-5D-3L from the Knee Injury and Osteoarthritis Outcome Score (KOOS)

With the growing emphasis on the patients’ involvement in clinical decision-making, patient-reported outcome measures (PROMs) are increasingly used in the clinical settings to assess the effects of diseases and their treatments from the patient perspective [1]. In addition, generic preference-based PROMs, such as EQ-5D, have an important role in the assessment of health-related quality of life (HRQoL) and in calculating quality-adjusted life years (QALYs) for use in health economic evaluations [2]. QALYs combine HRQoL and survival into a single metric and is a common outcome measure applied in cost-utility analyses. However, clinical studies mostly use condition-specific PROMs which cannot be used to estimate QALYs [3]. In these situations, it is common to use statistical techniques (known as “mapping” or “cross walking”) to convert the responses on a condition-specific PROM to a generic preference-based PROM using datasets of patients that have responded to both measures simultaneously [2, 3]. While mapping studies are criticized for underestimating uncertainty and overprediction of poor health states, these are to some extent a sign of an inappropriate mapping model or inappropriate use and not a feature inherent in mapping [3]. While data on preference-based PROMs are preferable, mapping is a viable alternative when these data are not available [4].

The Knee Injury and Osteoarthritis Outcome Score (KOOS) is a commonly used knee-specific PROM intended for use in people across the lifespan with knee injury including anterior cruciate ligament (ACL) injury that can result in post-traumatic osteoarthritis [5]. The KOOS contains 42 items covering five subscales: pain, other symptoms, function in daily living (ADL), Function in sport and recreation (Sport/Rec) and knee-related quality of life (QoL) [5]. All items have five possible answer options ranged from 0 (no problems) to 4 (extreme problems). A normalized score (100 indicating no symptoms and 0 indicating extreme symptoms) is calculated for each subscale. To our best knowledge, there is no mapping model to estimate EQ-5D-3L values from the KOOS. To address this knowledge gap, we aimed to develop a mapping model to derive EQ-5D-3L values from the KOOS for use in cost-utility analyses among adult patients with ACL injury.

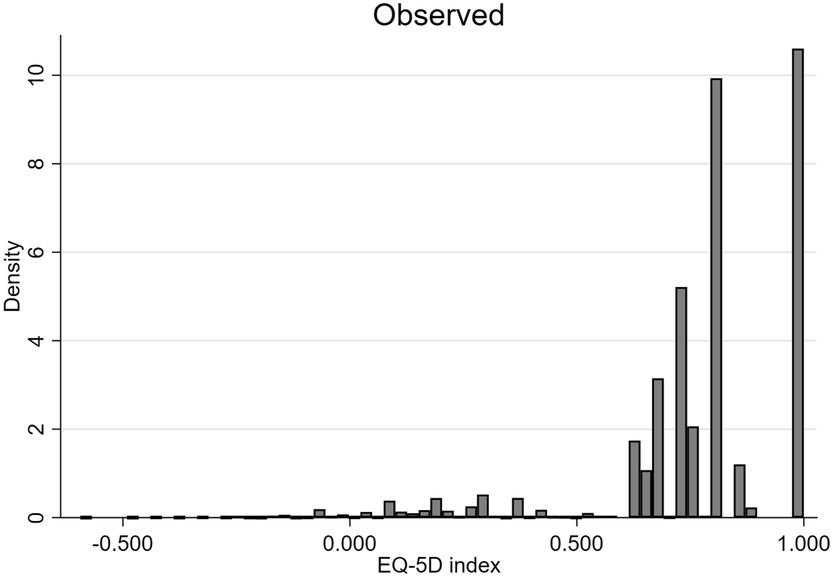

The patient sample had a mean (standard deviation) age of 29.1 (10.0) years and 42.3% were women at the date of ACL operation. The proportion of responses with some/extreme problems on EQ-5D-3L dimensions ranged from 1.6% in self-care to 68.2% in pain (Table 1). Across KOOS subscales the worst and best scores were reported for KOOS-QoL and KOOS-ADL, respectively. A total of 145 out of 243 possible EQ-5D-3L health states were observed. The full health (health state “11111”) was the most frequent health state (27.3%, Fig. 1) followed by health states “11121” (25.1%) and “11122” (11.0%). The Spearman rank correlation between EQ-5D-3L values and KOOS subscales ranged from 0.45 (Symptoms) to 0.56 (ADL) for pre-operation and from 0.66 (Symptoms) to 0.75 (QoL) for post-operation observations.

The estimates and full variance–covariance matrix of the preferred models based on individual subscales, KOOS₅ and KOOS₄ for three classes of models (linear regression, response mapping and beta-mixture) are reported in Supplementary Tables 4–12. In all three classes of models, the optimal models were those based on individual KOOS subscales.

In the optimal linear regression model (Supplementary Table 6), improvement in KOOS-Pain, Symptoms, ADL and QoL subscales scores (indicating better function) were associated with increase in EQ-5D-3L index score, even though for Symptoms the increase was at a lesser rate. The EQ-5D-3L improved up to a KOOS Sport/Rec score of 15, then it declined up to 50, and improved again once KOOS Sport/Rec exceeded 50. Older age and being female were associated with better EQ-5D-3L scores.

In the generalized ordered probit model, the inclusion of specific explanatory variables for each EQ-5D-3L dimension showed a better performance than the inclusion of the same explanatory variables for all EQ-5D-3L dimensions. The interpretation of the coefficients from the generalized ordered probit model is not straightforward and the inclusion of the squared and square root terms complicates this even further. In the optimal generalized ordered probit model (Supplementary Table 9), for the EQ-5D-3L mobility, self-care and usual activities, being female increased the probability of being at level 1 (“no problems”) and decreased the probability of being at level 3 (“severe problems”), all else equal. The opposite was true for the EQ-5D-3L pain dimension.

Our optimal beta-mixture model (Supplementary Table 12) was a three-component model including the gap between full health and the next feasible EQ-5D-3L value with a probability mass at full health (convergence was a problem with a four-component model). The three components centred on EQ-5D-3L values of 0.75, 0.29 and 0.71 with component membership probability of 0.88, 0.09 and 0.03, respectively. Different explanatory variables were included in predicting the components mean, probability of component membership and probability of being in full health. The excel calculator in Supplement can be used to estimate EQ-5D-3L values using the optimal linear, beta-mixture and generalized ordered probit models.

In the full sample, while the linear regression provided the closest estimate to the observed mean (including a constant in a linear regression ensures this is the case), it had larger MAE and RMSE than the response mapping and mixture models (Table 2). In addition, across the range of disease severity measured by the KOOS₅ scores, the response mapping and mixture model outperformed linear regression in terms of all summary measures and importantly this was more profound (the highest proportional improvements in the MAE and RMSE) at the extremes of the distribution of disease severity. Compared with the response mapping model, the beta-mixture model estimated closer mean to the observed mean in overall and across the range of the KOOS₅ score except those < 25 (most severe). For all models the magnitude of MAE and RMSE rose with the severity of the disease. The results were generally similar when we measured disease severity by the KOOS₄ scores (Table 3).

Moving from the lowest (< 25) to the highest (≥ 85) level of KOOS₅ score was associated with 0.785 change in EQ-5D-3L values in the observed data. The corresponding value was 0.743, 0.782 and 0.772 for linear, response mapping and beta-mixture model, respectively, indicating a difference of 0.038 between models.

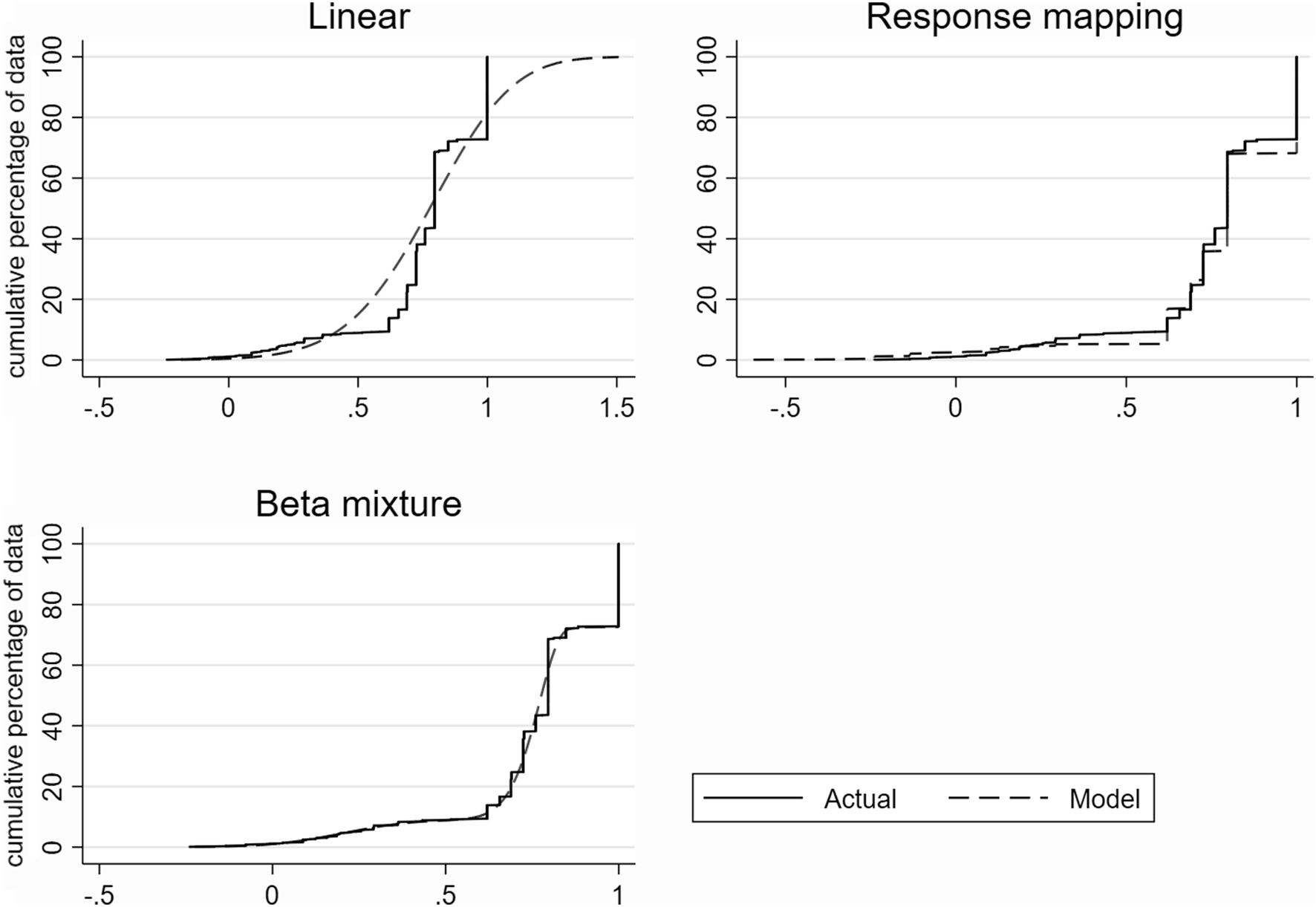

The distribution of simulated data showed that linear regression clearly failed to account for main characteristics of the original data (Table 4; Fig. 2). While linear regression generated EQ-5D-3L values that fall way outside the feasible range (− 0.594 to 1.0), neither the response mapping nor the beta-mixture model suffer from this limitation by design. In contrast to the beta-mixture model, the response mapping take into account the discrete nature of the EQ-5D-3L data. The data generated by the beta-mixture model more closely resemble the original data.

This is, to our knowledge, the first study to develop mapping models to predict EQ-5D-3L values from the KOOS. This facilitates the application of KOOS in cost-utility analyses in ACL studies when the directly collected EQ-5D-3L data are not available. The overall MAE (0.099 to 0.104) and RMSE (0.149 to 0.151) found in our study were comparable to those generally reported in the mapping literature (from 0.0011 to 0.19 for MAE, and from 0.084 to 0.20 for RMSE) [3]. Our results also confirmed that linear regression might not be appropriate for mapping. The three-component beta-mixture model fit the data generally better and generated simulated data that more closely resembled the observed data.

Our results showed that regardless of econometric technique, the models based on the individual KOOS subscales had better performance than those based on the average of the subscale scores (i.e. KOOS₅ and KOOS₄). However, individual scores are not always available to map from and models using average scores are needed. It should be noted that previous studies suggested that the KOOS-ADL subscale might have poor content validity for young adults with ACL injury [20], however its inclusion in our study improved the predictive ability of our mapping models.

In addition to linear regression, we applied two other statistical techniques based on recent advances in modelling EQ-5D data: beta-mixture model, and generalized ordered probit model. Both these techniques outperformed linear regression overall and across the range of disease severity particularly at the extremes of the distribution of disease severity. This is in agreement with recent evidence suggesting that the characteristics of EQ-5D-3L data make linear regression inappropriate for mapping [11, 12, 21]. A recent systematic review found that the proportion of mapping studies using solely linear regression declined from 49% in 1997–2011 to 13% in 2014–2016 [4]. Some studies reported small differences in predictive ability of linear compared to other models [22‐24] including the response mapping and mixture models [14]. However, these studies solely relied on the observed mean EQ-5D-3L value and dismiss the data generating process of these models and its importance for simulation-based cost-effectiveness analyses. Furthermore, while due to regress toward mean, linear regression might have better performance in overall, it generally has poor performance compared with other models at the extreme of disease severity [21]. Moreover, it is important to bear in mind that due to very limited range of EQ-5D-3L data, small differences in prediction errors should not be overlooked [25].

For mixture modelling, we used beta-mixture model which, to our knowledge, has been applied only in one previous mapping study where it marginally outperformed the adjusted limited dependent variable mixture model [16]. Our preferred beta-mixture model was a three-component model including the gap between full health and the next feasible EQ-5D-3L value with a probability mass at full health. While adding more components to beta-mixture model resulted in convergence problem in our study, assessing the performance of models with larger number of components in other data sets is a subject for future research. We have also estimated models with the probability masses at both full health and truncation point, but these had poorer fit compared to our preferred model. This was not unexpected because only 0.6% of the observations were at the EQ-5D-3L truncation point (0.883). It also should be noted that our beta-mixture model was estimated using the UK value set reported by Dolan et al. [26]. Different countries have different value sets and the mapping function given here is not necessarily applicable to all other countries. The response mapping estimates reported here could be used for alternative countries by attaching the corresponding value set in the second step if a better performing mapping function is not available under the additional assumption that the responses to the questionnaire would be similar across different countries.

To our knowledge, the predictive ability of beta-mixture model and response mapping has not been previously compared. Our results demonstrated that while both techniques are appealing for the purposes of mapping, the beta-mixture model performed better across the entire range of disease severity except most severe range in this dataset. However, only 1.3% of observations were at this extreme level of disease severity. In line with this, two previous mapping studies reported that while a limited dependent variable mixture model outperformed the response mapping, this was not universal across entire range of disease severity [12, 25]. Furthermore, the simulated data produced from our preferred beta-mixture model had very close summary statistics to those in the original data. It should be noted that our models were developed in a sample of young patients with ACL injury and hence their application in other populations (e.g. older age groups, patients with other knee problems) should be taken with caution [27].

Developing the first models for mapping EQ-5D-3L from the KOOS, using a large data set covering a wide range of disease severity, and the first comparison of beta-mixture model and response mapping are the main strengths of the current study. However, several limitations of the study should be acknowledged. First, a very small portion of the observations were at the most severe range (< 25) for the KOOS-Pain (0.5%), Symptoms (0.7%) and ADL (0.3%) subscales which might influence the generalizability of our models to data sets with a greater portion of patients at this severe range. However, it should be noted that these subscales are generally less affected compared with Sport/Rec and QoL subscales in patients with ACL injury [28, 29]. For example, in the Multicenter Orthopaedic Outcomes Network cohort [28], the 25th percentile for Pain, Symptoms and ADL subscales were 64, 57 and 74 which are comparable to our data. Second, we were not able to validate our models on an external data set. While some mapping studies randomly split their data into an “estimation” and a “validation” subsamples, this approach is not universally recommended [2, 25]. Mapping models are inputs into subsequent analyses and, therefore, validation should take this second step into account. A mapping model could be used to, either predict a conditional mean, or simulate individual level data from the conditional distribution. We present measures in the paper on which to judge the internal validity of models in those two areas. External validity will be dependent on subsequent analyses and cannot be generalized. Third, we used the data from the Swedish ACL register and the high percentage of nonresponses to the PROMs, particularly in follow up, is of concern. Fourth, measurement error in the predictors is a potential problem in mapping models and remains an area of future research.

To facilitate the use of KOOS in cost-utility analyses, we developed the first set of models to estimate the EQ-5D-3L values from the KOOS using data from adult patients with ACL injury. Our results confirmed inadequacy of linear regression for mapping and also showed that beta-mixture model had superior performance compared with response mapping. Further research is warranted to investigate predictive ability of the estimated models in other data sets or other settings, e.g. different age distribution and other knee conditions.
