Lower limb peripersonal space and the desire to amputate a leg

Approximately 30 years ago, single-cell recordings from the brains of non-human primates showed that there are special neurons in the frontal and parietal areas that respond not only to the presence of an object touching the body (e.g. a ball in contact with a body part) but also to the presence of the object near the body (e.g. a ball looming towards that same body part; Fogassi et al., 1996; Graziano, Yap, & Gross, 1994; Graziano, Hu, & Gross, 1997). These (multisensory) neurons have tactile receptive fields with overlapping visual/auditory receptive fields that extend into space around the body. The product of this neuronal activity is usually described as peripersonal space (PPS; Rizzolatti, Scandolara, Matelli, & Gentilucci, 1981). For example, if one is talking to a friend and a ball rolls towards her foot, she might retract her foot or shift her body so that the ball continues to roll by, not allowing it to intersect with her body and interrupt the conversation. Alternatively, she could choose to interact with the ball, likely kicking it away from the body towards the location it originated. In either case, PPS can be thought of as a probabilistic action space (Bufacchi & Iannetti, 2018), predicting the probability of contact with an object and therefore preparing the action that follows. In other words, PPS is often defined as the zone surrounding the body in which multisensory integration of sensory stimuli (e.g. vision of ball plus prediction of touch) readily transpires and thus these actions occur. PPS functions to defend the body (e.g. by quickly retracting the body part) but also to allow for interaction with the objects around the body (e.g. by kicking the ball), serving as an important interface between the self and the environment (Brozzoli et al., 2012; Serino et al., 2016).

While single-cell recordings looking at PPS have not been conducted in humans, neuroimaging and behavioral studies in healthy people and in patients suggest that we have a similar network which governs the interactions around the body (Bremmer et al., 2001; Canzoneri, Magosso, & Serino, 2012; Huang et al., 2012; Làdavas, di Pellegrino, Farnè, & Zeloni, 1998; Làdavas, Pavani, & Farnè, 2001). As in non-human primates, studies in humans reveal that PPS is body part centered, insofar that the distance from the body in which integration of tactile stimuli with looming visual/auditory stimuli occurs (i.e. the boundary of PPS) depends on body part. That is, PPS boundaries for the head (~ 60 cm), hands (~ 30–50 cm), trunk (~ 65 cm), and lower limbs (~ 75 cm) all reveal unique patterns of multisensory integration (Kandula, van der Stoep, Hofman, & Dijketman, 2017; Serino et al., 2016; Stone, Kandula, Keizer, & Dijkerman, 2018b). These boundaries are usually discerned by asking participants to respond to a tactile stimulus, often a vibration, on one of the body parts while a task-irrelevant visual (visuo-tactile interaction task) or auditory (audio-tactile interaction task) stimulus approaches that body part. Responses time and sensitivity to tactile stimuli are contingent upon the proximity of the visual or auditory stimulus to the body, insofar that tactile reaction times (and tactile detection; Làdavas, di Pellegrino, Farnè, & Zeloni, 1998; Làdavas, Pavani, & Farnè, 2001; Salomon, Noel, & Łukowska, 2017) are enhanced when the looming stimulus enters PPS. Furthermore, there is some recent evidence to suggest that PPS is not linked to the physical body per se, but to the experienced sense of self. Noel, Pfeiffer, Blanke, and Serino (2015b) induced a full-body illusion in participants by stroking their backs while they viewed their bodies (through a head-mounted display) at a location 2 m ahead. PPS was measured using an audio-tactile interaction task, by asking participant to make speeded responses to tactile stimuli on the chest while a task-irrelevant auditory stimulus loomed towards the body. They found that PPS boundaries shifted towards the virtual body, where participants felt they were located, demonstrating that PPS is not bounded to the physical body but to the experienced self.

People with body integrity identity disorder (or BIID) experience a mismatch between the physical body and their experienced self (Blom, Hennekam, & Denys, 2012). These individuals desire amputation or paralysis of a perfectly healthy body part, usually one or both legs. BIID is a non-psychotic condition that manifests before adolescence and in the absence of any apparent brain damage (Blom, Hennekam, & Denys, 2012; Brugger, Lenggenhager, & Giummarra, 2013; First & Fisher, 2012; van Dijk et al., 2013). The neural networks implicated in constructing a coherent representation of the body, especially the legs, seem to be altered in BIID compared to controls (Blom et al., 2016b; Hänggi et al., 2017; Hilti et al., 2013; McGeoch et al., 2011; Oddo-Sommerfeld et al., 2018; van Dijk et al., 2013). Furthermore, those who desire amputation (i.e. the amputation variant, also known as xenomelia; McGeoch et al., 2011), experience a sense of disownership over the affected limb(s), insofar that it does not belong to the body, and should be removed. Those with the paralysis variant (i.e. those who desire paralysis), however, are seemingly unbothered by the presence of legs but report instead that legs simply should not function and/or be felt (Giummarra et al., 2012). It has been suggested that while sensory input is normal in BIID (e.g. like the feeling of touch on the leg), it cannot integrate with a higher-order representation of the body to provide a sense of completeness in one’s body, leading to discomfort and even disownership (Hänggi et al., 2017; Ramachandran, Brang, McGeoch, & Rosar, 2009; Romano, Sedda, Brugger, & Bottini, 2015). Instead, people with BIID report feeling ‘overcomplete’ in the body, and that by structurally (through amputation) and/or functionally (through paralysis) modifying the legs would, counterintuitively, provide a feeling of completeness. Indeed, once an amputation is achieved, BIID is seemingly cured (Blom, Guglielmi, & Denys, 2016a; Noll & Kasten, 2014). In line with this, people with BIID report that their internal identity is that of an amputee or a paralyzed individual (First & Fisher, 2012).

If the limb is not properly inscribed into the body representation (Romano, Sedda, Brugger, & Bottini, 2015), one might wonder whether PPS boundaries around the affected limb are compromised in BIID. At least one piece of evidence speaks to this query. In one study, an experimenter approached the affected and unaffected legs of people with amputation variant BIID with a pin and/or cotton swab (Romano, Sedda, Brugger, & Bottini, 2015). Approaching the unaffected leg led to typical anticipatory skin conductance responses, i.e. an increase in skin conductance as the stimulus got closer. Approaching the affected leg, however, revealed negligible skin conductance responses (SCR), even though the approaching stimulus was in plain sight. What is more, once the stimulus made contact with the affected leg, there was an exaggerated (when compared to the unaffected leg) SCR, as if the brain did not anticipate the looming stimuli. The authors therefore suggested that the affected leg fails to be inscribed into the higher-order body representation and that “such an under-representation might induce a scarce attention for any signal coming from the environment directed to the limb felt as outside from the body representation” (p. 146, Romano, Sedda, Brugger, & Bottini, 2015). We propose that this failure to anticipate contact with the affected leg might also be a reflection of a disturbed, possibly diminished, PPS around the affected leg. Furthermore, individuals with BIID desire to decrease (or completely abolish) the function of their affected limb(s). While no study, to our knowledge, has explored whether BIID is rooted in problems related to action, it is feasible that it could be. As PPS is usually characterized as an “action-space” around the body, exploring it in people with BIID could shed light on this possibility.

Therefore, the aim of the current study was to investigate the shape and size of leg PPS in healthy individuals and in individuals with BIID. Mimicking Stone, Bullock, Keizer, and Dijkerman (2018a) and Stone, Kandula, Keizer, and Dijkerman (2018b), we used a multisensory visuo-tactile interaction paradigm around the feet to assess PPS. Participants were asked to respond to tactile stimuli on their toes, while a task-irrelevant visual stimulus approached the left or right foot. We hypothesized that participants with BIID would have smaller PPSs around the affected (i.e. desired to-be-removed) legs in comparison to the same legs of controls and their unaffected leg. Understanding PPS around the legs in BIID might provide insight into the mechanisms underlying it.

In the current study, we examined peripersonal space (PPS) around the lower limbs in three males with BIID, who desired unilateral amputation of one of their legs, and in 16 healthy male participants. We used a visuo-tactile interaction task to examine the average boundaries of the leg PPS. Participants were asked to respond to a vibration on their left or right toe while a task-irrelevant (animated) visual stimulus approached that same toe. The size of a person’s PPS can be extracted by examining the relationship between the proximity of the visual stimulus and the reaction times to the tactile stimuli. Recently, we found that reaction times to tactile stimuli around the lower limbs are faster when the visual stimulus is within about 75 cm from the toes (Stone, Kandula, Keizer, & Dijkerman, 2018b). We replicate these findings and also show that PPS size is similar for both legs. In addition, we expected to find a diminished PPS around the affected leg (i.e. the leg desired to-be-removed) in BIID participants compared to the corresponding leg of controls and their other (unaffected) leg. In contrast, we found that PPS around both affected and unaffected legs in (three men with) BIID did not differ from that of healthy controls. These findings extend our knowledge about lower limb PPS representations and provide insight into bodily self-consciousness in the rare condition of BIID.

We found that the size of PPS around the lower limbs in our healthy control group was around 70 cm (with a large standard deviation of ~ 25 cm). This finding is in line with our previous report (Stone, Kandula, Keizer, & Dijkerman, 2018b) wherein we looked at PPS around the legs as a whole, rather than for each leg separately. Moreover, this distance is similar to what has been found for PPS around the trunk (Noel et al., 2015a; Serino et al., 2016), which might share PPS with the lower limbs. Furthermore, we found that average PPS boundaries did not differ between the left (~ 67 cm) and right (~ 69 cm) legs nor did the average slopes (which reflects the overall shape of the PPS). This suggests that PPS, at least measured in a task such as this one, is similar for both legs. This is perhaps not surprising as actions made with the lower body are usually made in tandem and do not usually play different roles (except for, perhaps, during a sport). Although, asymmetries in left and right PPS have been revealed before. One study showed that right-handed people have a larger PPS on their left side, whereas left-handed people have a similar PPS for both sides of the body (Hobeika, Viaud-Delmon, & Taffou, 2018). Moreover, people who have had an upper limb amputation have a smaller PPS around the stump than for the intact limb (Canzoneri et al., 2013a). While studies investigating lower limb PPS around the amputated and intact limb are lacking, an unpublished case study from our lab revealed a normal PPS around the intact limb of a lower limb amputee. If PPS was one in the same for both legs (or arms in the aforementioned study), one might expect PPS for the intact limb to reduce in the absence of a limb. Taken together, we show that PPS is similar around each leg in healthy individuals.

We also investigated whether PPS around the legs was different in a small sample of men with BIID. People with BIID, particularly those who desire amputation of a limb, feel like that limb is foreign and does not belong do them, stating that they are ‘overcomplete’ with the limb (e.g. Blom, Hennekam, & Denys, 2012). However, this disturbed feeling of ownership over the body part is not delusional—they know that the part is physically attached to them, functions fine, and is under their control (Brugger, Christen, Jellestad, & Hänggi, 2016). It remains unknown why BIID manifests itself. However, many studies have suggested that it could be due to a (probably congenital) disturbed representation of the body (part) in the brain (Blom et al., 2016b; Hänggi, Bellwald, & Brugger, 2016; Hänggi et al., 2017; Hilti et al., 2013; McGeoch et al., 2011; Oddo-Sommerfeld et al., 2018; van Dijk et al., 2013). This produces a mismatch between how the body physically is and how the individual internally perceives it should be. This results therefore in a desire to abolish the structure and/or function of that part so as to be aligned with the internal representation. What consequences might ensue from this disturbed internal representation? Interestingly, two studies have revealed that the physiological response to stimuli approaching and contacting the affected leg in people with a unilateral lower limb amputation desire is different than for the unaffected leg and the corresponding leg of healthy controls (Brang, McGeoch, & Ramachandran, 2008; Romano, Sedda, Brugger, & Bottini, 2015). That is, approaching (but not contacting) the unwanted (affected) leg showed a reduced skin conductance response (SCR) in comparison to the unaffected leg (Romano, Sedda, Brugger, & Bottini, 2015). What is more, contacting the unwanted leg elicited an exaggerated SCR (compared to the unaffected leg), as if the brain did not predict the touch, even though the approach of the stimulus (pin and cotton swab) was in full view. This failure to ‘predict touch’ on the affected part suggests that PPS around that affected part might be different in individuals with BIID. Specifically, if there is a reduced SCR to stimuli approaching the affected limb, then perhaps PPS is diminished around the part. Analysis of the size of PPS around each BIID limb did not show differences in comparison to controls or to the other leg (at least in 2-LA and 3-RA, as 1-LA’s data were not suitable to fit a sigmoidal curve, see below for discussion). PPS seemed to be overall ‘normal’ for the BIID leg, at least using this type of measurement, suggesting that multisensory integration of stimuli still occurs at a faster rate near the leg compared to farther away, regardless of whether or not the individual desires amputation of that leg.

Our data were seemingly in conflict with these previous studies. In our study, participants were asked to press a button whenever they felt a tactile stimulus on their toes. We used neutral tactile and visual stimuli in our study, while Romano et al. used a neutral (cotton swab) and a noxious (pin) stimulus. While their results did not show an interaction between stimulus type and side (affected leg or unaffected leg), they did show an interaction between stimulus type and whether or not the stimulus contacted (or simply approached) the limb (i.e. contact type). Specifically, noxious stimuli elicited stronger SCR responses to touching (z score of SCR: 0.66) than to simply approaching (z score of SCR: 0.06) the limb (regardless of limb), whereas neutral stimuli did not elicit discrepant SCRs between touching (z score of SCR: − 0.34) and simply approaching (z score of SCR: − 0.37) the legs. Their results, however, are discussed in terms of the interaction between contact type (touch or approach) and side (affected or unaffected) leg, so the results are collapsed across stimulus type. Recently, Bufacchi and Iannetti (2018) argued that PPS size depends not only on the proximity of a stimulus but also on its behavioral relevance to a given action or set of actions. The stimuli in our study were behaviourally relevant to prepare button presses made with the hand, but not for preparing to retract the legs from something threatening, per se. Thus, an investigation of PPS in BIID with threatening (noxious) stimuli instead therefore might provide results more in line with a diminished PPS around the unwanted leg. Moreover, it is possible that our behavioral outcome of PPS (in terms of reaction times) is not sensitive enough to capture differences in PPS around the affected body part in BIID. Future studies should include SCR as an additional measure to address this possibility.

But why would the brain still maintain some form of PPS around a leg that presumably does not belong to the body (or is not properly inscribed into the body representation)? We provide three non-mutually exclusive explanations for this. First, it is possible that the brain treats the leg as a sensorimotor tool. Several behavioral studies have shown that PPS extends when people use a tool, such as a computer mouse (Bassolino, Serino, Ubaldi, & Ladavas, 2010), wheelchair (Galli et al., 2015), a long stick (Canzoneri et al., 2013b), or prosthetic limb (Canzoneri et al., 2013a). For instance, use of a 1-m stick to retrieve target objects for 20 min led to an increase of PPS around the hand, suggesting that PPS changed to incorporate the tool into its representation. Moreover, the size of the stunted PPS around the amputated upper limb ‘expanded’, to some extent, when upper-limb amputees wore a prosthetic hand (Canzoneri et al., 2013a). At the neurophysiological level, visual PPS neurons anchored to the hand in non-human primates elongate after use of a tool to retrieve food (Iriki, Tanaka, & Iwamura, 1996). So perhaps in the case of BIID, because the leg is physically present and processes primary sensory feedback normally, it repurposes itself as a tool, thereby resulting in normal PPS around the leg (even in the absence of ownership over that leg). Since the leg still maintains the possibility to act, revealed by the fact that the individual can still walk and use the limb, this might be sufficient to uphold a PPS representation. For example, passively moving the legs of paralyzed individuals restores PPS around the legs (Scandola et al., 2016), emphasizing the tight link between PPS and action. A second explanation as to why a PPS might be maintained in the absence of ownership is the physical and sensory congruence of the leg with the body. Individuals with BIID who desire amputation of a limb often state that the limb feels foreign to their bodies. In line with this, it has been shown that placing a fake, thereby foreign, arm within the space of the real arm of a monkey elicits multisensory responses in about a quarter of the PPS neurons, suggesting that the visuo-proprioceptive congruence is sufficient to incorporate a limb into PPS (Graziano, Yap, & Gross, 1999; Graziano, Cooke, & Taylor, 2000). So, while the limb might feel like it does not belong to the body in BIID, the peripersonal space network, through its physical appearance and congruent multisensory input might still process the limb as part of oneself. In turn, this facilitates visuo-tactile integration near that part. Moreover, a recent meta-analysis showed that the brain areas responsible for feeling of body ownership and peripersonal space are significantly dissociated for the most part (Grivaz, Blanke, & Serino, 2017). People with amputation variant BIID often report feelings of disturbed body ownership over the limb, so it is possible that the brain areas implicated in BIID are also significantly dissociated from PPS, at least at a functional level. Finally, the leg PPS could be merging with the trunk PPS. When the hand is placed in front of the trunk, it merges with the trunk space (Serino et al., 2016). Similarly, when the hand is placed in front of the face, the hand blink reflex (another common measure of PPS) increases (Sambo, Liang, Cruccu, & Iannetti, 2012). Perhaps in this case, the trunk PPS ‘takes care’ of the leg PPS in BIID. Due to anatomical constraints, it is difficult to displace one leg’s position laterally for a long period of time, making this hypothesis challenging to test. Alternatively, though, it is possible that PPS is simply unimpaired in BIID.

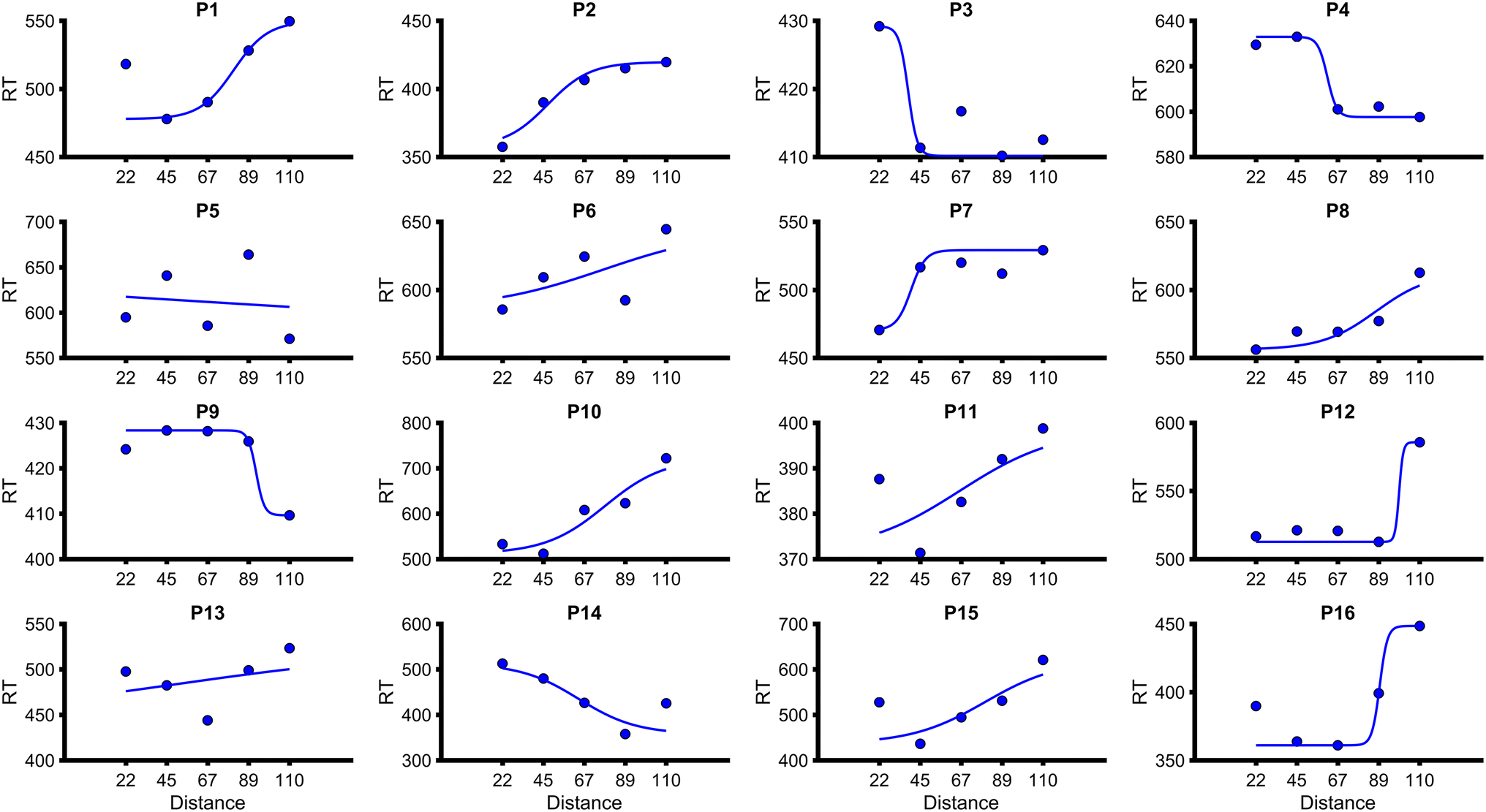

A brief discussion of PPS around the unaffected (normal) leg in our sample of BIID participants is also warranted. In fact, visual inspection of Fig. 4 suggests that the sigmoidal fits for the affected leg appear to be better than for the unaffected leg, contrary to what we expected. One study showed that people with BIID have a more pronounced rubber foot illusion for the foot that corresponds to their affected side (Lenggenhager, Hilti, & Brugger, 2015). In this illusion, participants view a rubber foot being synchronously stroked with their own, unseen, real foot. This conflicting visual and tactile information is reconciled by referring the felt touch to where the touch is seen, leading to a feeling of ownership over the fake foot. Importantly, this illusion involves the integration of visual input of the fake foot with tactile signals on the real foot within the PPS of the body part (Preston 2013). Perhaps visuo-tactile integration around the unaffected leg is less distinct/pronounced for PPS processing (or that attentional mechanisms facilitate visuo-tactile integration for the affected part, e.g. see Aoyama et al., 2012). Moreover, when the visual stimulus was located at its farthest point from the toes, tactile reaction times for the unaffected legs of 1-LA and 2-LA were particularly fast (resulting in disrupted curve fits). One can envision that if these response times mimicked the next closest distance (89 cm), then a PPS pattern would be clear here. The reasons for these quick response times at the start of the trial are unknown, but this pattern of responses was not unlike some of the control participants (e.g. right foot of P-8, P-15, or left foot of P-5, see Figs. 2, 3). It is possible that external factors, such as those related to sustained attention, in our participants might have influenced these reaction times. However, we cannot be certain as we did not measure or account for other variables (e.g. caffeine intake prior to testing, levels of anxiety, arousal level, etc.).

As BIID is such a rare (and secretive) condition, recruitment of sample sizes of homogenous types of BIID sufficient for a group-level analysis is a challenge. Several other studies investigating BIID have faced similar challenges (e.g. Aoyama et al., 2012, n = 5; Brang, McGeoch, & Ramachandran, 2008, n = 2; Bottini, Brugger, & Sedda, 2015, n = 7; van Dijk et al., 2013, n = 5) with many being case studies (Bensler & Paauw, 2003; Braam, Visser, Cath, & Hoogendijk, 2005; Everaerd, 1983; Parsons, Brown, & Sirota, 1981; Storm & Weiss, 2003). While three individuals might not be representative of the entire BIID population, their patterns of behavior are overall similar, particularly for the affected leg. This incites some level of confidence in concluding that PPS is ‘normal’ for the BIID leg. However, this task might be more suitable to use at a group level, rather than at an individual level. Visualization of the individual fits (Figs. 2, 3) of the control sample show large variability in response patterns at the individual level, even between one’s own legs. Studies have shown that several factors can influence the size of one’s PPS, for example, individual differences in brain activity (Ferri et al., 2015a), emotional states such as anxiety (Sambo & Iannetti, 2013) or fear (Ferri et al., 2015b; de Haan, Smit, van der Stigchel, & Dijkerman, 2016; Taffou & Viaud-Delmon, 2014), one’s level of interoceptive accuracy (Ardizzi & Ferri, 2018), anxiety disorders such as claustrophobia (Hunley, Marker, & Lourenco, 2017). However, the desire to amputate a healthy leg does not seem to be one of these factors, at least with use of this current measure.

In conclusion, the size of PPS around the left and right legs is similar in healthy individuals. Moreover, we found that the size (and shape) of PPS around the unwanted leg in BIID did not differ from that of controls and of the unaffected leg. This implies that visuo-tactile processing of neutral stimuli around the leg is normal in BIID. So, while the limb might feel foreign to the individual, the brain still seems to integrate multisensory input near that leg. These results might reflect and reiterate the feeling of ‘overcompleteness’ that people with BIID experience—such that sensory information about the leg is still processed to act with and protect the leg, but the internal experienced representation is that of a congenital amputee. As one of our BIID participants in the current reported stated: “In my head it feels like my right leg is amputated above the knee”. Future research uncovering the foundation of such statements is needed to understand the mechanisms that drive this condition. Specifically, this research should focus on correlating physiological responses (through SCR or neuroimaging techniques, for example) with one’s subjective perception of their BIID.
