This is a sinus bradycardia alternating with junctional escape rhythm. These two different rhythms are independent of each other, and neither is dominant. The sinus rhythm—when conducting—affects the behavior of the junctional rhythm by resetting it, while the junctional rhythm does not influence the sinus rhythm due to the absence of retrograde conduction.
The presence of two different independent rhythms influence each other’s behavior without either being dominant is known as isorhythmic dissociation [1‐3]. Occasionally, a period of synchronisation can occur between these two independent rhythms, which is described by the term ‘accrochage’ [4], as observed in our case.
The prefix ‘iso-’ is derived from the Greek word ‘isos’ meaning ‘equal’ or ‘same’. In the context of isorhythmic dissociation, ‘iso-’ suggests that the two rhythms within the heart that are separate but similar in some way, such as having approximately the same rate (Fig. 1).

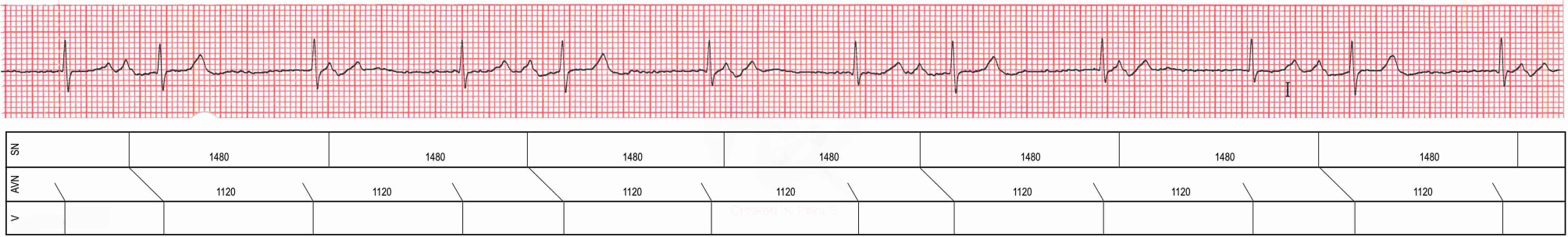

Fig. 1
Lead 1 with a ladder diagram showing regular, slow sinus P waves unaffected by the junctional rhythm—as there is no retrograde P waves—and a regular, faster junctional rhythm being reset by the conducted sinus beats, without influencing its intrinsic rate. SN sinus node, AVN atrioventricular node, V ventricle
B. Delforge, L. Spruyt and B.S.N. Alzand declare that they have no competing interests.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Onze productaanbevelingen
Netherlands Heart Journal
Het Netherlands Heart Journal wordt uitgegeven in samenwerking met de Nederlandse Vereniging voor Cardiologie. Het tijdschrift is Engelstalig en wordt gratis beschikbaa ...
Marriott HJL, Myerburg RJ. Recognition of arrhythmias and conduction abnormalities. In: Hurst JW, editor. The Heart. New York: McGraw-Hill; 1986. pp. 466–8.
2.
Chou T. Electrocardiography in clinical practice. Orlando: Grune & Stratton; 1986. pp. 424–5.
3.
Levy MN, Edflstein J. The mechanism of synchronization in isorhythmic A–V dissociation. II. clinical studies. Circulation. 1970;42:689–99.CrossRefPubMed
4.
Waldo AL, Vitikainen KJ, Harris PD, et al. The mechanism of synchronization in isorhythmic A–V dissociation. Some observations on the morphology and polarity of the P wave during retrograde capture of the atria. Circulation. 1968;38:880–98.CrossRefPubMed
