Gepubliceerd in: Journal of Foot and Ankle Research 1/2014

Open Access 01-04-2014 | Meeting abstract

Cycling performance enhancement and injury prevention use an arch support insole with forefoot wedge

Auteurs: Sai-Wei Yang, Po-Hsun Li, Keh-Tao Liu

Gepubliceerd in: Journal of Foot and Ankle Research | bijlage 1/2014

share
DELEN

Deel dit onderdeel of sectie (kopieer de link)

  • Optie A:
    Klik op de rechtermuisknop op de link en selecteer de optie “linkadres kopiëren”
  • Optie B:
    Deel de link per e-mail
insite
ZOEKEN
Bicycle riding is an increasingly popular recreational and competitive activity, however, the more popular the more biking-related injuries. Most of cycling injuries are musculoskeletal related and caused by a combination of inadequate preparation, inappropriate bike fitting, poor technique, and overuse of prolonged uphill biking. However, after well bike fitting, the injury is still existed, the leg alignment and foot types might be an important factor that mainly causes the muscular injury after an appropriate bike fitting. [13]The purpose of this study was to investigate the efficacy of an arch support insole with/o forefoot wedge in muscle activities and joint loads in order to mimic the musculoskeletal sport injury in cycling and to enhance the performance.
Eleven amateur cyclists were recruited for this study. Vicon motion analysis system, Pedar in-sole foot pressure sensor and Delsys EMG system were used to measure the three-dimensional lower extremity kinematics, kinetics, EMG signal. Each subject was randomly shot four different insoles (Bikepro, off-counter insole with/o arch support and forefoot wedge) with his own bike shoes and bike mounted on a cycle ergometer set to a fixed power of 150W in 75rpm. An One-way ANOVA repeated measurement was used to discriminate the effect of insole material, arch, and forefoot wedge. The results showed that the BikePro significantly increased the ankle varus angle(0.4°, p=0.029), the knee internal rotation (1.4°, p=0.030), and it significantly decreased the ankle abduction angle (1.2°, p=0.047)at the bottom dead center (BDC); reduced the knee sway area by (10.4% , p=0.037). Combined with forefoot wedge, it significantly decreased the ankle varus(0.5° , p=0.005), and increased the ankle abduction angle (1.2°, p=0.005) but without changing the knee trajectory patterns.

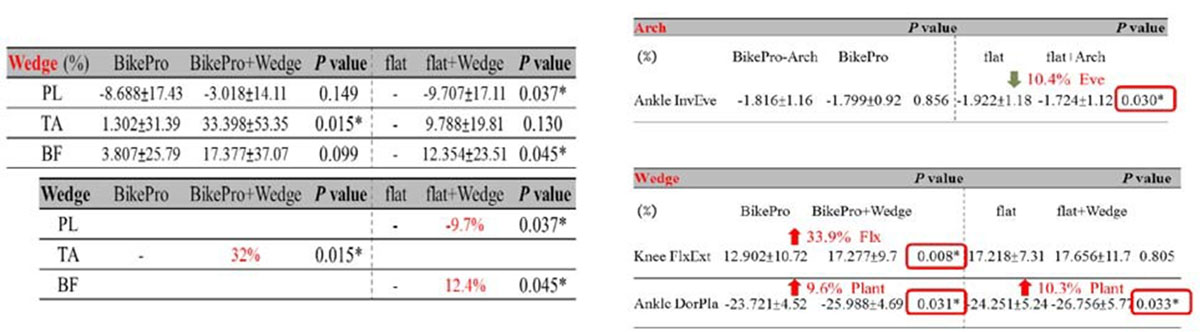

The muscle activation time reduced for the biceps femoris(6.8% , p=0.005) in comparision with the off-counter insoles. Combined with wedge it significantly increased the tibialis anterior EMG peak(32% , p=0.015) as well as the EMG integral (33%, p=0.019), and the integral of biceps femoris was also increased (12.5% , p=0.048) when vs. without the wedge. The arch support decreased the peak knee sagittal plane moment on the same performance, increased efficiency during cycling. With the wedge, the high forces found the hallux region and first metatarsal head region which increased the peak knee and ankle moment (Figure 1)
This study suggests the cyclist shall wear proper sports orthotic with arch support and forefoot wedge according to one’s limb alignment, foot type as well as the forefoot angle, in addition to the bike fitting to reduce the overused musculoskeletal related injury.

Acknowledgment

This study was supported by National Science Council, ROC through the grant NSC 95-2622-B-010-001, NSC96 -2622- E010- 001-CC3, NSC 100-2622-E-010 -002 -CC3
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​4.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. The Creative Commons Public Domain Dedication waiver (http://​creativecommons.​org/​publicdomain/​zero/​1.​0/​) applies to the data made available in this article, unless otherwise stated.
share
DELEN

Deel dit onderdeel of sectie (kopieer de link)

  • Optie A:
    Klik op de rechtermuisknop op de link en selecteer de optie “linkadres kopiëren”
  • Optie B:
    Deel de link per e-mail

Onze productaanbevelingen

BSL Podotherapeut Totaal

Binnen de bundel kunt u gebruik maken van boeken, tijdschriften, e-learnings, web-tv's en uitlegvideo's. BSL Podotherapeut Totaal is overal toegankelijk; via uw PC, tablet of smartphone.

Literatuur
1.
go back to reference Bini RR, Diefenthaeler F, Mota CB: Fatigue effects on the coordinative pattern during cycling: kinetics and kinematics evaluation. J Electromyogr Kinesiol. 2010, 20 (1): 102-7. 10.1016/j.jelekin.2008.10.003.CrossRefPubMed Bini RR, Diefenthaeler F, Mota CB: Fatigue effects on the coordinative pattern during cycling: kinetics and kinematics evaluation. J Electromyogr Kinesiol. 2010, 20 (1): 102-7. 10.1016/j.jelekin.2008.10.003.CrossRefPubMed
2.
go back to reference Callaghan M: Lower body problems and injury in cycling. Bodywork and Movement Therapies. 2005, 9: 226-236. 10.1016/j.jbmt.2005.01.007.CrossRef Callaghan M: Lower body problems and injury in cycling. Bodywork and Movement Therapies. 2005, 9: 226-236. 10.1016/j.jbmt.2005.01.007.CrossRef
3.
go back to reference Sanner W, O’Halloran W: The Biomechanics, Etiology, and Treatment of Cycling Injuries. American Podiatric Medical Association. 2000, 90 (7): 354-376.CrossRef Sanner W, O’Halloran W: The Biomechanics, Etiology, and Treatment of Cycling Injuries. American Podiatric Medical Association. 2000, 90 (7): 354-376.CrossRef
