A meta-analytic review of measurement equivalence study findings of the SF-36® and SF-12® Health Surveys across electronic modes compared to paper administration

The SF-36 is a 36-item self-report survey that assess eight domains of functional health and wellbeing: physical functioning (PF), role limitations due to physical problems (role-physical, RP), bodily pain (BP), general health perceptions (GH), vitality (VT), social functioning (SF), role limitations due to emotional problems (role-emotional, RE), and mental health (MH). Scores can be calculated for each of the eight domains of the SF-36. In addition, two summary scores [physical component summary (PCS) and mental component summary (MCS)] can be calculated from the eight scales [10]. The first version of the SF-36 was developed in the 1980s. The second version (SF-36v2) was subsequently developed as a revision to the first survey, incorporating changes based on additional testing, cross-cultural validation, developing norm-based scoring, and the implementation of missing data estimation algorithms. The SF-12 and SF-12v2 assess the same eight domains as the SF-36, using 12 items of the SF-36 and SF-36v2, respectively. The SF-12 (and SF-12v2) allows scoring of the PCS and the MCS, which have been found to strongly agree with the SF-36-based PCS and MCS scores [11].

Single-item formats of both surveys have been developed for (1) tablets (typically seven inch diameter screen size or larger) and (2) handheld devices (e.g., smartphone or PDA, typically smaller than seven-inch-diameter screen size). In addition to presenting only one item per screen, other minor changes were implemented in the migration to single-item format, including displaying response choices vertically instead of horizontally to better accommodate smaller screens, and changing the instruction to read as “Select the one response” instead of “Mark an X in the one box.” [12].

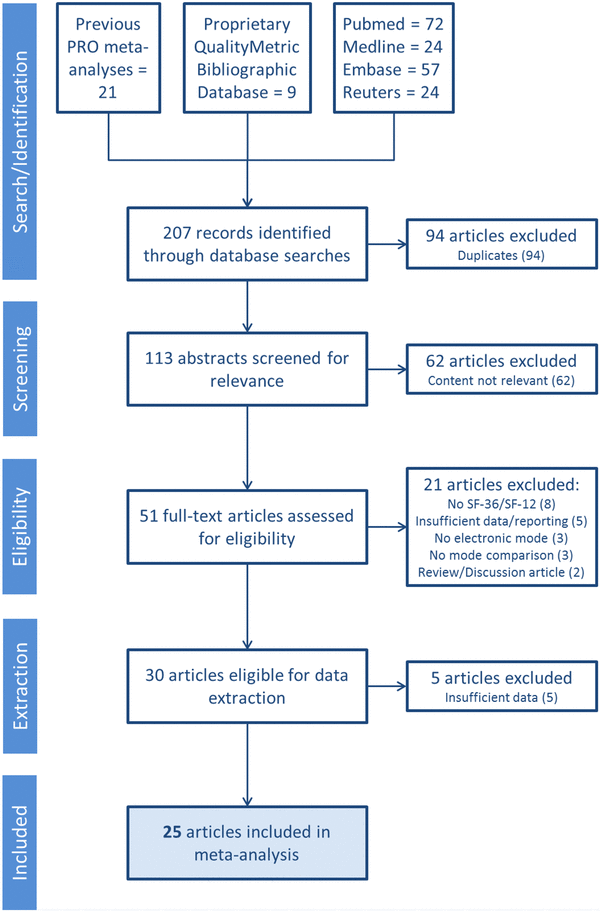

A comprehensive literature search was conducted to identify published manuscripts that examined measurement equivalence between paper and electronic versions of the SF-36 and SF-12 (see Fig. 1 for diagram of selection process). First, databases of medical literature, including PubMed, Embase, Medline, and Reuters were searched for peer-reviewed articles, conference proceedings, or published abstracts that included titles or abstracts that fit the following search string: [SF-36 or SF-12] and [Internet or touchscreen or web or tablet or computer or electronic] and [paper] and [compar* or equiv*] and [questionnaire]. Asterisks were used to capture multiple words that have the same stem (e.g., equivalent, equivalence), and several variants of the terms SF-36 and SF-12 were used to find articles that used different naming conventions for the survey (e.g., SF36, short form 36, SF12, short form 12). The searches were conducted in October 2016 and were not limited by year of publication. Second, the same terms were used to search a bibliographic database maintained by Optum that houses more than 29,000 publications that report using various SF Health Surveys. Third, the three previous meta-analyses were also screened for publications that used the SF-36 or SF-12 to ensure no studies were missed by the first two searches. This combination of search strategies identified 113 unique publications. The reference sections of these 113 publications were also screened to further ensure that no relevant publications were missed, though this did not result in inclusion of any additional articles. To be included in the meta-analysis, studies had to be published in English, contain a sample of adults (≥ 18), use a paper to electronic migration of either the SF-36 or SF-12 (v1 or v2), and test measurement equivalence using one of two indices: (1) mean differences; (2) agreement [i.e., intraclass correlation coefficient (ICC), Pearson product-moment correlation, Spearman rho, weighted kappa]. Studies examining only paper to interactive voice response (IVR) migration were excluded. Sixty-two studies were excluded for not meeting these criteria after abstract review, with an additional 21 articles excluded after full-text review. Five additional articles did not include sufficient statistical information and were consequently excluded during data extraction, resulting in a total of 25 articles for inclusion in the meta-analysis.

Of the 25 studies that met the inclusion criteria discussed above, 15 studies reported differences in means, and 20 studies assessed agreement between administration modes using measures of statistical association such as the intraclass correlation. Separate meta-analyses were performed for analyses of differences between means and analyses of agreement statistics. Ten studies reported mean differences and analyses of agreement and thus were included in both analyses. As different studies analyzed different subsets of domains or summary scores, the number of studies for any given domain or summary score varied across the two analyses (Table 1).

For the analysis of studies reporting differences between paper and electronic versions, we used the SF-36 and SF-12 developer scoring software and related guidelines to calculate scores and convert to norm-based scores (NBS) (mean = 50, SD = 10) based on a US general population normative sample, with higher scores indicating better health-related quality of life (HRQoL). SF-36 and SF36v2 (and SF-12/SF-12v2) were scored according to the appropriate normative sample for that survey. Since differences in NBS are roughly comparable across versions, no distinction between versions was made in the subsequent analyses. For the 15 studies in the mean difference meta-analysis calculation, effect size (ES) estimates were derived for four studies from paper and electronic mean scores, standard deviations, and correlations between modes; three studies provided mean differences, standard deviation of the mean difference, and correlation between modes; three studies provided mean differences and within-subject t values; two provided mean differences and within-subject t and p values. Along with sample size, these statistics allowed for estimation of the pooled standard deviation, making a point estimate and confidence interval (CI) across studies possible. Three studies provided mean scores for the two modes along with the correlation between the modes, but no measure of dispersion. In these cases, a standard deviation of ten (equal to the general population standard deviation) was assigned for both paper and electronic versions. Mode equivalence studies typically use the minimally important differences (MIDs) provided by the developer as the margin of equivalence threshold. For the SF-36, MIDs vary by scale and range from two to four points [13]. To simplify interpretation and not have a different equivalence threshold for each scale, we chose to use the most conservative MID (two points) for all scales. As such, we specified that the 95% CI for each scale should be within a margin of equivalence set at ± 2 points.

For studies investigating agreement between paper and electronic administration, measures of agreement varied by study, and included the ICC, Pearson product-moment correlation (Pearson’s r), and Spearman’s rank correlation coefficient (Spearman’s rho). If multiple measures of agreement were reported the ICC was preferred, in accordance with the ISPOR ePRO Good Research Practices Task Force recommendations, followed by Pearson’s r, and then Spearman’s rho [2]. The meta-analysis of correlation coefficients included ICC from 13 studies, Pearson’s r from seven studies and Spearman’s rho from one. All three coefficients range from − 1 to 1, where higher positive values indicate a higher degree of agreement. Consistent with Gwaltney et al.’s [7] meta-analysis of mode equivalence, our meta-analysis combined different coefficient types together in the same analysis, which were converted to Fisher’s Z. As a correlation coefficient is itself an ES, a meta-analysis synthesizing correlations can be conducted using these coefficients and each study’s sample size to produce a point estimate across studies that reflects the degree of agreement between modes of administration. As criterion for equivalence, we specified that the 95% CI for each scale should be above 0.7, which is a more conservative approach than that recommended by ISPOR ePRO Good Research Practices Task Force [2].

For both analyses, Comprehensive Meta-Analysis Version 3 software was used to aggregate and synthesize studies for each domain and for summary scores separately. Studies were inversely weighted by standard error so that studies with larger sample sizes were given greater weight. A random effects model was used to calculate the pooled ES estimates.

Meta-analytic tests of moderators were performed in the same way as the main analyses specified above, but included respective moderators as between-studies factors to test for differences between moderator-defined studies. Tests of moderators were performed for variables that may reasonably affect mode equivalence if they were available in sufficient numbers per group, defined as more than two studies, considering that a random effects model was used [14, 15]. Both difference and correlation analyses included lag time (categorized into ≥ 24 or < 24 h lag time between administrations) and language of administration (English or other) as moderators. For the correlation analysis only, a sufficient number of studies were available to compare type of electronic mode [computer (desktop or laptop) vs. either tablets or smaller handheld devices].
